5.4 Display console
1. Insert the 5V AC certified power adaptor into the back of the display
console
Note: Place the outdoor sensor array about 5 to 10 feet from the
display console and wait several minutes for the remote sensors to
synchronize with the display console.

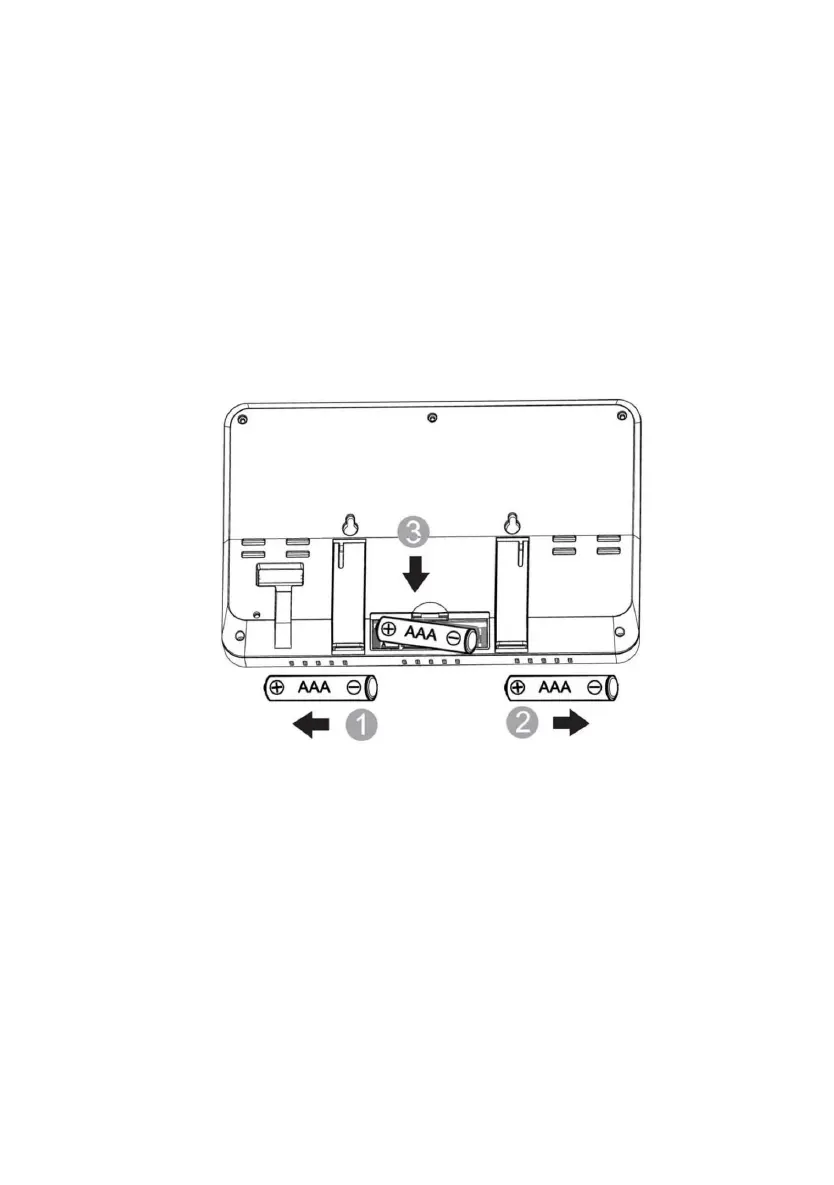

2. Insert 3 AAA batteries into the display consolećPlease insert the
batteries as in the figure 12 below:
Figure 12
Note: The batteries are intended for back-up power only. The
backlight will remain on for 5 seconds when on back up battery
power only. Only when you use the power adapter the back-light
will be continuously on.
3. Keep both sensor and the display console together for 15 minutes
to lock in the sensor signals.
4. Spin the wind cups to simulate wind speed. Take the sensor to the
sink and slowly drip water into the rain bucket to simulate rain.
5. After 15 minutes, follow the mounting instructions for the proper
