3.7 BEGINNING AND END OF THE MONITORING PROCESS
To begin the monitoring process, when the current date and time appear on the display:
& Press: twice and fast

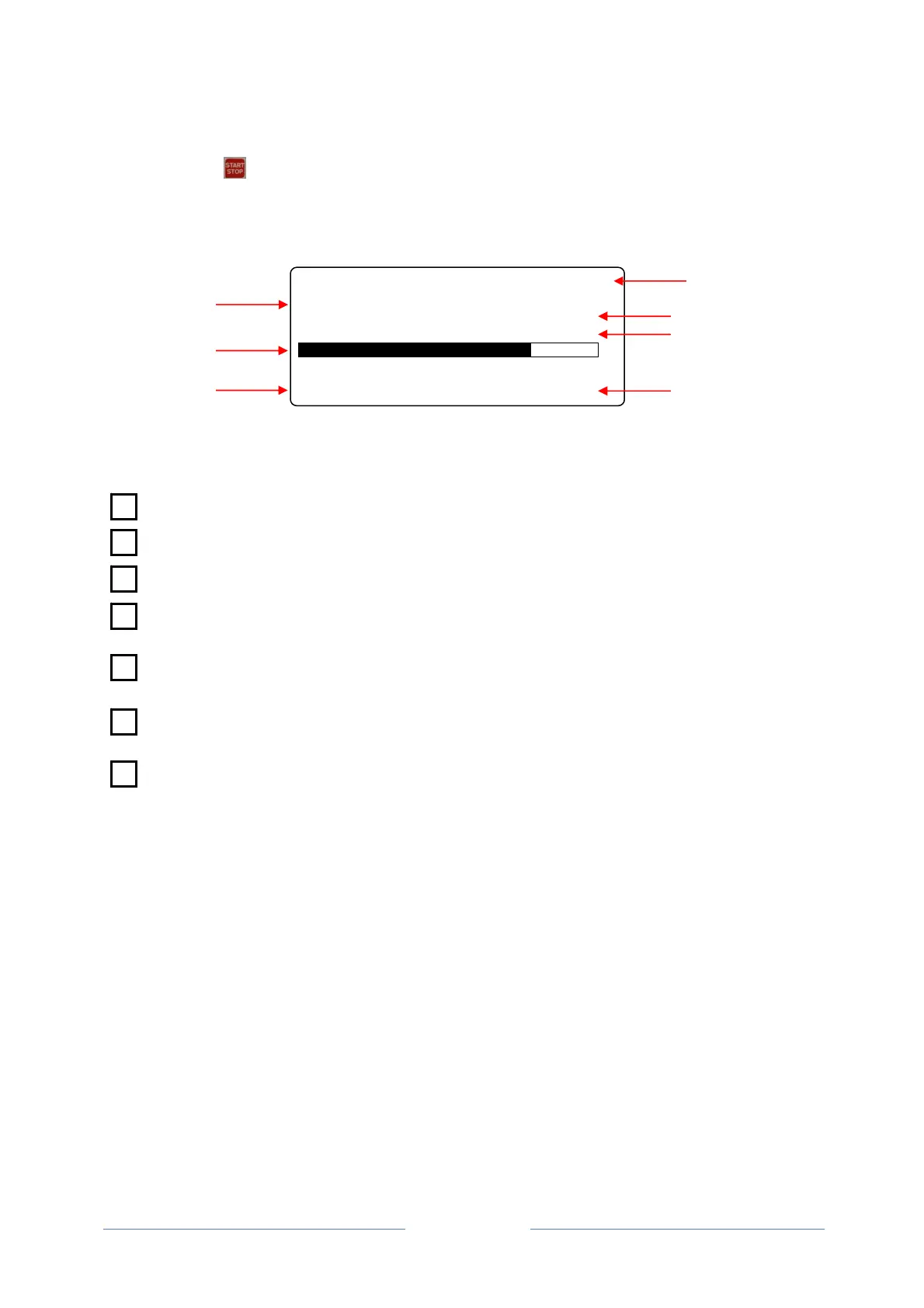

The following screen appears on the display, which corresponds to the data recording mode of
the instrument:
XXXX
Fm: xxxx
REC. x
daN Nor.
XXXX m X.X km/h
where:
F = applied pull (in daN - lbf)
Fm = control pull limit value (in daN - lbf)
REC. = the recording number
Func. = operation mode of the hydraulic motor, normal or reduced, if the rpm reducer of the
motor is activated (only on machines equipped with this device)
A bar that visually indicates the difference between the instantaneous value of the applied
pull and the limit value
D = cable laying distance (in m - ft), which can be either a positive or negative value,
depending on the direction of the cable laying operations
V = cable laying speed (in km/h – ft/min).
1
2
3
4
7
6
5
1
5
6
2
3
4
7
