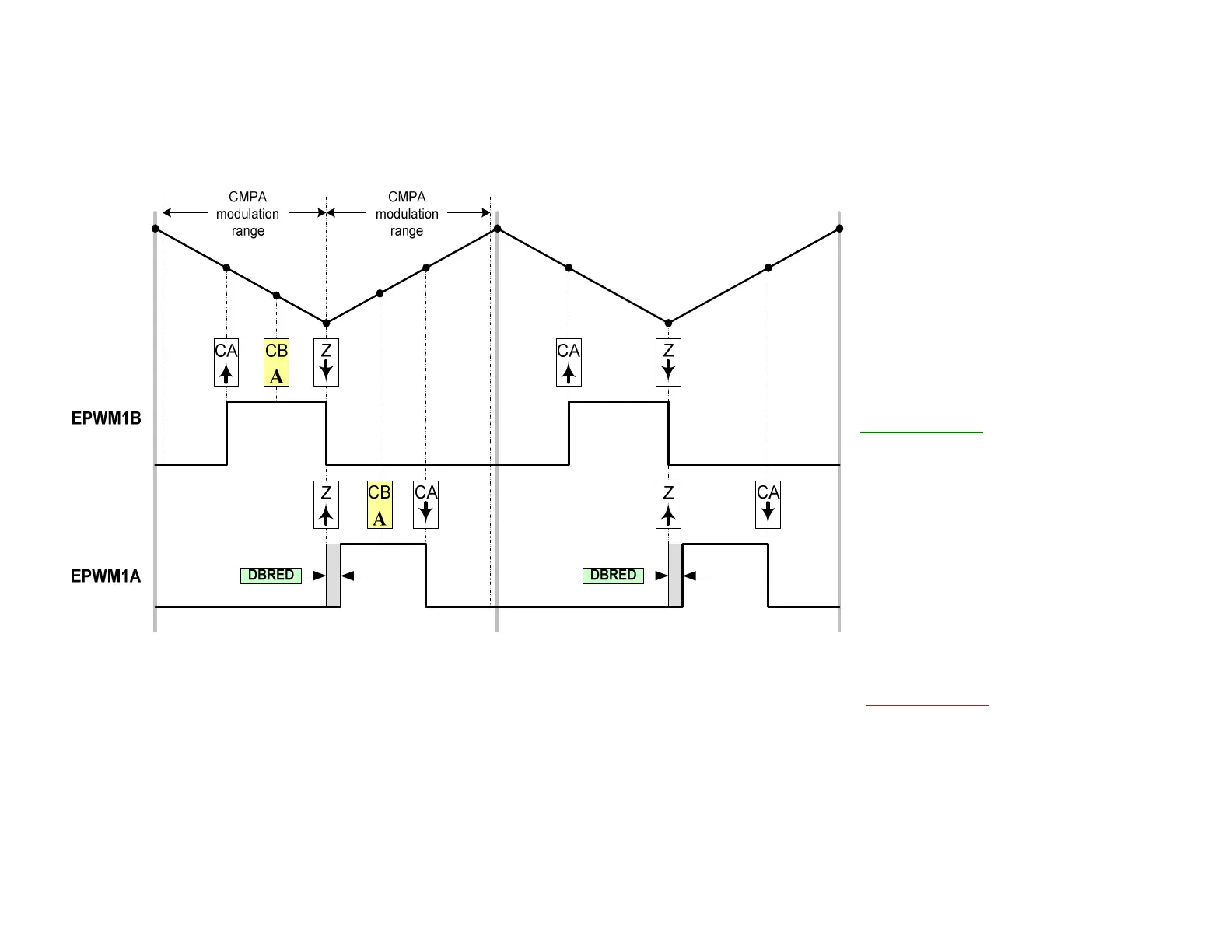

Switching Requirements – HHB
• Up/Down Count
• Asymmetrical PWM
• dead-band on A only
• 50 % max Modulation
(controlled by CMPA)
INIT-time
• ZRO Action (A,B)
• CAd Action
• CAu Action
• CBd ADC trigger
• CBd ADC trigger
• DBRED
RUN-time
• CMPA
• CMPB (optional)
Compare A modulation range:
0 < CMPA < ( PRD – ½ x DBRED )
