Control Peripherals
Fast & Flexible
12-bit 16-Channel ADC
6.25 MSPS throughput
Dual sample/hold enable
simultaneous sampling or
sequencing sampling modes
Analog input: 0V to 3V
16 channel, multiplexed inputs
Auto Sequencer supports up to 16
conversions without CPU
intervention
Sequencer can be operated as two
independent 8-state sequencers or
as one large 16-state sequencer
Sixteen result registers (individually
addressable) to store conversion
values

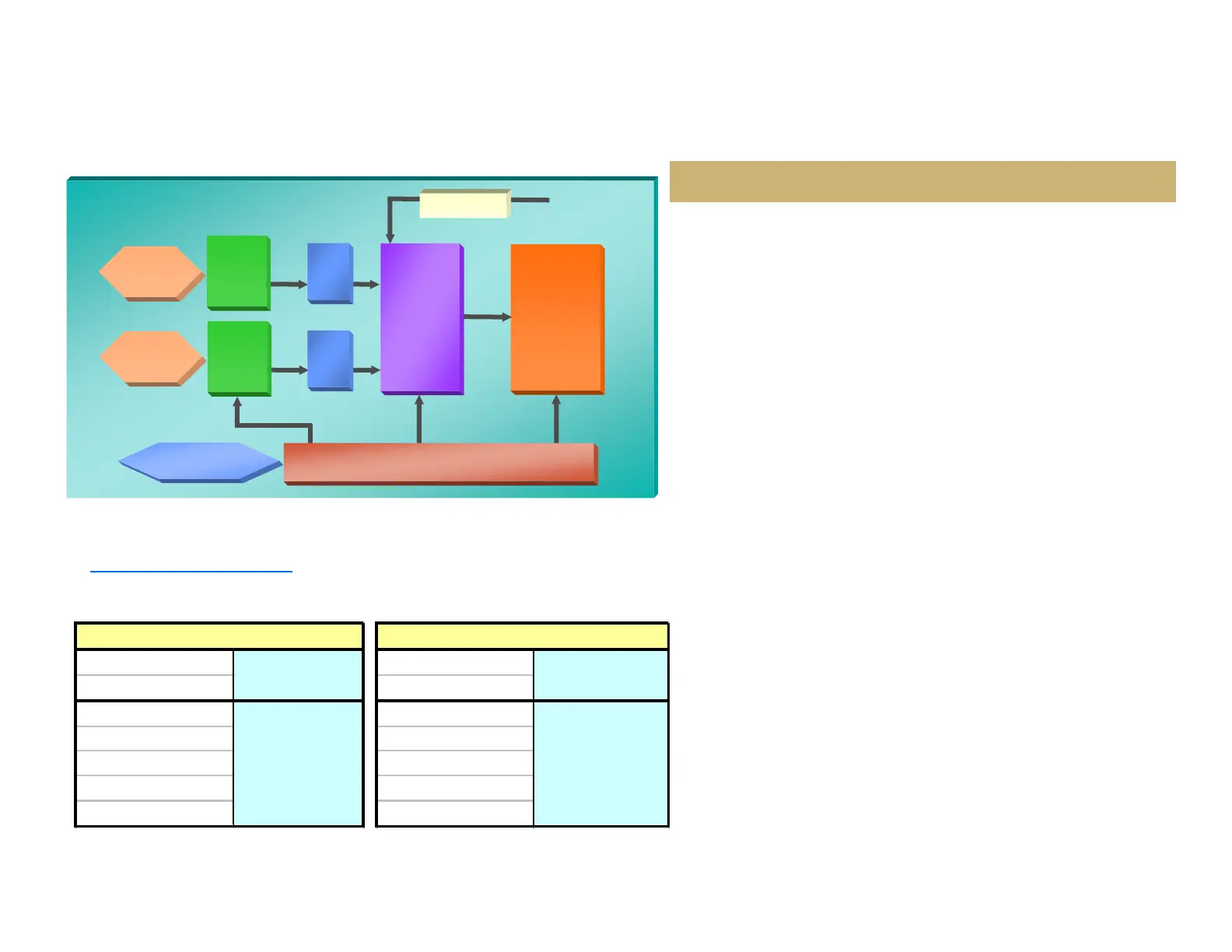

12-bit ADC Capability
8 ADC
Inputs
Result
Registers
16 words
Analog
MUX
Prescaler
S/H
A
12-bit
ADC
Module
8 ADC
Inputs
SYSCLK
Start of
Conversion
Auto Sequencer
ADC
S/H
B
Analog
MUX
ADC Utilization:
# Channels (“Loops”) vs. PWM frequency
MSPS = 3 MSPS = 6.25
PWM # Channels PWM # Channels
(kHz) (kHz)
125 24 125 50
250 12 250 25
500 6 500 13
750 4 750 8
1000 3 1000 6
