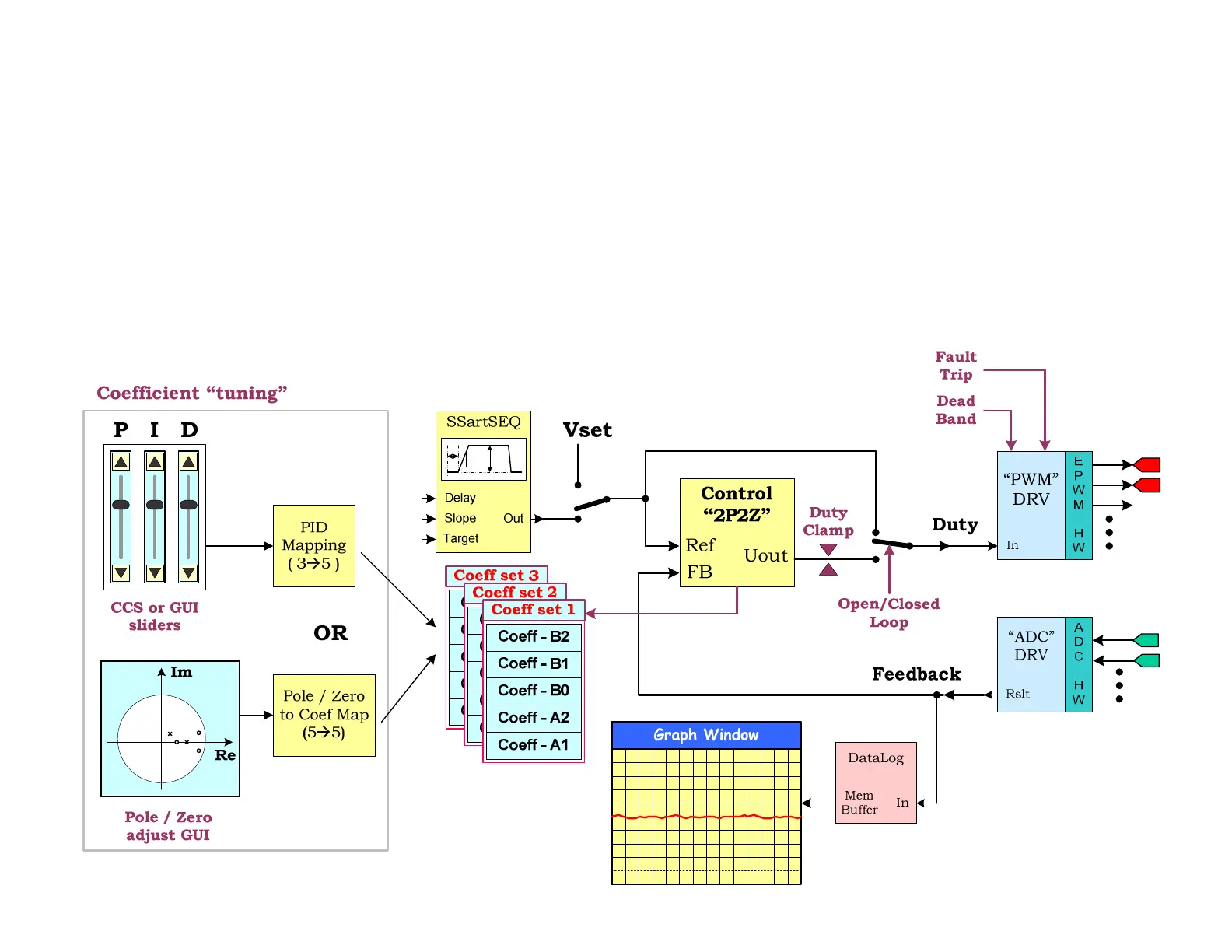

Lab4: Tuning the Loop
Tune closed-loop Buck power stage for improved transient performance
using visual “trial and error” (rather than mathematical approach)
The 2-channel Buck EVM has an active load circuit when enabled by software
provides a repetitive step change in load
CCS graph window feature used to view the transient in real-time
Transient response can be modified directly until the desired improvement is
achieved by adjusting P, I, D sliders
