Texas Instruments C2000 Technical Training

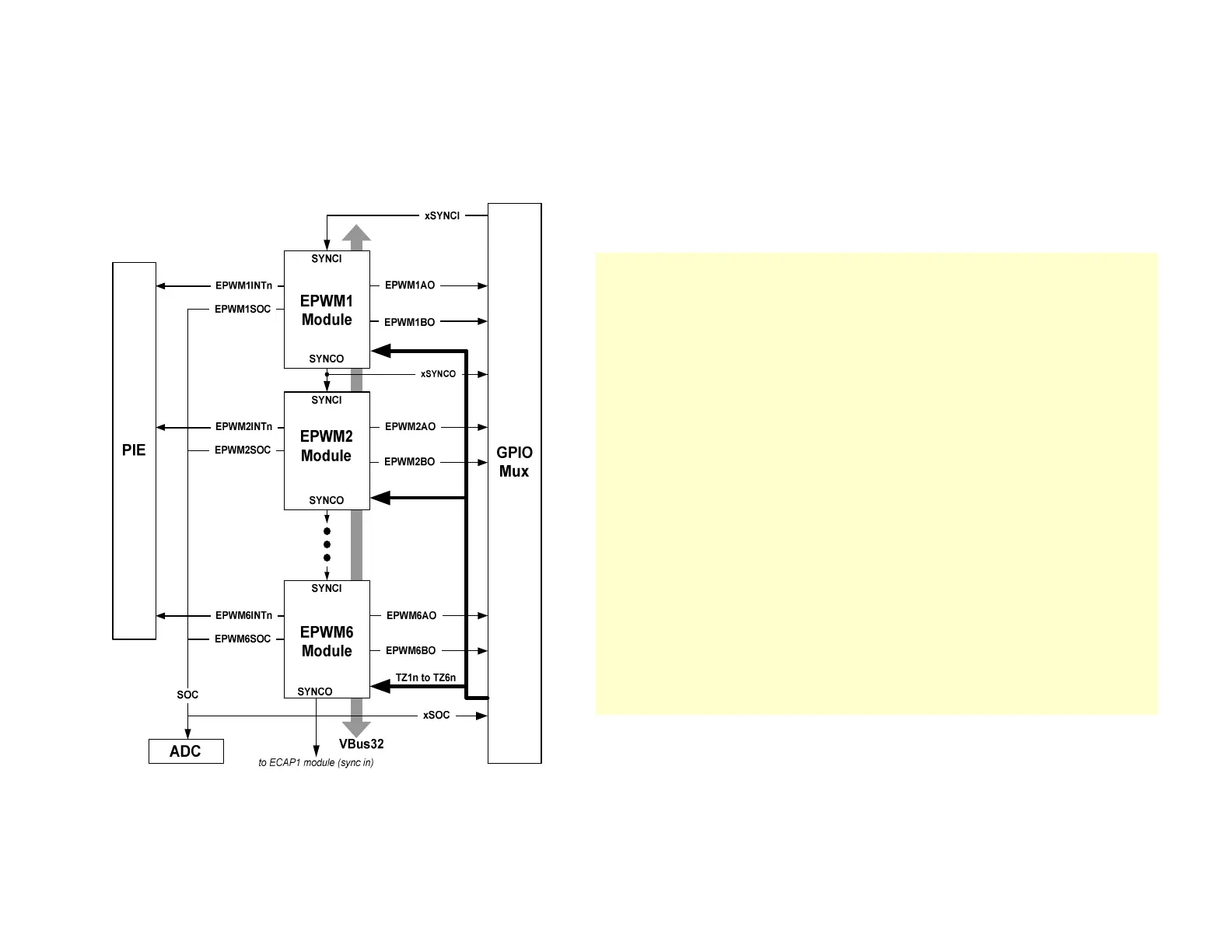

Each peripheral module has the same structure
Scaleable PWM Peripherals
 Resources allocated on a per channel basis
 Each channel (module) supports 2
independent PWM outputs (A&B)
 # Channels easily scaleable – software reuse
 Time-base synch feature for all channels
 6 modules (12 PWM outputs) on F2808
 Key features:
Phase & edge control
New counting modes
Independent deadband
Flexible trip-zones
High frequency chopper mode
