Texas Instruments C2000

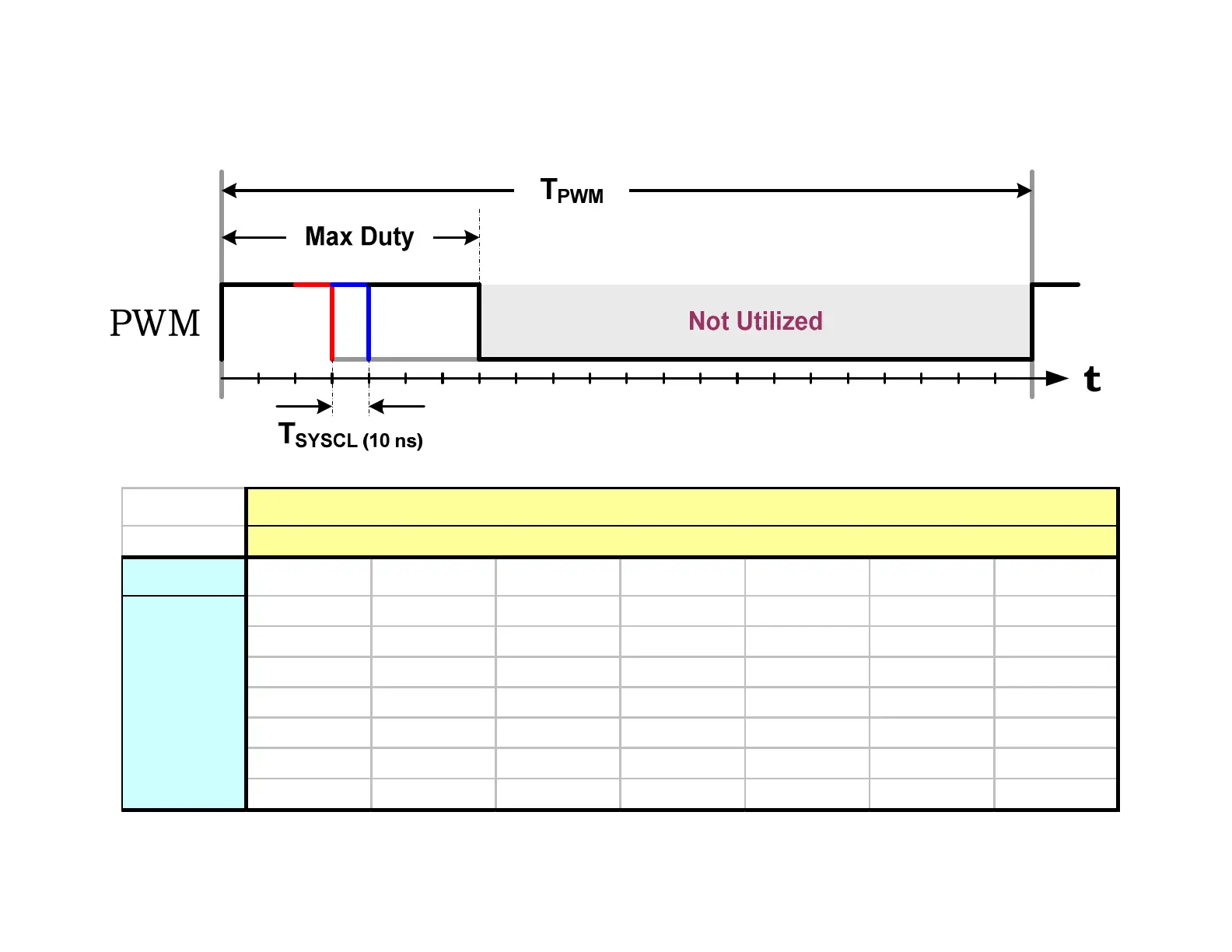

Resolution Loss – Low Duty Utilization
V o u t
0.8 1 1.2 1.8 2.5 3.3 5
V in
14 4.1 3.8 3.5 3.0 2.5 2.1 1.5
12 3.9 3.6 3.3 2.7 2.3 1.9 1.3
10 3.6 3.3 3.1 2.5 2.0 1.6 1.0
9 3.5 3.2 2.9 2.3 1.8 1.4 0.8
8 3.3 3.0 2.7 2.2 1.7 1.3 0.7
7 3.1 2.8 2.5 2.0 1.5 1.1 0.5
6 2.9 2.6 2.3 1.7 1.3 0.9 0.3
Resolution loss in bits
