Appendix E STL Test Suite Release Process
Design and test release of IEC60730 - STL test suite was developed with the elements of IEC60730 V-
model in mind. This method allows design, early validation, regression tests and customization. They are
living working examples to explain code functionality and enables easy in-system validation.

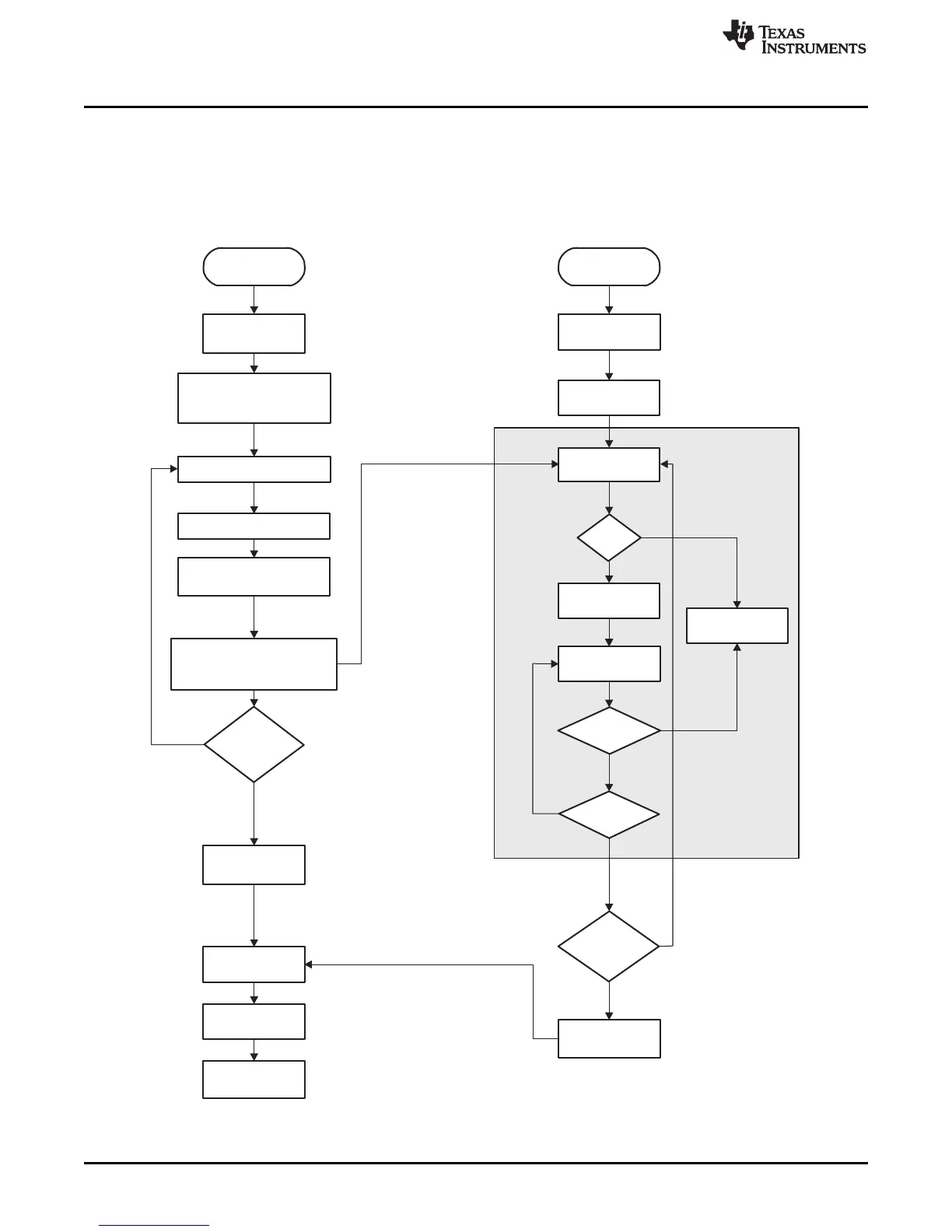

Figure 11. C2000 IEC60730 STL Library – Design, Test and Regression Flow - DTR
36
STL Test Suite Release Process SPRUHI3A–April 2013–Revised August 2013
