C2000 Architecture and Product Overview
www.ti.com

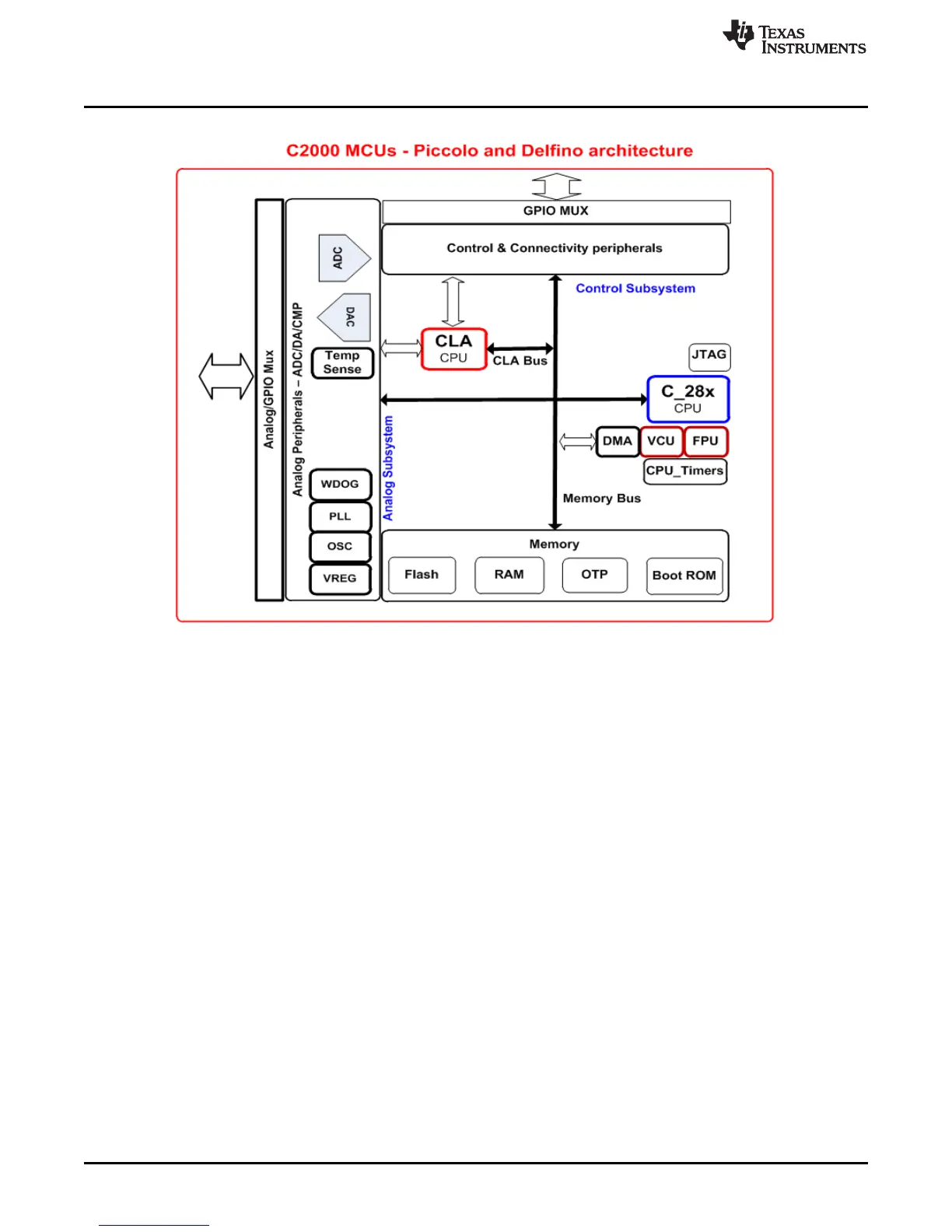

Figure 1. C2000 MCU for IEC60730 Applications - An Overview of System Architecture
2.1 C2000 MCU Architecture Classifications
The following configurations of CPU and subsystems are available across many of Piccolo and Delfino
MCU devices. In this document subsystem refers to a collection of Control or Analog peripherals, critical
for real time control applications. The above architecture breaks down to four types based on CPU
processing power and subsystems.
• Type A: C28x CPU + FPU + VCU + CLA with Control and Analog Subsystem – Piccolo6x family
• Type B: C28x CPU + CLA with Control and Analog Subsystem – Piccolo3x/5x family
• Type C: C28x CPU + FPU with Control and Analog Subsystem – Delfino F2833x family
• Type D: C28x CPU with Control and Analog Subsystem – Piccolo2x and Delfino F2823x families
