PCB Layout and Bill of Materials
Appendix A
SPMU372A–September 2015–Revised October 2016
PCB Layout and Bill of Materials
A.1 Component Locations

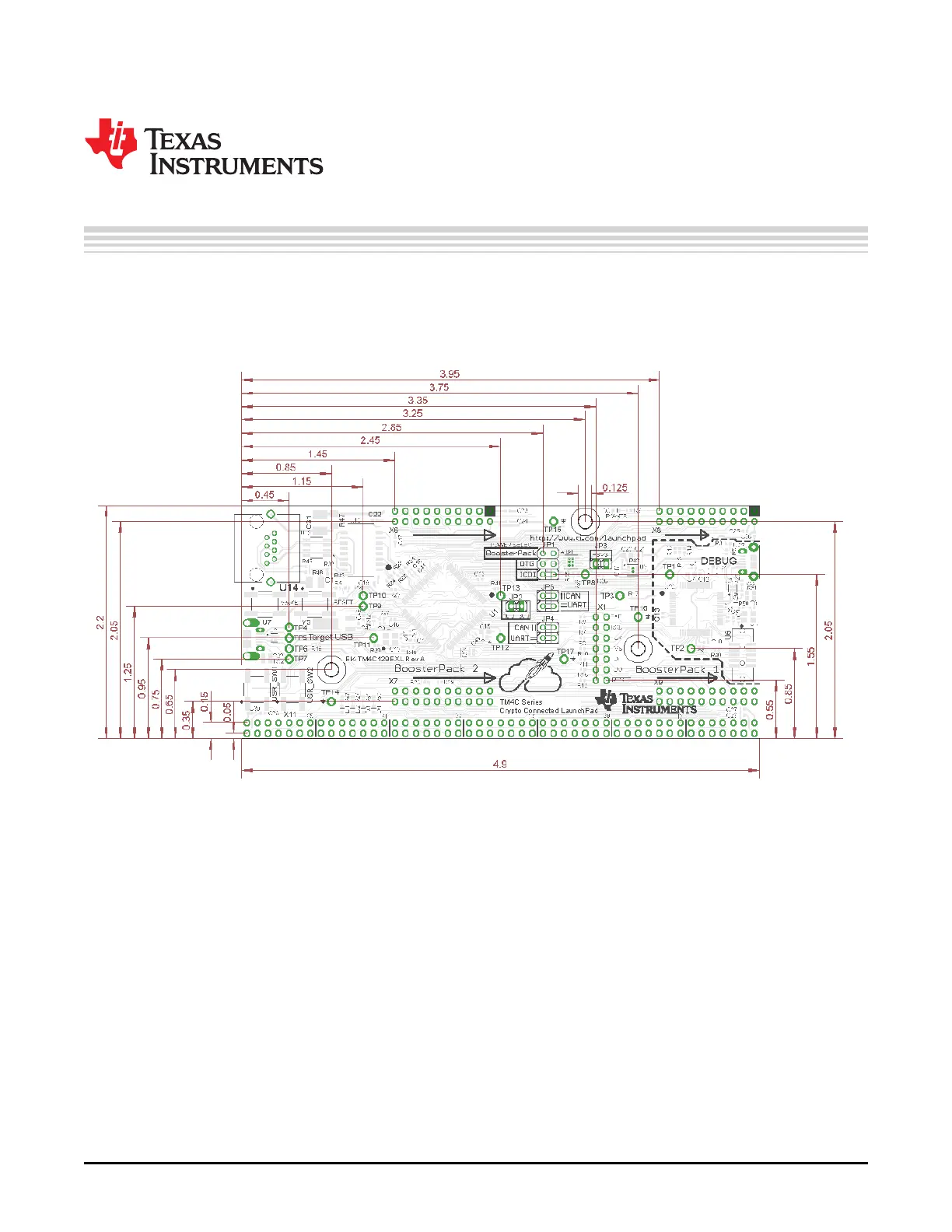

Figure A-1 is a dimensioned drawing of the Crypto Connected LaunchPad that shows the location of
selected features of the board, as well as the component locations.
Figure A-1. Crypto Connected LaunchPad Dimensions and Component Locations
