Enter Flash Read
Read Low Header
Region Pointer
and Application
Code Offset
Read Config
Area
Read App
Code and
Check CRC
Reset Core and
Run App Code
Read High Header
Region Pointer
and Application
Code Offset
Read Config
Area
Read App
Code and
Check CRC
Memory Invalid
Valid Config
Valid App
Code
Invalid
Config
Invalid App
Code
Invalid App
Code
Invalid
Config
Valid App
Code

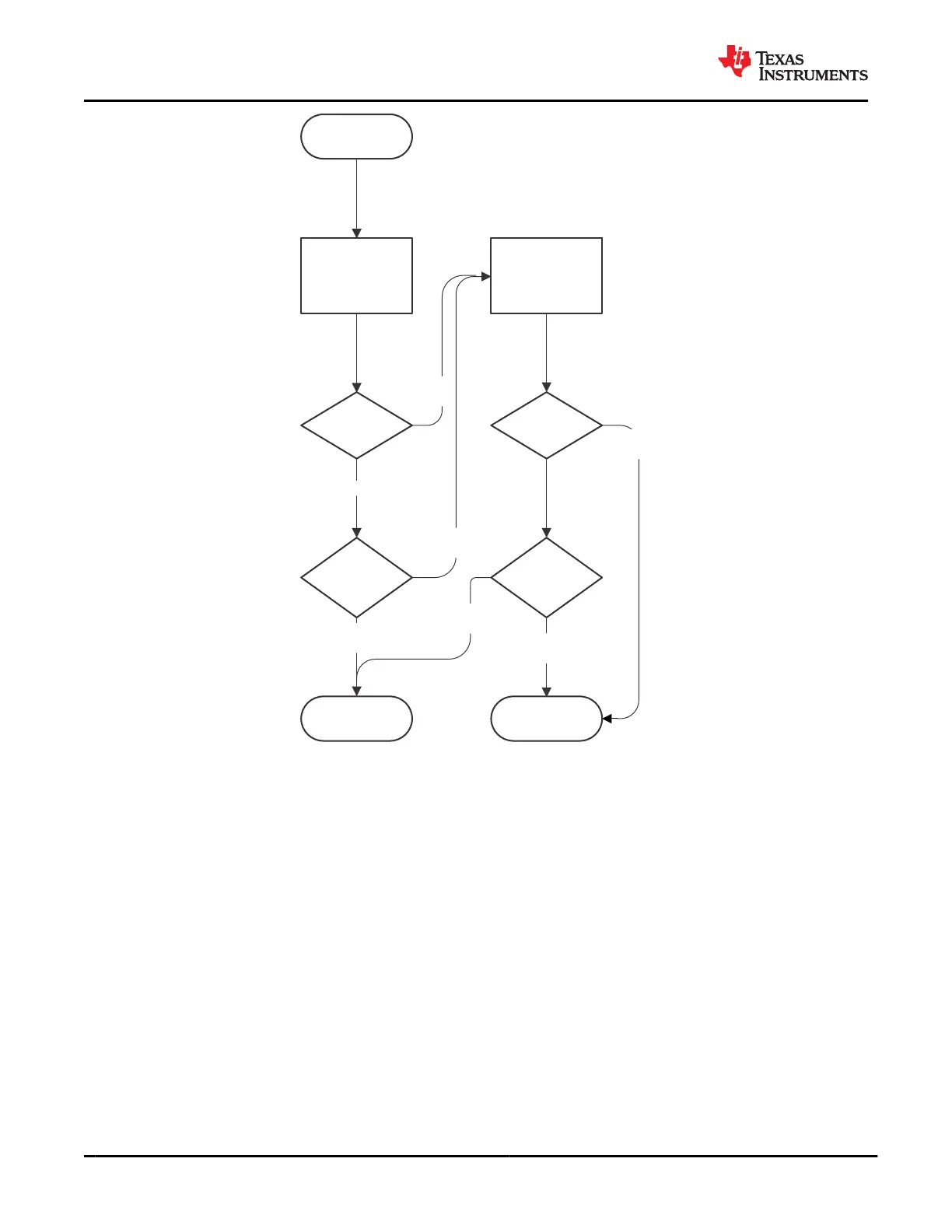

Figure 9-58. Flash Read Flow
9.4.7 Invalid Flash Memory
If the flash memory read fails because of invalid data, the TPS65982 carries out the memory invalid flow and
presents the SWD interface on the USB Type-C SBU pins.
Figure 9-59 shows the invalid memory process.
