Texecom Veritas R8 Plus Installation Manual

Veritas R8 Plus & Excel Installation Manual System Overview
INS045-14 7
2. System Overview

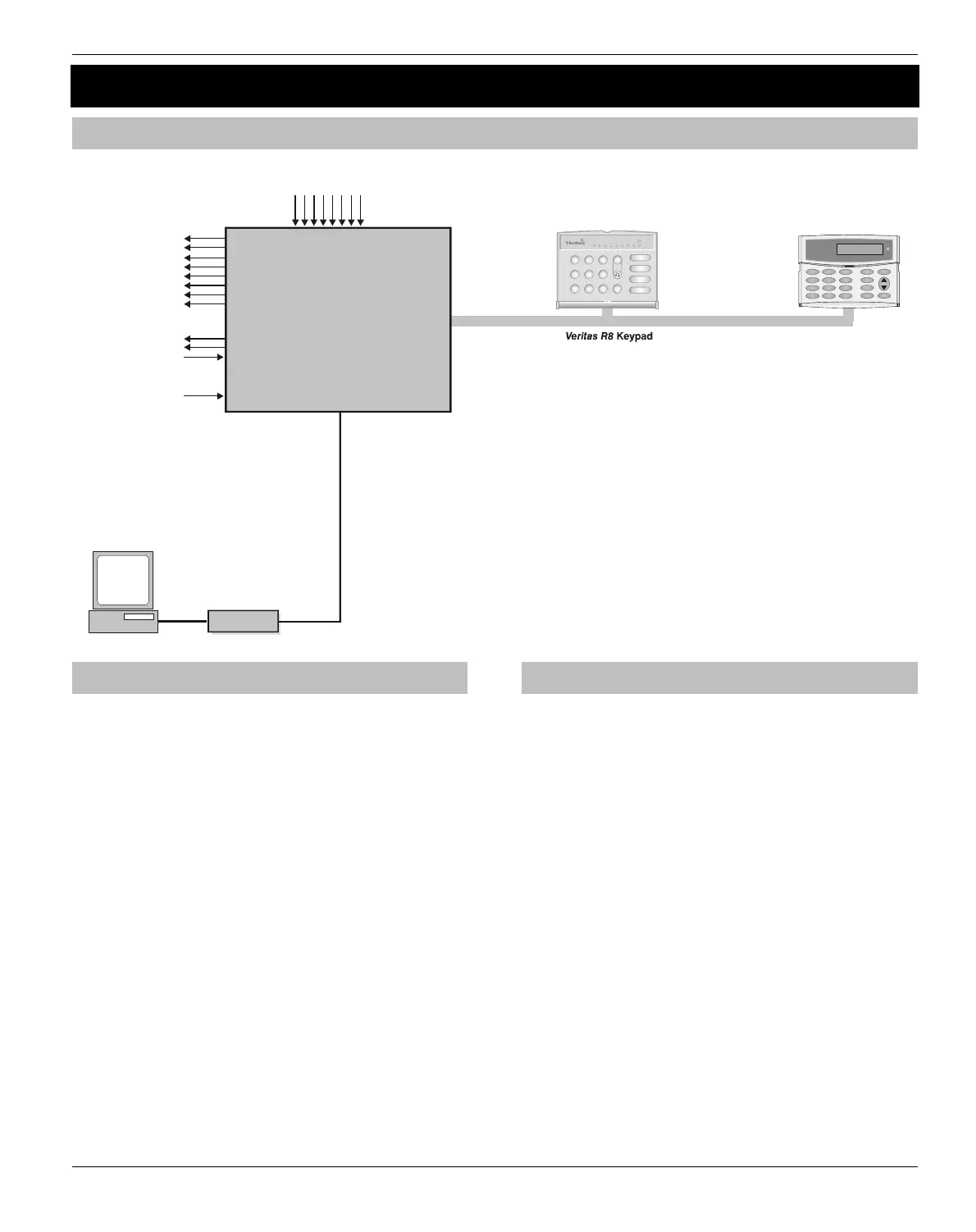

System Architecture
Control Panels
Veritas R8 Plus & Excel
 8 fully programmable Single Pole with Global Tamper
or End Of Line zones
 8 User Codes
 LED and/or LCD keypads
 Up to 6 keypads
 Engineer keypad facility
 4-wire data network (standard 7/0.2 alarm cable)
 4 Part Suites plus Full Set
 8 communicator outputs
 10 character zone text
 16 character Banner Message
 8 character User Name text
Remote Keypads
Veritas R8 Remote Keypad
 LED keypad (8 zone indicators, tamper, power and unset)
 Solid keypad buttons
 Keypad cover
 Keypad PA (3 & 9)
 4-wire connection to remote keypad network
 Built in Piezo sounder
Veritas Excel Remote Keypad
 32 Character LCD keypad (power and unset indicators)
 Tactile sealed rubber keypad
 Keypad cover
 Keypad PA (3 & 9)
 4-wire connection to remote keypad network
 Built in Piezo sounder
 4 Part Suites plus Full Set
8 x 100mA
Outputs
Bell Tamper Input
Auxiliary Tamper Input
Veritas R8 Plus
Veritas Excel
Veritas Excel Keypad
4 Wire Keypad Network
6 Keypads (mixed)
8 Zone Inputs
PC-Com
PC and for
Local Upload/Download
PC-Com
Unset
Bell/Strobe Outputs
Omit
Yes
Part
Chime
Full Prog
Reset 2 abc
No
13 def
6 mn o
9 wxyz
5 jkl
8 tuv
0
4
ghi
7 pqrs
Veritas Excel


456
123
7890
Unset
Zo nes
87654321
Tamp er
FULL
PART
PROG
OMIT
RES ET

Texecom Veritas R8 Plus Specifications

General

Type	Control Panel
Zones	8
Expandable Zones	No
Power Supply	230V AC
Part Set Suites	4
Weight	1.5 kg
Battery Backup	12V 7Ah
Event Log	Yes
Programming	Via keypad
Communication	N/A (No onboard communicator)
