21
ZT 200
Series
BELT REPLACEMENT
Note: Always use Bob-Cat replacement belts, not general purpose belts. Bob-Cat belts are
specially designed for use on commercial mowers and will normally last longer.
ENGINE-CUTTERDECK (PTO) BELT
1. Set the cutterdeck in the lowest height-of-cut
position.

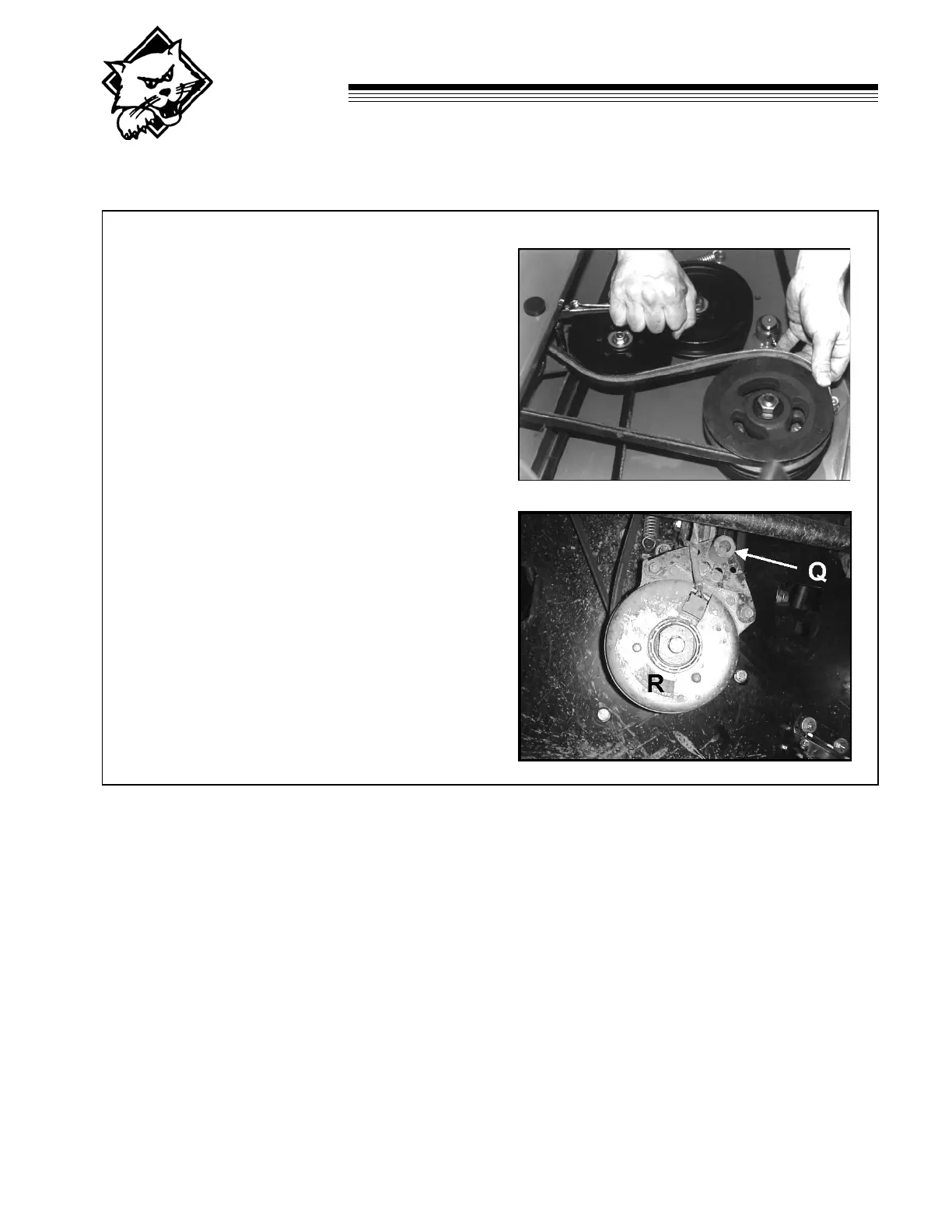

2. Attach a short extension to a 3/8" drive ratchet.
Insert the ratchet extension into the square hole in
the idler arm and use the ratchet to rotate the idler
assembly enough to remove the belt. Remove the
belt from the idlers and center cutter deck pulley.
Push belt back under engine deck.
3. Remove old belt from the machine.
4. Install a new belt by performing the these steps in
reverse order.
NOTE: If clutch and torque restraint are ever removed
for maintenance, make sure when reinstalling
carriage bolts securing torque restraint Q to
clutch R to put the carriage bolts in facing the
ground first through the clutch and then
through the torque restraint and secure them
with the nuts as shown.
