ASSEMBLY AND SETUP
TOOLS REQUIRED FOR ASSEMBLY
– Wrecking bar
– Claw hammer
– Ratchets: 3/8"
– Sockets: 3/8", 1/2", 17 mm, 19 mm
– Wrenches: two 15/16" (or adjustable), 13 mm, 17 mm, 19 mm
– Level
– Straight edge
– Tire pressure gauge
NOTE: All references below to the "right" or "left" are with respect to an operator at the controls.

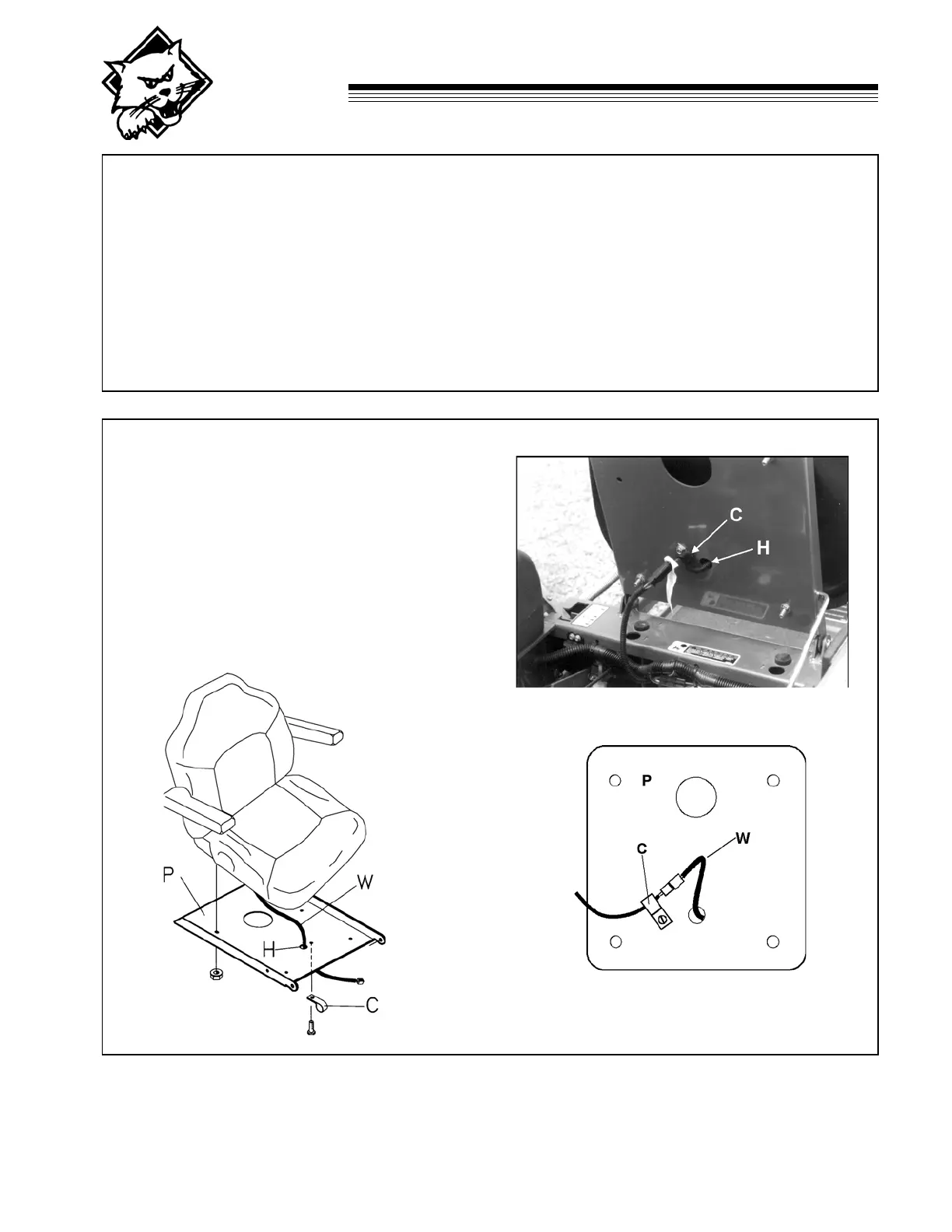

1. INSTALL SEAT
a) Position seat over seat plate and route seat wire
W through hole H in seat plate. Drop seat mount-
ing studs through seat plate holes. Secure studs
with four 5/16-18 whiz nuts and tighten securely.
b) Leave enough seat wire between the seat and seat
plate to allow full fore and aft travel of the seat.
Secure seat wire on the bottom of the seat plate
with clip C and a 1/4-20x3/8 thread forming screw.
c) Connect the tractor harness to the seat wire.
Bottom of seat plate P showing clip C
