Textron BOB-CAT ZT 220D Series User Manual

59
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY
ZT 220D
Series
FIGURE 16
52" & 61" SIDE DISCHARGE
2721543-16

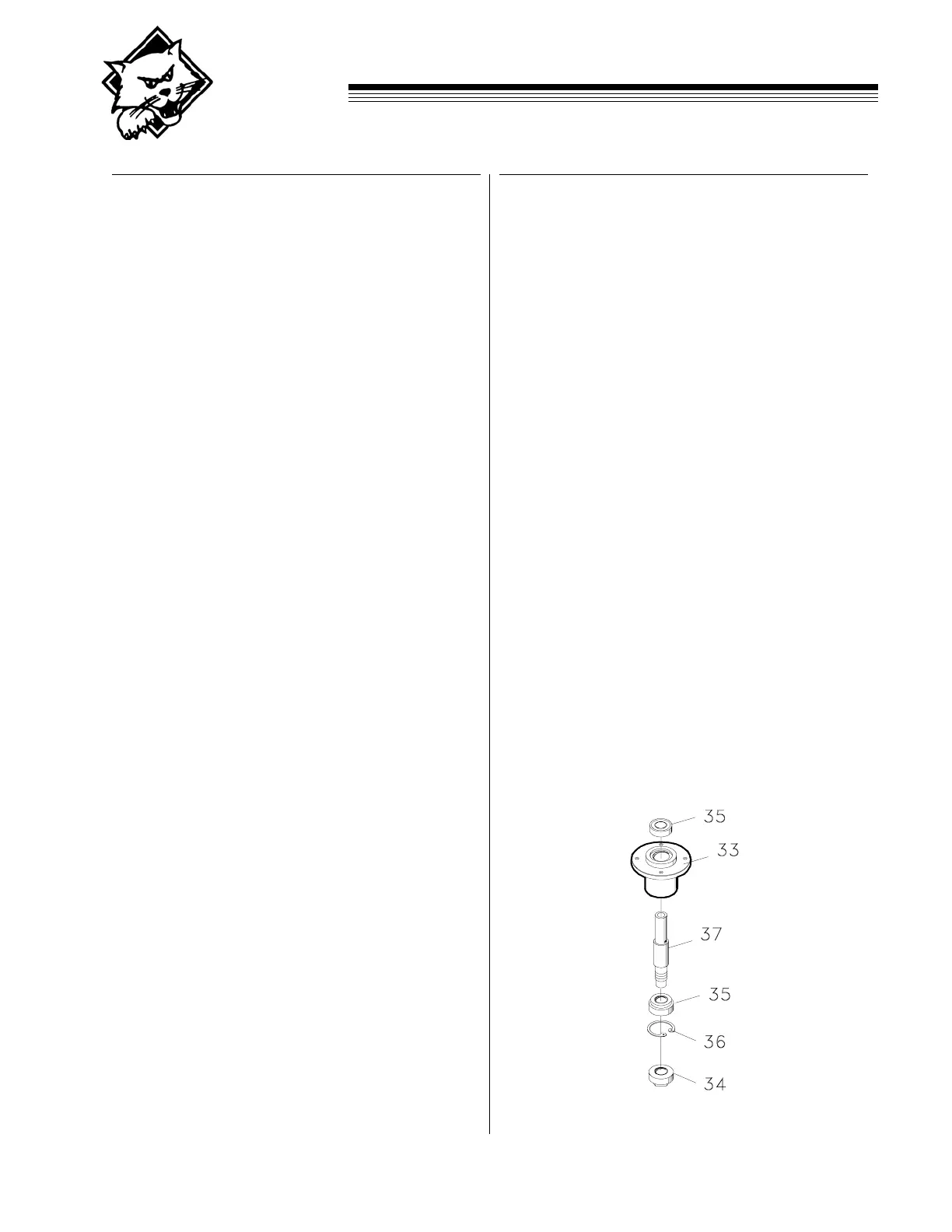

2186207-ASSY TOP MOUNT SPINDLE
2186205-ASSY TOP MOUNT SPINDLE
(INCLUDES ITEMS 33-37)
16-1 2186179 S-52 DECK W/LABS 1
16-2 2182458.2 BELT COVER RH 1
(USE ON 52" SD DECK ONLY)
16-3 2182459.2 BELT COVER LH 1
(USE ON 52" SD DECK ONLY)
16-4 38524 KNOB-4 PRONG 3/8-16 2
16-5 2302092.2 CHUTE-MID 61 1
(USE ON 61" SD DECK ONLY)
32723.2 CHUTE-DISCHARGE MIDSZ 1
(USE ON 52" SD DECK ONLY)
16-6 64166-17 BLT-SHLDR 3\8-16X1.12 4
16-7 64229-03 LOCKNUT NYLON 3/8-16 6
16-8 46335 SHAFT-ASM-ROLLER
(USE QTY 4 ON 61", QTY 5 ON 52")
16-9 2198153 ROLLER, 3"
(USE QTY 3 ON 61", QTY 4 ON 52")
16-10 64205-001 BLT-MET. M8-1.25X20 8
16-11 146067 ROLLER SHAFT 2
(USE QTY 2 ON 61", QTY 1 ON 52")
16-12 112111-03 BLADE 21.0 OFFST 3
(USE ON 61" SD DECK ONLY)
112111-02 BLADE 18.0 OFFST 3
(USE ON 52" SD DECK ONLY)
16-13 142088.7 BRACKET-ROLLER MNT 4
16-14 64197-003 BLT-TDFM 3/8-16X1 14
16-15 2186140.7 WLDMT-PTO IDLER 1
16-16 64197-004 BOLT TR 3/8-16X1 3/4 2
16-17 64164-13 1/4X1/4X2 SQ END KEY 1
16-18 48393 PULLEY, V IDLER 1
16-19 38297 IDLER, 5.0 OD FLNGD 1
16-20 128011 PULLEY, DECK DRIVE 1
16-21 64209-03 SPRING WSHR .67 ID 6
16-22 64164-12 1/4X1/4X1 SQ END KEY 2
16-23 31012A ENGINE PULLEY 3
16-24 128169 PULLEY, IDLER 5.50" 1
16-25 2186138.7 WLDMT-DECK IDLER 1
(USE ON 61" SD DECK ONLY )
2186164.7 WLDMT-DECK IDLER 1
(USE ON 52" SD DECK ONLY)
16-26 64246-02 WIZ-NUT M8-1.25 8
16-27 2186207 ASSY-TOP MNT SPNDL 1
(INCLUDES ITEMS 33-37)
16-27A 2186205 ASSY-TOP MNT SPNDL 2
(INCLUDES ITEMS 33-37)
16-28 2186185.7 WLDMT-PUSHBAR 2
16-29 64006-05 LCKWSHR HELICAL 1/2 1
16-30 64123-05 BLT-HEX 1/2-20X1 1/2 1
16-31 64163-46 WSHR .383/.393 X 7 GA 5
16-32 2186125 WLDMT-LOCK PSHBR 2
16-33 2191000.7 SPINDLE HOUSING 3
16-34 38315 NUT-SPINDLE 3
16-35 38348-01 BEARING-SPINDLE 6
16-36 64144-38 SNAP-RING 3
16-37 2183070-01 SPINDLE 1
(USED IN ASSY 2186207)
2183070-02 SPINDLE 2
(USED IN ASSY 2186205)
16-38 85010N STRAIGHT ZERK FTTG 6
16-39 2188142-01 ROD, END 5/8 2
16-40 64123-50 BLT-HEX 3/8-16X1 2
16-41 64237-02 LOCKNUT-NYLON M6-1.0 2
16-42 2182494.7 BAFFLE-FRONT RH 1
(USE ON 61" SD DECK ONLY)
16-43 2188162 SPACER-BLADE 3
16-44 64229-06 LOCKNUT-NYLON 5/8-11 2
16-45 64123-209 BLT-HEX 5/8-18X3.5 3
16-46 64123-208 BLT-HEX 5/8-11X1 1/2 3
16-47 32767.7 SUPPORT-BELT 2
16-48 2182493.7 BAFFLE-FRONT LH 1
(USE ON 61" SD DECK)
16-49 2182474.7 GUIDE-BELT 1
(USE ON 52" SD DECK ONLY)
16-50 A1104057 BLT-MET M10-1.5X25 8
16-51 64237-03 LOCKNUT-NYLON M10 14
16-52 64163-65 WSHR .890X1.375X18 GA 4
16-53 64221-04 E-CLIP .875 2
16-54 2182437.7 GUIDE-BELT 1
16-55 64001-1 NUT-JAM 5/8-18 2
16-56 64123-206 BLT-HEX 5/8-11X4.5 2
16-57 2188131 SPRING-EXTENSION 2
16-58 64163-73 WSHR-FLT .625IDX.062 A/R
16-59 2182495.7 BAFFLE-FRONT LH 1
(USE ON 52" SD DECK ONLY)
16-60 2182496.7 BAFFLE-FRONT RH 1
(USE ON 52" SD DECK ONLY)
16-61 64205-007 BLT METRIC M10-1.50X20 6
16-62 64018-2 BLT-CRG 1/4-20X3/4 2
16-63 64229-01 LOCK NUT-NYL 1/4-20 2
16-64 2186132 S 61 DECK W/LABS 1
16-65 2182352.2 BELT COVER RH 1
(USE ON 61" SD DECK ONLY)
16-66 2182351.2 BELT COVER LH 1
(USE ON 61" SD DECK ONLY)
16-67 2302125.7 GUIDE-BELT 1
