Textron BOB-CAT ZT 220D Series User Manual

39
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY
ZT 220D
Series
6-1 2720996 S ENGINE DECK W\LABS 1
6-2 2186128.7 WLDMT-BRAKE ARM LH 1
6-3 2186142.7 WLDMT-BRAKE ARM RH 1
6-4 128102 SPRING-EXTENSION 2
6-5 2186143.7 WLDMT-BRAKE ARM LVR 1
6-6 33213 ROD-SPD CTRL LH UPPER 2
6-7 2182387.7 GUIDE-SPRING 2
6-8 38020N CLEVIS-YOKE PLATE 2
6-9 2188147 ASSY BRAKE CW (LH) 1
* 2188148 ASSY BRAKE CCW (RH) 1
6-10 64163-06 WSHR-.768-.756 IDX14 GA 2
6-11 2183056 SHAFT-BRAKE 1
6-12 2188126-01 MOTOR-ASSY HYDRAULIC 2
(INCLUDES ITEMS 14 & 32)
6-13 2198156-01 RIM ASSY W/VALVE STEM 2
2198156-02 TIRE 23 X 10.5 X 12 2
6-14 64025-31 NUT1-20 UNSLOTTED TRW 2
6-15 64220-02 BOLT-WHEEL 7/16-20 10
6-16 64188-02 PIN-CLEVIS 5/16X1 2
6-17 64061-25 ROLL-PIN 1/4X1 1/4 2
6-18 2188155 GRIP, 1/4X1X4 1/2 1
6-19 2183063-01 SPACER, 32MM LONG 8
6-20 2188149 HUB-WHL & DISC 2
6-21 85010N STRAIGHT ZERK FITTING 1
6-22 64144-34 SNAP RING .50 1
6-23 2188145 BRG-.75ID BRNZ SLF ALIGN 2

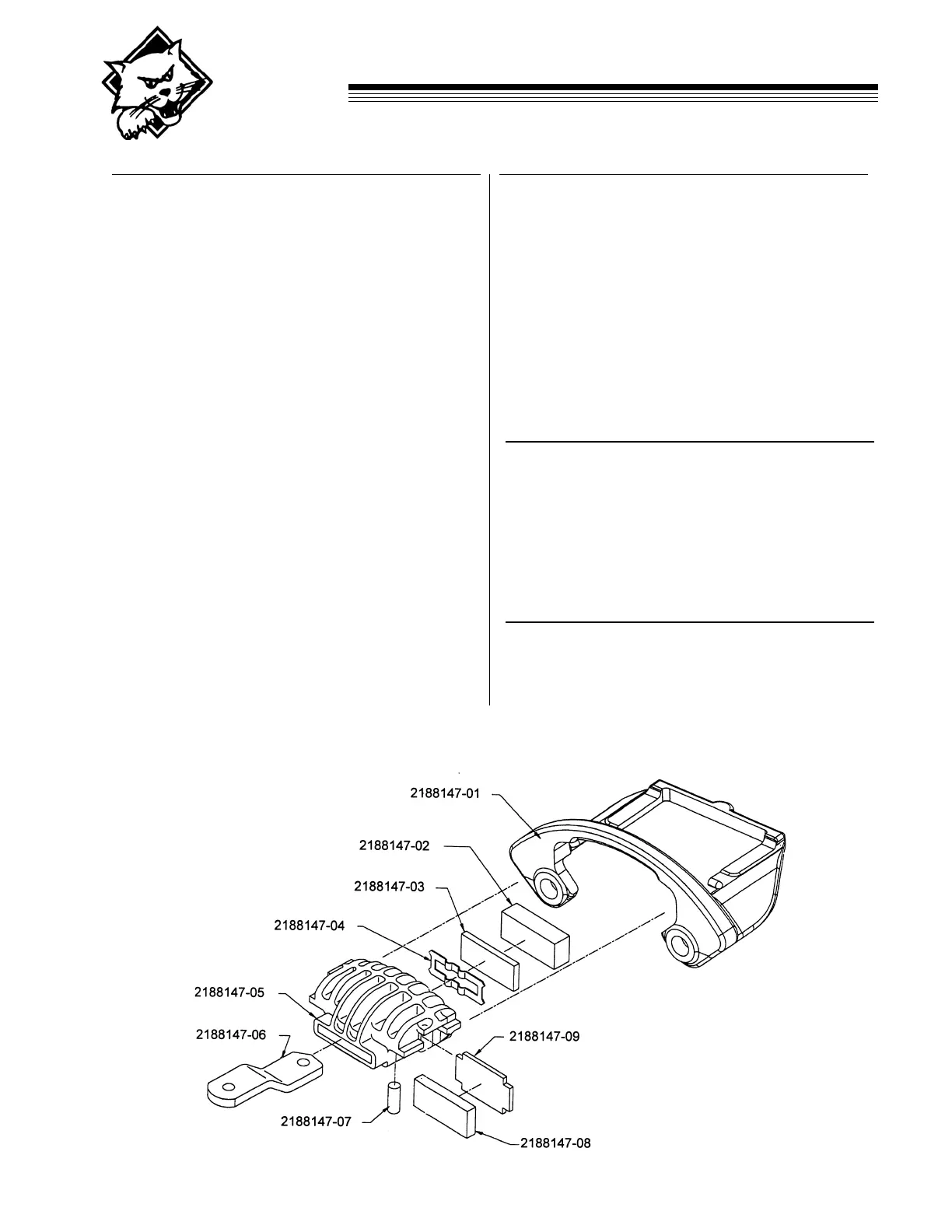

SERVICE PARTS FOR 2188147 AND 2188148
BRAKE ASSEMBLIES
2188147-01 BRACKET-MACHINED 1
2188147-02 PAD-CAM SIDE 1
2188147-03 PAD-SUPPORT 1
2188147-04 SPRING-LEVER RETAINER 1
2188147-05 HOUSING 1
2188147-06 CAM LH 1
2188147-07 PIVOT PIN 1
2188147-08 PAD-CARRIER SIDE 1
2188147-09 PAD-SUPPORT 1
2188148-01 *CAM RH 1
* NOT ILLUSTRATED
QTY/ASSY
BRAKE ASSEMBLY BREAKDOWN
FIGURE 6
BRAKES/REAR WHEEL
2721543-06
6-24 64123-15 BLT-HEX 3/8-16X3/4 4
6-25 64141-4 NUT-WLF 3/8-16 4
6-26 64188-03 S PIN CLEVIS 3/8X1 1/8 2
6-27 64168-2 HAIRPIN COTTER 6
6-28 64025-04 NUT-HEX 3/8-24 2
6-29 38020-01 CLEVIS YOKE 3/8 PLATE 2
6-30 2183064 ROD, BRAKE 1
6-31 450766 CAPSCRW M12-1.75X100 8
6-32 64164-08 S-KEY / WHEEL MOTOR 2
6-33 64207-07 NUT-HEX M12-1.75 8
6-34 64006-05 LCKWHSR-HELICAL 1/2 8
