7.2 PANEL MOUNT OPERATOR STATION MOUNTING (OPTIONAL)
Select proper operator location. Operator should be able to view RC Extend-A-Gun operation while operating up/down buttons.
Panel space required will be 5-1/4” x 3-5/8 “(130mm x 90mm). A depth of 3”(75mm) will be required behind the panel. Refer to Figure
7.2 for dimensions. Be sure to install supplied cable clamp to relieve strain on push button wires.
2 1/2”
(63.5mm)
1 3/4”
(44.5mm)
2 11/16”
(68.1mm)
4 1/4”
(108mm)
1/4”
(6.4mm)
MOUNT WITH (4) #8-32 LOCK NUTS
TIGHTEN SECURELY.

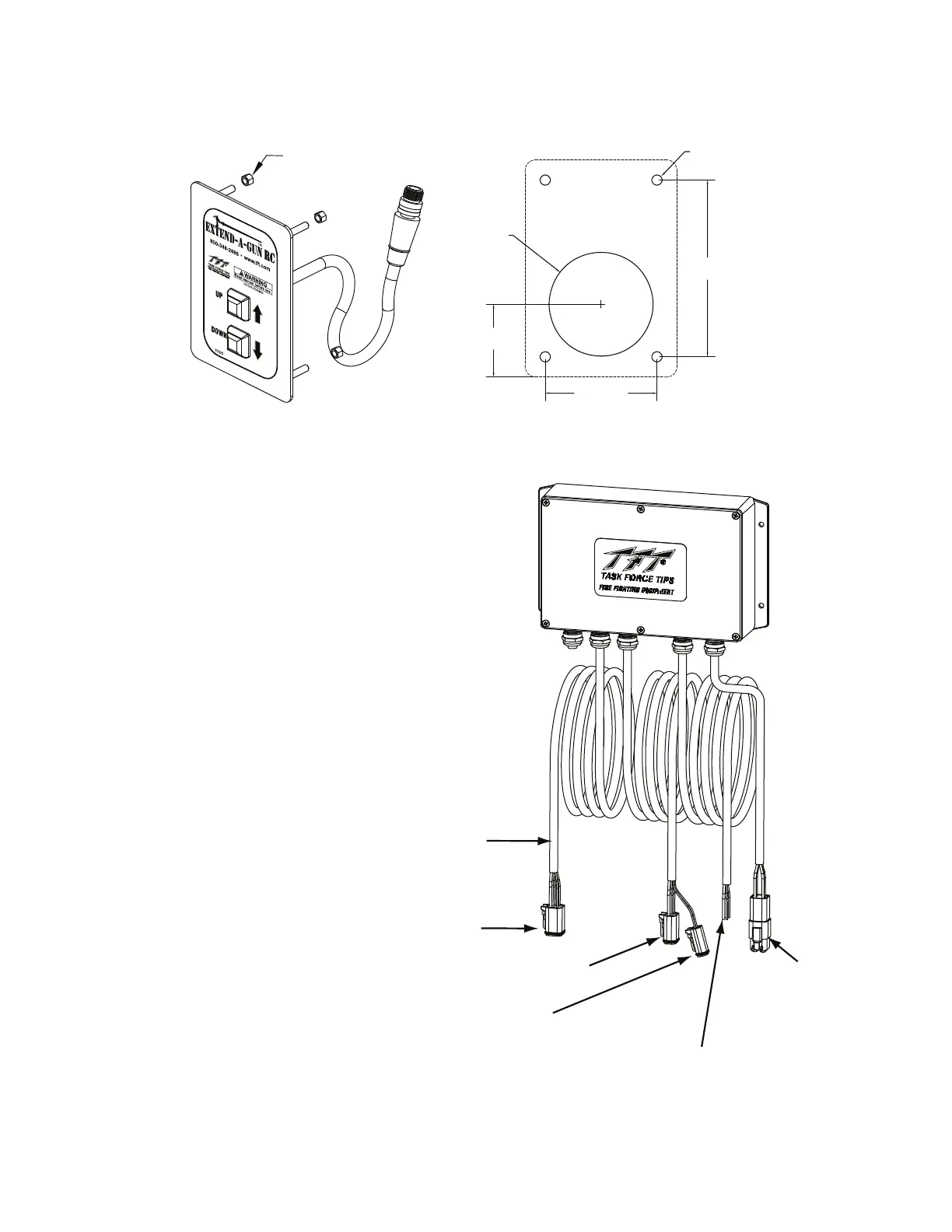

Figure 7.2
Panel Mount Operator Station Mounting
7.3 CONTROL BOX WIRING
The power supply for the RC Extend-A-Gun will need
to be connected to a protected circuit from the trucks
power distribution center. The waterproof control box is
factory sealed. The box should not be opened unless
service to the circuit board is needed.
• Good mechanical connections on the wires
are absolutely necessary and should be checked
periodically.
• Poor electrical connections can cause power loss to
the RC Extend-A-Gun and a fi re hazard.
• Be careful to route cables in a protected area away
from high heat sources.
• Use grommets whenever wires pass through holes to
prevent damage due to snags, abrasions, etc.
• Secure cables close to control box with plastic wire
tie or cable clamp to relieve stress on the cables.
• Disconnect power before installing or servicing the
electrical components.
• Careful selection of wiring is critical to avoid excessive
voltage drop.
After mounting control box RC Extend-A-Gun, and
RC monitor refer to Figure 7.3 for wiring connections.
Refer to RC monitor manuals (LIY-500) section 2 for
connecting to communication link.
Connect this cable
to Power & Communication Link
Connect this plug
to RC Extend-A-Gun
retracted sensor
Connect this plug
to Extend-A-Gun
RC Motor
Connect this plug
to RC Monitor
WARNING
Lengthening this
cable will void
TFT Factory
Warranty.
INSERT WIRES
FOR FEEDBACK
RELAYS INTO
THE CONNECTOR
Figure 7.3
Control Box Wiring
To Next Page
