TFT Extend-A-Gun RC3 User Manual

©Copyright Task Force Tips, Inc. 2004-2018 LIX-530 December 31, 2018 Rev14
5

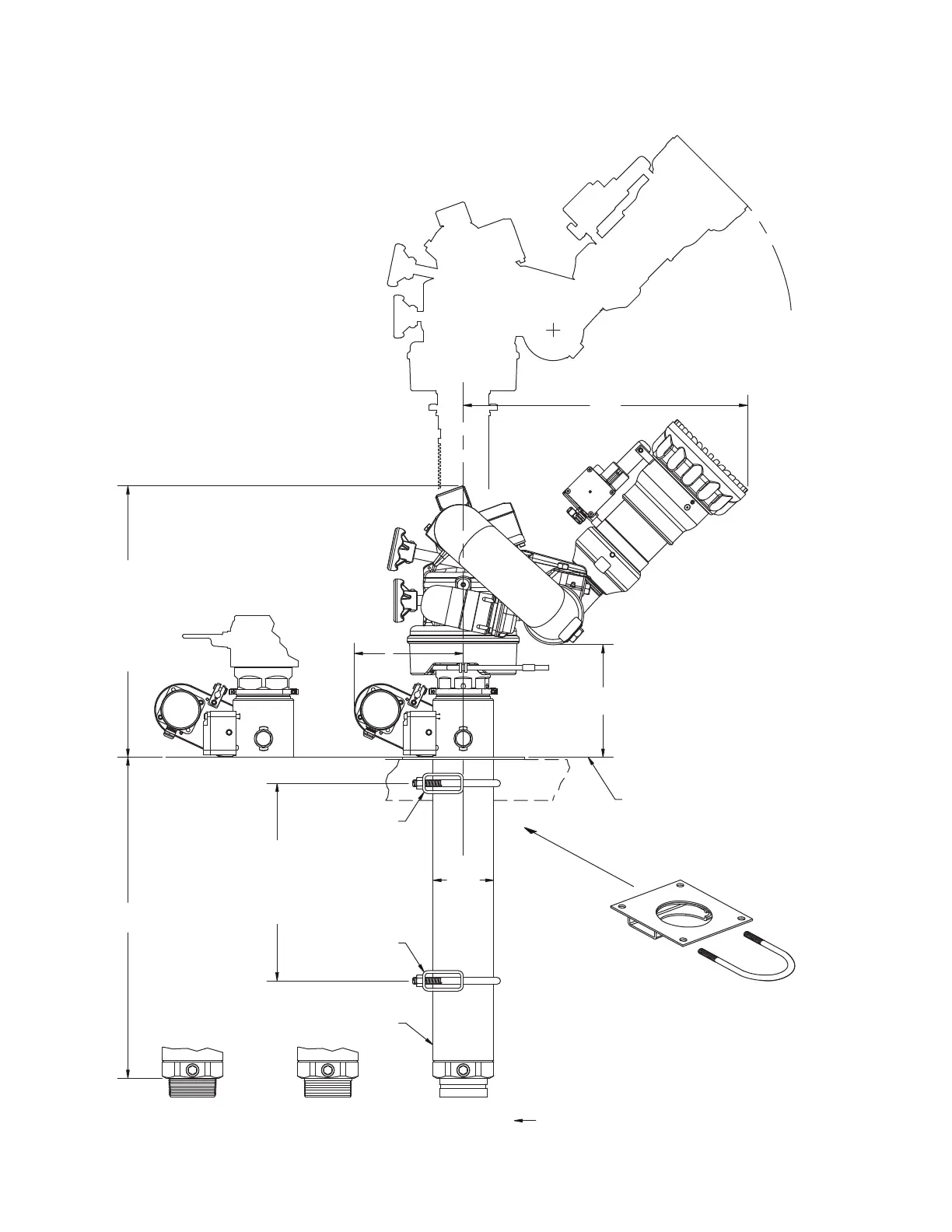

3.3 DIMENSIONS
12” EXTEND-A-GUN RC3
3” Waterway 12” Travel
** CROSSFIRE OUTLET
TRUCK SURFACE
8.3" **
SADDLE BRACKET
TFT P/N XGB-33
OUTER TUBE
SADDLE BRACKET
3" NPT MALE 3" BSP MALE 3" VICTAULIC MALE FROM PUMP
ALTERNATE:
1) MOUNTING PLATE 9" SQUARE
TFT P/N XGB-23
** - OUTLETS SHOWN ARE
FOR HURRICANE RC MODELS.
FOR CROSSFIRE MODELS,
SUBTRACT 1 3/4".
SHOWN WITH
TFT MASTER 1250 ER NOZZLE
AND
HURRICANE RC MONITOR
EXTENDED
17 3/4"
8"
Ø4 1/2"
20 1/4"
19.50" ** RETRACTED
(POSITION ADJUSTABLE
BY U-BOLTS IN MOUTING TUBE)
SEE LOAD CHART
FOR DISTANCE
Fig 3.3a
