©Copyright Task Force Tips, Inc. 2004-2018 LIX-530 December 31, 2018 Rev14
9

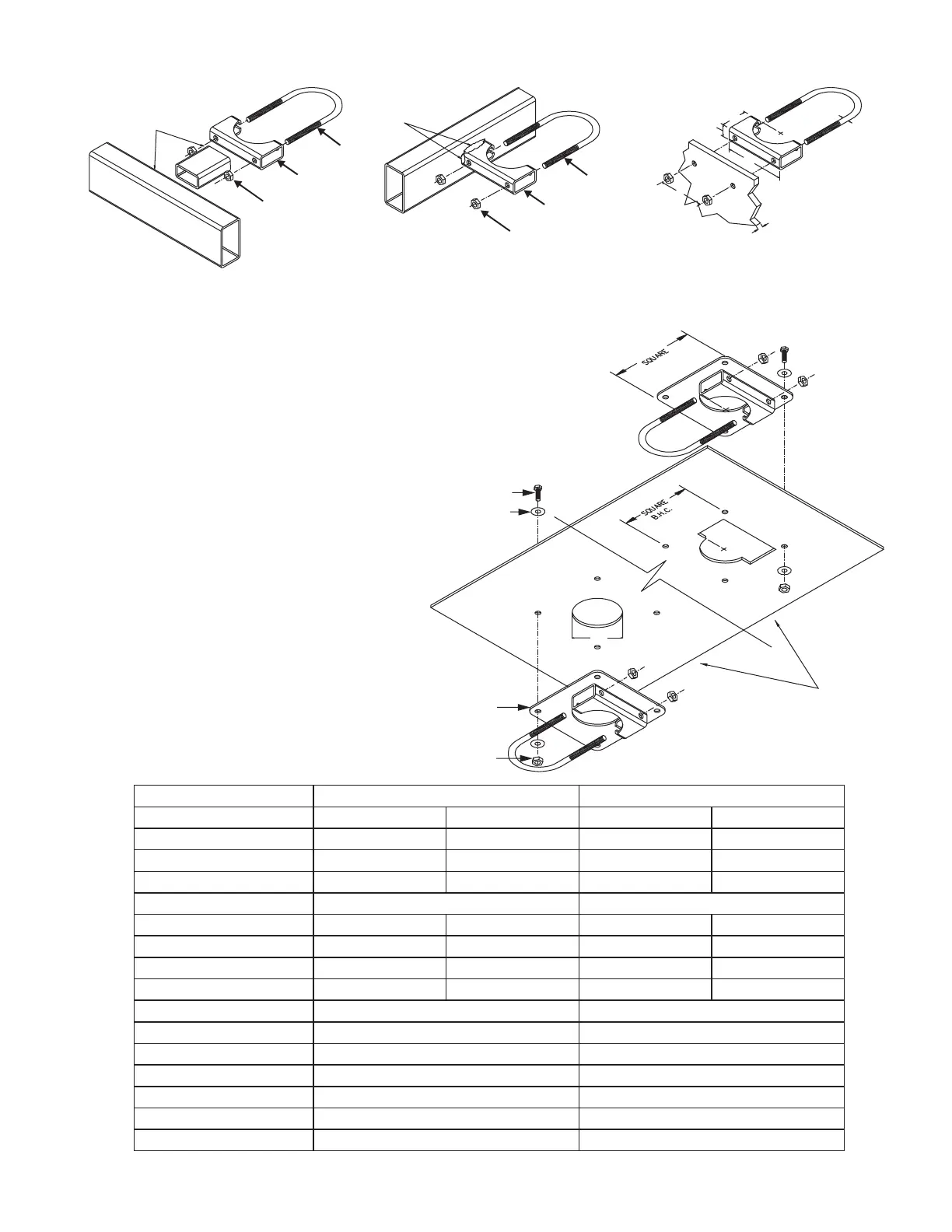

4.3 SADDLE BRACKET INSTALLATION
WELD 8 PLACES
TYP
1
2
3
WELD 4 PLACES
TYP
1
2
3
1/4" Maximum
Thickness
A
C
B
D
E
SADDLE BRACKET WELDING
Deck
Bottom
View
F
G
H
4
5
6
7
This kit contains two steel saddle brackets and
U-bolts, and is designed for factory installation on
new equipment. Both Brackets must be used and
must be welded to truck framework as far apart as
possible yet still clamp on the Extend-A-Gun RC
tube. The welds must be able to withstand the forces
shown on the Side Loads at Mounting Points Diagram
(page 8). The Extend-A-Gun RC may be installed in
the brackets after the truck is painted. Use Loctite,
supplied in kit on U-bolts.
4.4 PLATE BRACKET INSTALLATION
This kit may be used in either new or retro-fi t
installations. The top plate with its bracket may be
bolted above or below an existing deck. The lower
saddle bracket is installed as previously shown. Both
brackets must be used. To minimize the stress on
the brackets they should be as far apart as possible
when clamped to the Extend-A-Gun RC tube. Please
refer to the Side Loads at Mounting Points Diagram
and make sure the mounting points can withstand
these forces. Use Loctite®, supplied in kit on all
threads, torque bolts.
MODEL EXTEND-A-GUN RC3 EXTEND-A-GUN RC4
TORQUE U-BOLTS 30-40 ft-lbs (49-54 nm) 70-80 ft-lbs (95-108 nm)
A = Center Distance 5.0” (127mm) 6.54” (166mm)
B = Height 1.5” (38mm) 2.0” (51mm)
C = Width 3.0” (76mm) 4.0” (102mm)
D = U-Bolt Size 1/2-13 UNC 5/8-11 UNC
E = Length 6.0" (152mm) 9.0” (228mm)
F = Square Pattern on Plate 7.5" (191mm) 9.5” (241mm)
G = Plate Width & Length 9" x 9" (288mm x 288mm) 11" x 11" (279mm x 279mm)
H = Hole Diameter 4-5/8" (117mm) 6-1/4" (159mm)
1 = Hex Nut (2 rqd) VT50-13NT VT62-11NT
2 = Saddle Bracket XG486 XG488
3 = U-Bolt XG476 XG477
4 = Deck Bolt 1/2-13 Hex Bolt 1/2-13 Hex Bolt
5 = Washer 1/2" I.D. 1/2" I.D.
6 = Plate Bracket XG485 XG487
7 = Deck Nut 1/2-13 Hex Bolt 1/2-13 Hex Bolt
