Figure 4.4C
Figure 4.4D

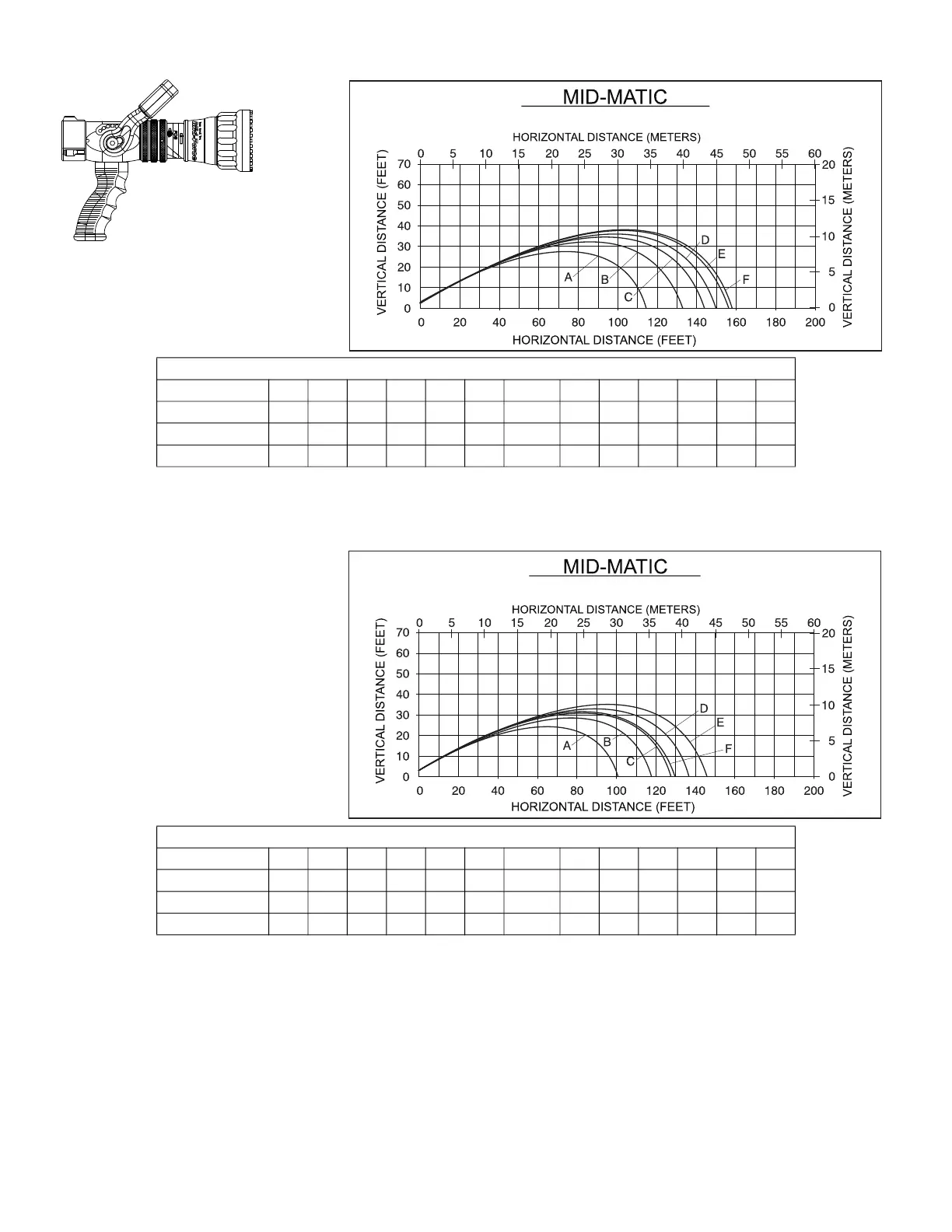

Mid-Matic 100 psi (7 bar) Version
Curve
A B C D E F A B C D E F
Flow (gpm)
70 95 125 150 175 200 (L/min) 265 360 473 568 662 757
Pressure (psi)
83 89 93 95 98 96 (bar) 5.7 6.1 6.4 6.6 6.8 6.6
Reaction (lbs)
32 45 61 74 87 99 (kgf) 15 20 28 34 39 45
Mid-Matic 75 psi (5 bar) Version
Curve
A B C D E F A B C D E F
Flow (gpm)
70 95 125 150 175 200 (L/min) 265 360 473 568 662 757
Pressure (psi)
68 74 75 78 77 82 (bar) 4.7 5.1 5.2 5.4 5.3 5.7
Reaction (lbs)
29 41 55 67 78 91 (kgf) 13 19 25 30 35 41
100 psi/ 7 bar Version
MID-MATIC 100 PSI (7 BAR) VERSION
Automatic Pressure Control Flow Range:
70-200 gpm @ 100 psi
260-760 L/min @ 7 bar
MODEL
HM-VPGI
SHOWN
75 psi/ 5 bar Version
MID-MATIC 75 PSI (5 BAR) VERSION
Automatic Pressure Control Flow Range:
70-200 gpm @ 75 psi
260-760 L/min @ 5 bar
