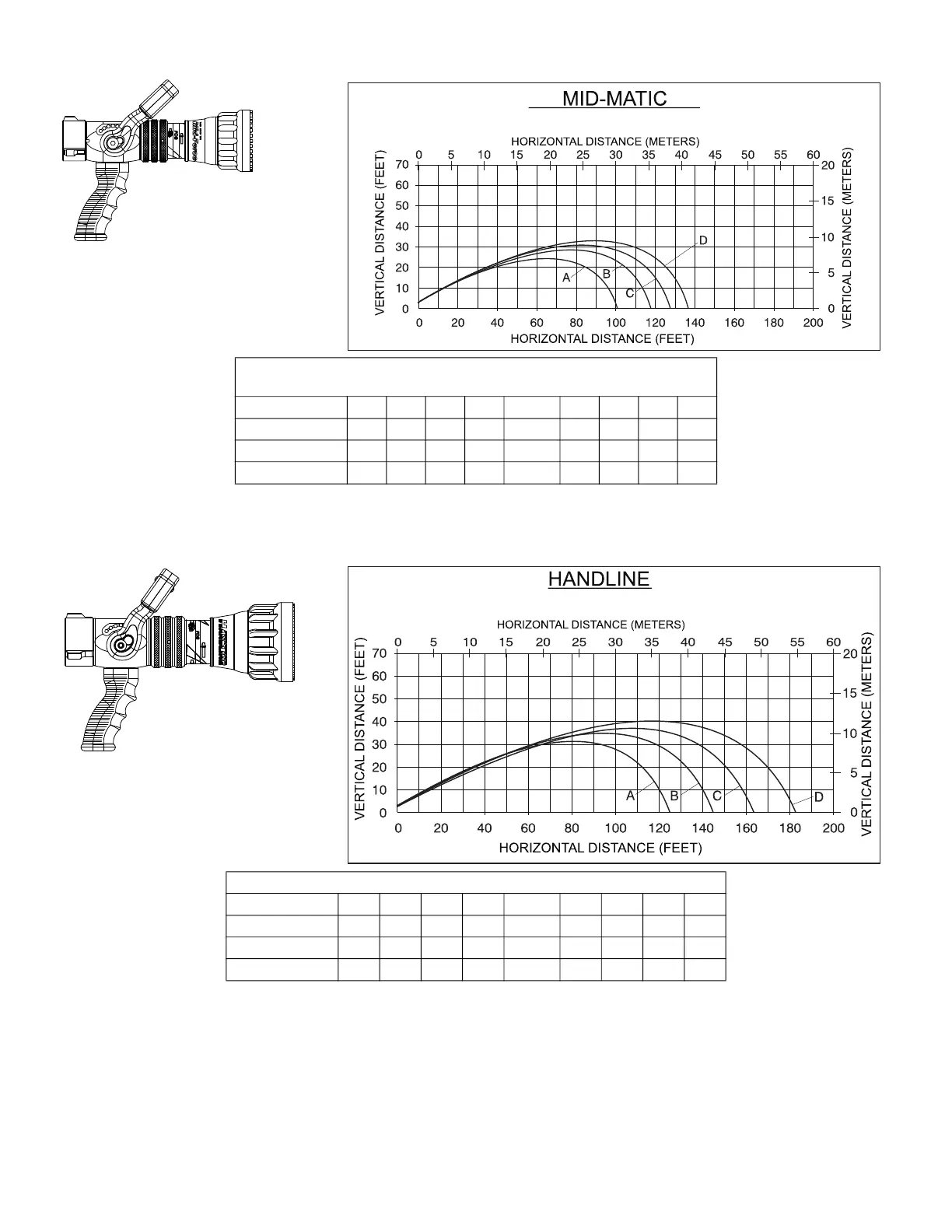

Figure 4.4E
Figure 4.4F
Mid-Matic
55 psi (3 bar) Version
Curve
A B C D A B C D
Flow (gpm)
70 125 150 180 (L/min) 265 473 568 681
Pressure (psi)
38 47 52 64 (bar) 2.6 3.2 3.6 4.4
Reaction (lbs)
22 43 55 73 (kgf) 10 20 25 33
Handline 100 psi (7 bar) Version
Curve
A B C D A B C D
Flow (gpm)
95 125 200 300 (L/min) 360 473 757 1136
Pressure (psi)
91 100 100 126 (bar) 6.3 6.9 6.9 8.7
Reaction (lbs)
46 63 101 170 (kgf) 21 29 46 77
MID-MATIC 55 PSI (3 BAR) VERSION
Automatic Pressure Control Flow Range:
70-180 gpm @ 55 psi
260-680 L/min @ 3 bar
MODEL
HM-VPGI
SHOWN
55 psi/ 3 bar Version
MODEL
H-VPGI
SHOWN
HANDLINE 100 PSI (7 BAR) VERSION
Automatic Pressure Control Flow Range:
95-300 gpm @ 100 psi
360-1150 L/min @ 7 bar
100 psi/ 7 bar Version

TFT ULTIMATIC Specifications

General

Brand	TFT
Model	ULTIMATIC
Category	Firefighting Equipment
Language	English
