Installation and Maintenance
Service Manual
Caution: discharge the refrigerant
completely before removal.

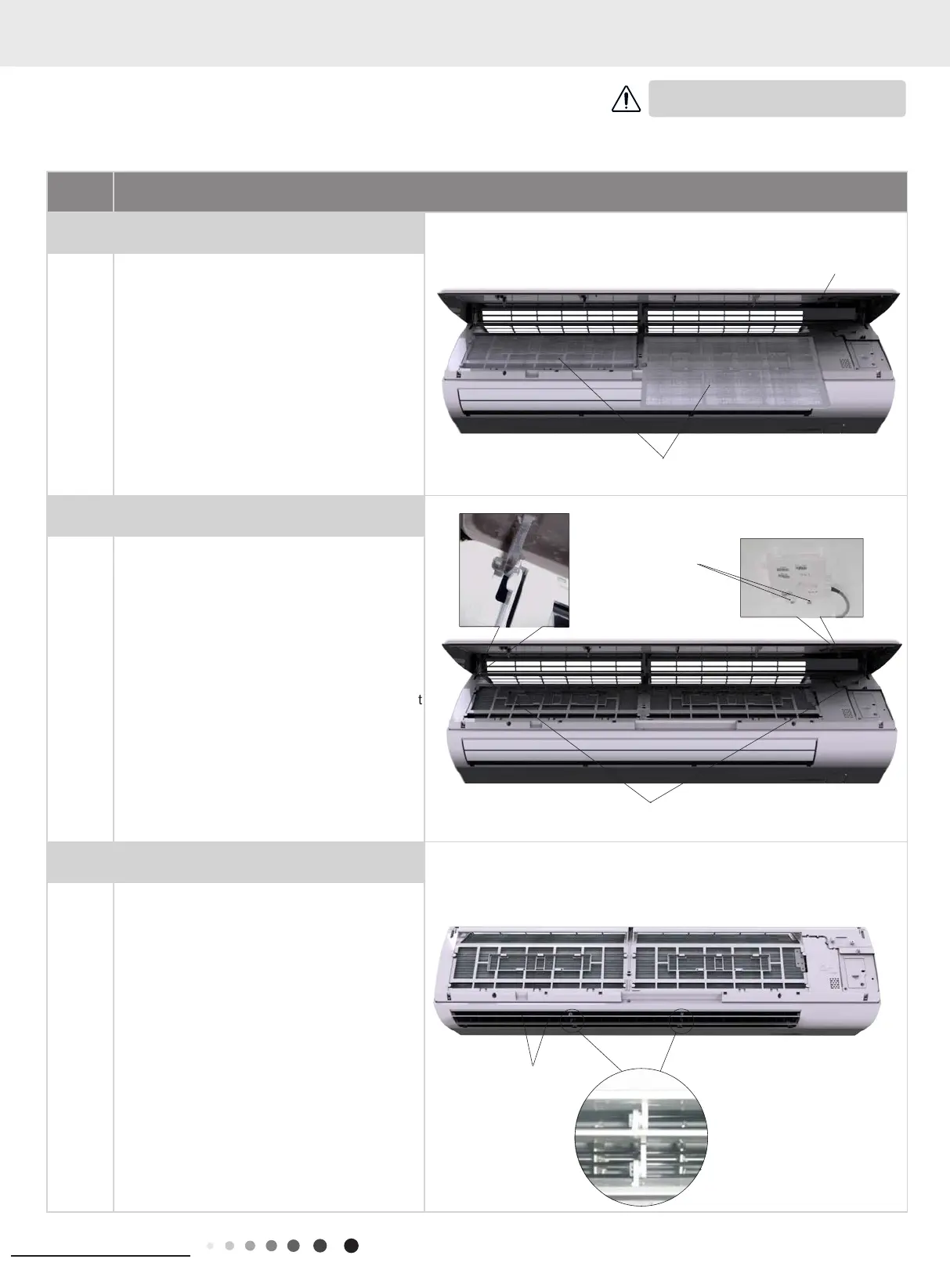

Step Procedure
1.Remove lter
Open the pane,Push up and pull down the lter
2.Remove panel
Remove screws xing display, and then remove
the display.
Separate the panel rotation shaft from the groove
xing the front panel and then removes the front
panel.
3.Remove horizontal louver
Bend the horizontal louver with hand and
then separate the horizontal louver from the
crankshaft of step motor to remove it.
Panel
Left lter and right ler
Horizontal louver
Screws
Panel rotation
GWART36S3
GWHART36S3
11. Removal Procedure
To Next Page
