Step Procedure

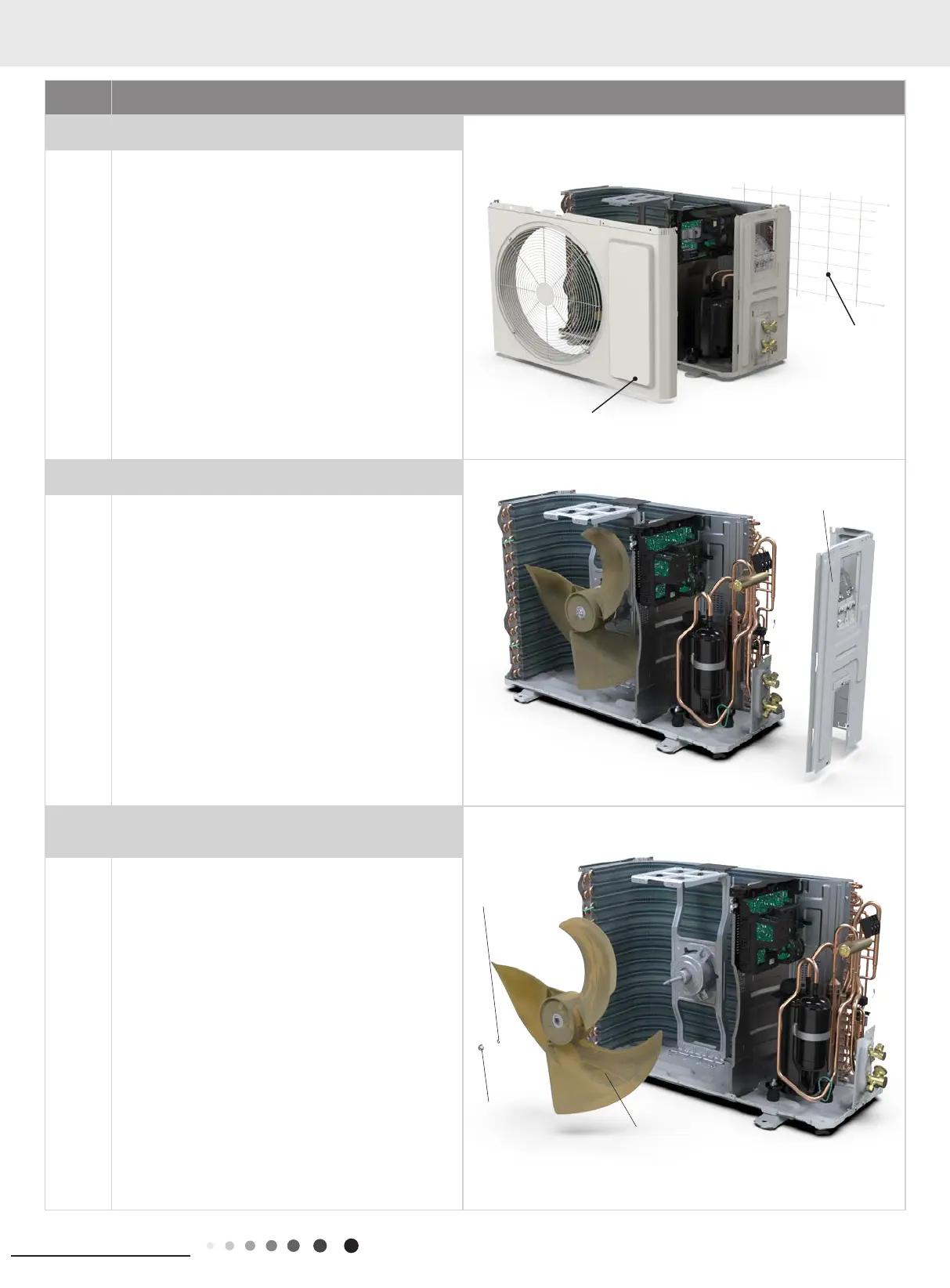

4. Remove front panel assy and Rear Grill
Remove connection screws connecting the front panel
assy and Rear Grill, and then remove the front panel
assy and Rear Grill.
5. Remove right side plate
Remove connection screws connecting the right side
plate with the valve support and the electric box. Then
remove the right side plate.
6. Remove the nut and gasket on the blade and then
remove the axial ow blade
Remove the nut and gasket on the blade and then
remove the axial ow blade.
Rear Grill
Front panel assy
right side plate
axial ow
gasket
nut
