35
Technical Information
Service Manual
GWART36S3 GWHART36S3

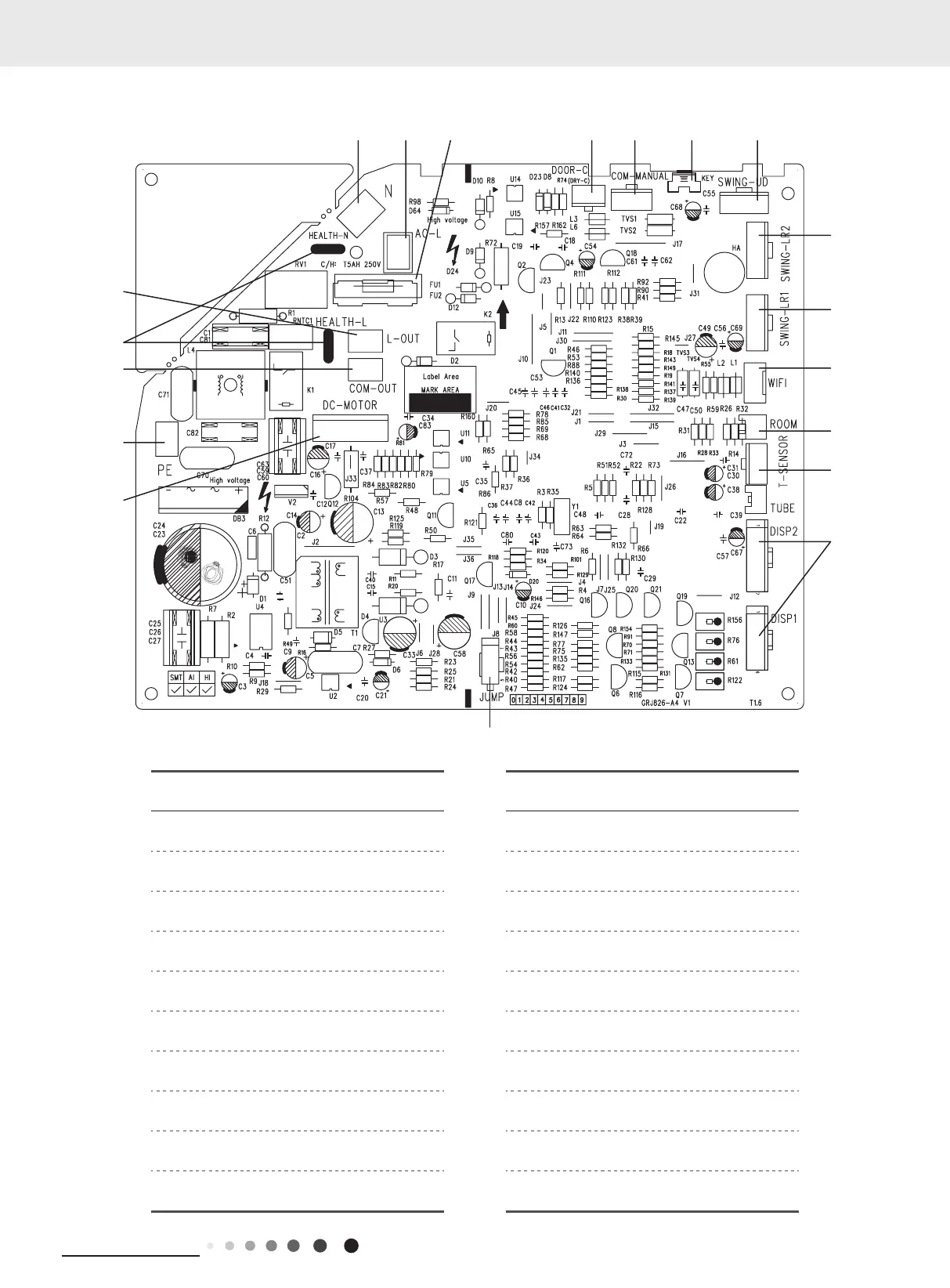

5. Electrical Part
123456 7
8
9
10
11
12
13
14
15
16
17
18
19
No. Name No. Name
1 Neutral wire 11 Ambient temperature sensor
2 Live wire 12 Tube temperature sensor
3 Fuse 13 Display board
4 Door control 14 Jumper cap
5 Wired controller 15 DC fan
6 Auto button 16 Earthing wire
7 Up&down swing 17 Communication wire
8 Left&right swing 2 18 Live line for AC contactor
9 Left&right swing 1 19 Cold plasma
10 WiFi
