Outdoor Unit
5. Electrical Part
GRHART09ASA2 GRART12ASA2 GRHART12ASA2
2 3 4
1
11
9
8
7
6
5
10

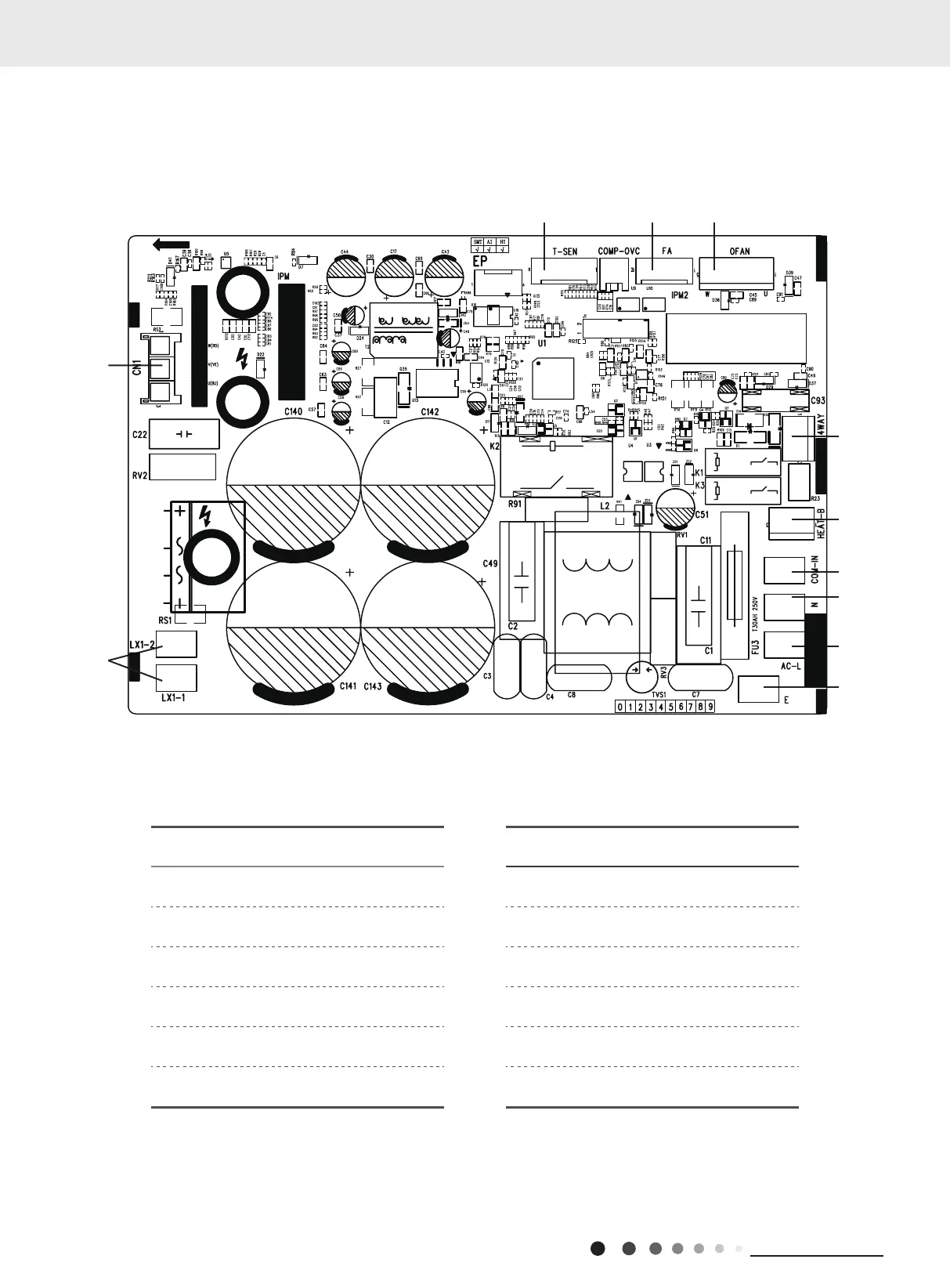

No. Name No. Name
1 Three-phase terminal of compressor 7 Terminal of communication wire
2 Temperature sensor 8 Neutral wire
3 Electronic expansion valve 9 Live wire
4 Outdoor fan 10 Earthing wire
5 4-way valve 11 Interface of reactor
6 Electric heating of chasssis
