TGM YAP1FF - Page 90

87
Installation and Maintenance
Service Manual
36
35
1
10
2
3
4
5
6
7
8
9
11
12
13
14
15
16
18
19
20
21
25
26
27
28
29
32
31
24
33
34
37
38 39
22
23
17
30
10
GWART18S2 GWHART18S2
The component picture is only for reference; please refer to the actual product.
NO. Description
1 Front Panel
2 Filter Sub-Assy
3 Decoration board(left and right)
4 Front Case
5 Guide Louver
6 Axile Bush
7 Air Louver(Manual)
8 Helicoid Tongue
9 Left Axile Bush
10 Display Board
11 Rear Case assy
12 Rubber Plug (Water Tray)
13 O-Gasket sub-assy of Bearing
NO. Description
14 O-Gasket of Cross Fan Bearing
15 Evaporator Support
16 Evaporator Assy
17 Cross Flow Fan
18 Fan Motor
19 Motor Press Plate
20 Wall Mounting Frame
21 Connecting pipe clamp
22 Crank
23 Stepping Motor
24 Drainage Hose
25 Electric Box Assy
26 Lower Shield of Electric Box
Some models may not contain some parts, please refer to the actual product.
NO. Description
27 Electric Box
28 Jumper
29 Main Board
30 Terminal Board
31 Electric Box Cover
32 Shield Cover of Electric Box
33 Screw Cover
34 Electric Box Cover2
35 Power Cord
36 Connecting Cable
37 Remote Controller
38 Cold Plasma Generator
39 Detecting plate(WIFI)

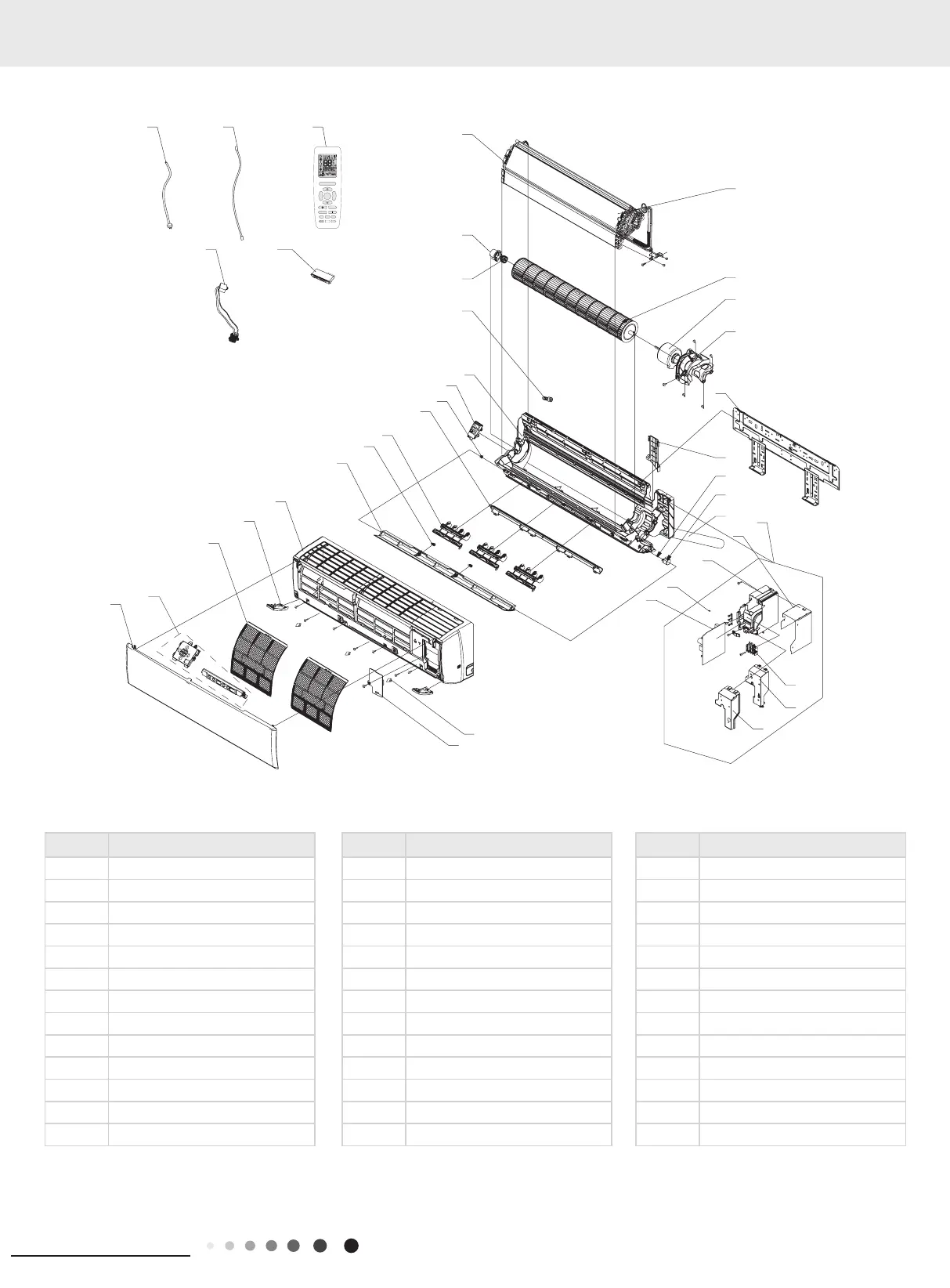

10. Exploded View and Parts List
ON/OFF
MODE
I FEEL T-ON T-OFF
TURBO
TEMP
CLOCK
LIGHT
X-FAN
SLEEP
FAN
