TGM YAP1FF - Page 91

88
Installation and Maintenance
Service Manual
The component picture is only for reference; please refer to the actual product.
Some models may not contain some parts, please refer to the actual product.
36
35
37
38
1
8
2
3
4
6
7
9
10
12
13
14
15
17
18
19
20
21
22
23
24
26
27
28
29
30
31
33
5
25
11
16
34
8
32
39
NO. Description
1 Front Panel
2 Filter Sub-Assy
3 Screw Cover
4 Front Case
5 Air Louver(Manual)
6 Helicoid Tongue
7 Left Axile Bush
8 Display Board
9 Rear Case assy
10 Rubber Plug (Water Tray)
11 Ring of Bearing
12 O-Gasket sub-assy of Bearing
13 Cross Flow Fan
NO. Description
14 Evaporator Support
15 Evaporator Assy
16 Cold Plasma Generator
17 Wall Mounting Frame
18 Motor Press Plate
19 Fan Motor
20 Connecting pipe clamp
21 Drainage Hose
22 Stepping Motor
23 Crank
24 Guide Louver
25 Axile Bush
26 Electric Box
NO. Description
27 Terminal Board
28 Electric Box Cover2
29 Main Board
30 Shield Cover of Electric Box
31 Electric Box Cover
32 Jumper
33 Lower Shield of Electric Box
34 Electric Box Assy
35 Power Cord
36 Connecting Cable
37 Temperature Sensor
38 Remote Controller
39 Detecting plate(WIFI)

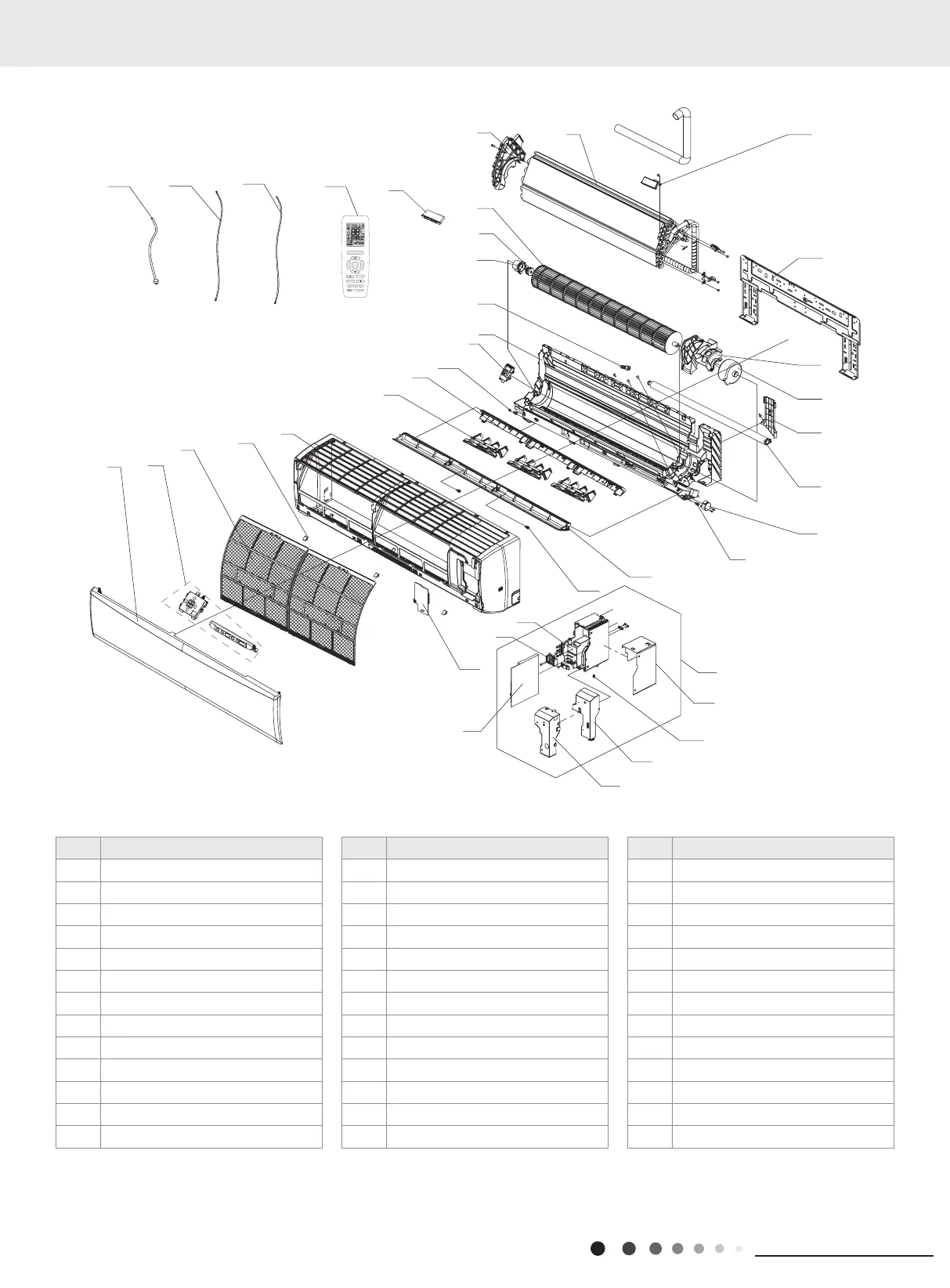

10. Exploded View and Parts List
GWART24S2 GWHART24S2
ON/OFF
MODE
I FEEL T-ON T-OFF
TURBO
TEMP
CLOCK
LIGHT
X-FAN
SLEEP
FAN
