Manual No. 0-5056 6-21 Power Supply Parts List

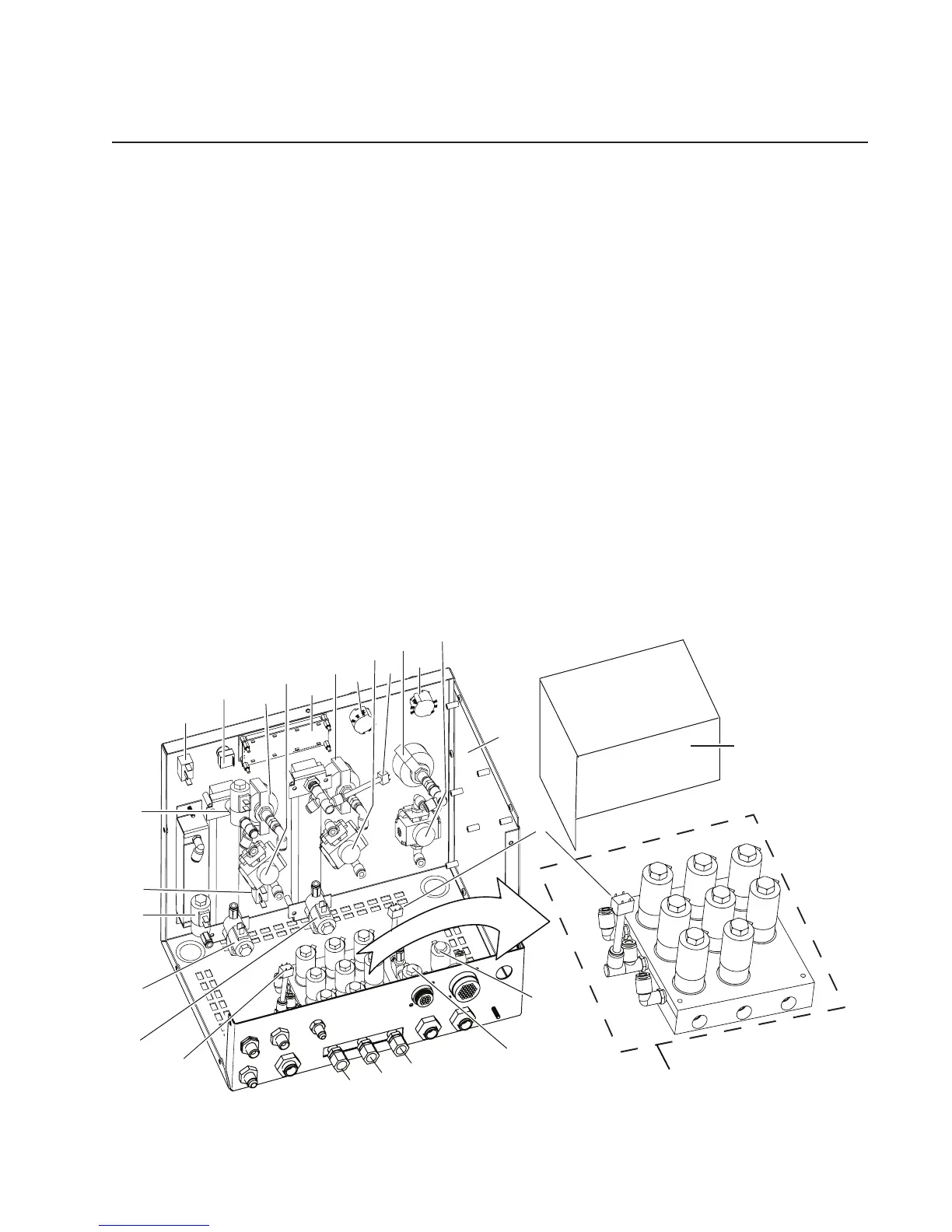

6.18 Gas Control Module (GCM-2010) Replacement Parts
Item # Qty Description Catalog #
1 6 7W Solenoid for O2 use 9-9393
2 1 Gas Selection Manifold Assembly 9-9391
3 1 Check Valve, 1/4 NPT .5 PSI 9-9390
4 1 Mode Switch Assembly 9-9406
5 1 Gas Selection Switch Assembly 9-9403
6 1 LCD Interface PC Board 9-9408
7 1 Rotary Encoder (Switch) 9-9398
8 1 Toggle Switch 9-3426
9 1 Solenoid / Logic PC Board 9-9409
10 1 Cover 9-9410
11 3 Gauge, 0-160 psi 8-6800
12 1 Regulator 8-3223
13 3 Pressure Transducer and wire harness 100 PSI 9-9509
14 2 Pressure Transducer and wire harness 250 PSI 9-9508
NOT SHOWN:
1 Torch Valve Assembly Wire Harness (J13 to J57) 9-9399
1 Power Supply Connection Wire Harness (J3 & J5 to J56) 9-9400
1 LCD Interface PC Board Wire Harness 9-9401
1 Rotary Encoder (Switch) Wire Harness 9-9402
1 Solenoid Drive A Wire Harness (J12 to Solenoids 1-6) 9-9404
1 Solenoid Drive B Wire Harness (J1 to Solenoids 7-12) 9-9405
Art # A-07030_AB
2
1
1
1
1
3
7
8
4
5
6
3
3
1
1
8
9
10
12
12
14
11
11
13
12
14
11
