Thermal Dynamics 38 Cutmaster User Manual

PARTS LISTS 6-2 Manual 0-2964
6.04 Power Supply Replacement Parts
Qty Description Catalog #
1 Regulator/Filter Replacement Filter Element 9-4414
6.05 Options and Accessories
Qty Description Catalog #
1 Single - Stage Filter Kit (includes Filter & Hose) 7-7507
1 Replacement Filter Body 9-7740
1 Replacement Filter Hose (not shown) 9-7742
2 Replacement Filter Element 9-7741
1 Multi - Purpose Cart 7-8888
Art # A-02476
Filter
Element
(Cat. No. 9-7741)
Housing
Cover
Barbed
Fitting
Spring
Assembled Filter
O-ring
(Cat. No. 9-7743)

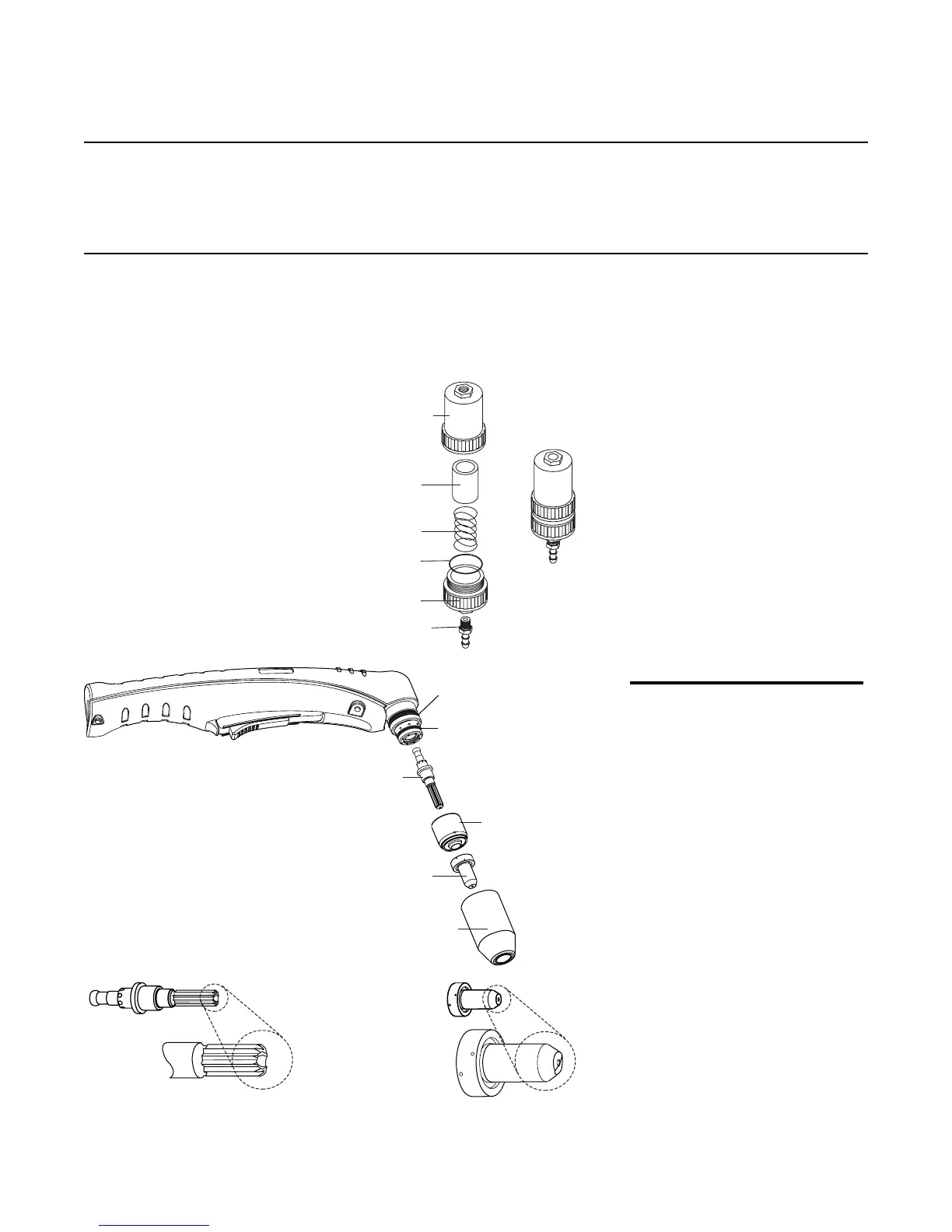

6.06 Torch Consumables
Single - Stage Air Filter
Art # A-03409
Large O-Ring,
Cat. No. 8-3487
Small O-Ring,
Cat. No. 8-3486
Electrode, Cat. No. 9-8215
Start Cartridge,
Cat. No. 9-8213
30Amp Cutting Tip, Cat. No. 9-8206
Shield Cup, Cat. No. 9-8218
Worn Electrode
Worn Tip
NOTE
When operating the torch in a normal
condition, a small amount of gas vents
through the gap between the shield cup
and torch handle. Do not attempt to
over tighten the shield cup as irrepa-
rable damage to internal components
may result.
