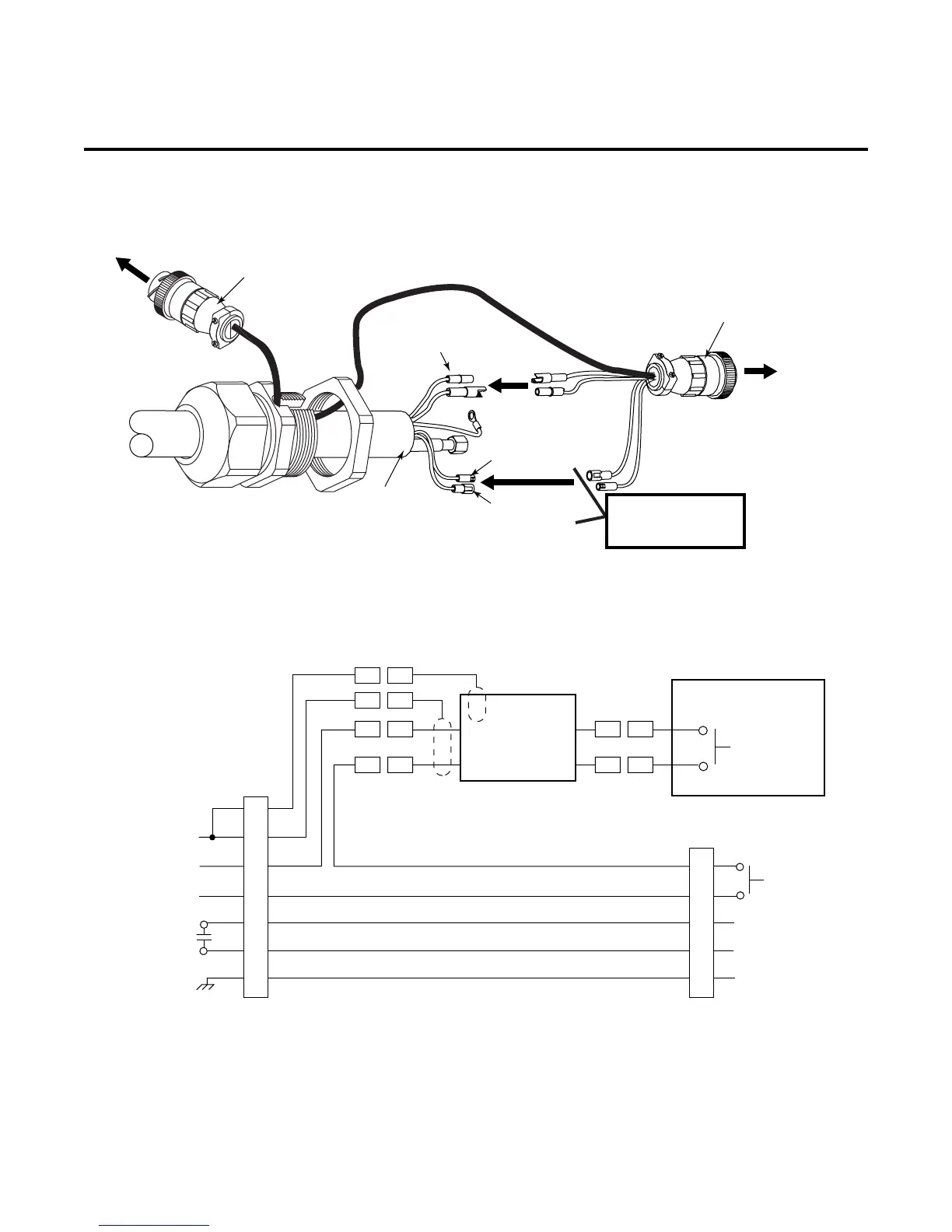

APPENDIX 3: TORCH CONTROL CABLE WIRING
DIAGRAM
Torch Control
Connectors
Torch Lead
Assembly
A-02801
Control Connector
Plug with Connectors
To Power Supply
Control Connector
To Torch
Control Device
Torch Control
Cable
Control Shield
Connector
Lead Shield
Connector
Connectors only on
Shielded Leads
2
1
3
4
12
14
13
Torch Control
Cable Connector
Remote Pendant/CNC
Cable Connector
Control
OK-To-Move
3
4
12
14
13
A-02821
Torch Leads
Torch Head
PIP Pin
PIP Pin
Shield Cup
Mate & Lock
Connectors
Mate & Lock
Connectors
Pendant Ground
Shield
Return
Power Supply
Control
OK-To-Move
Relay
FOR MECHANIZED SYSTEMS
