INTRODUCTION 2-2 Manual 0-2956

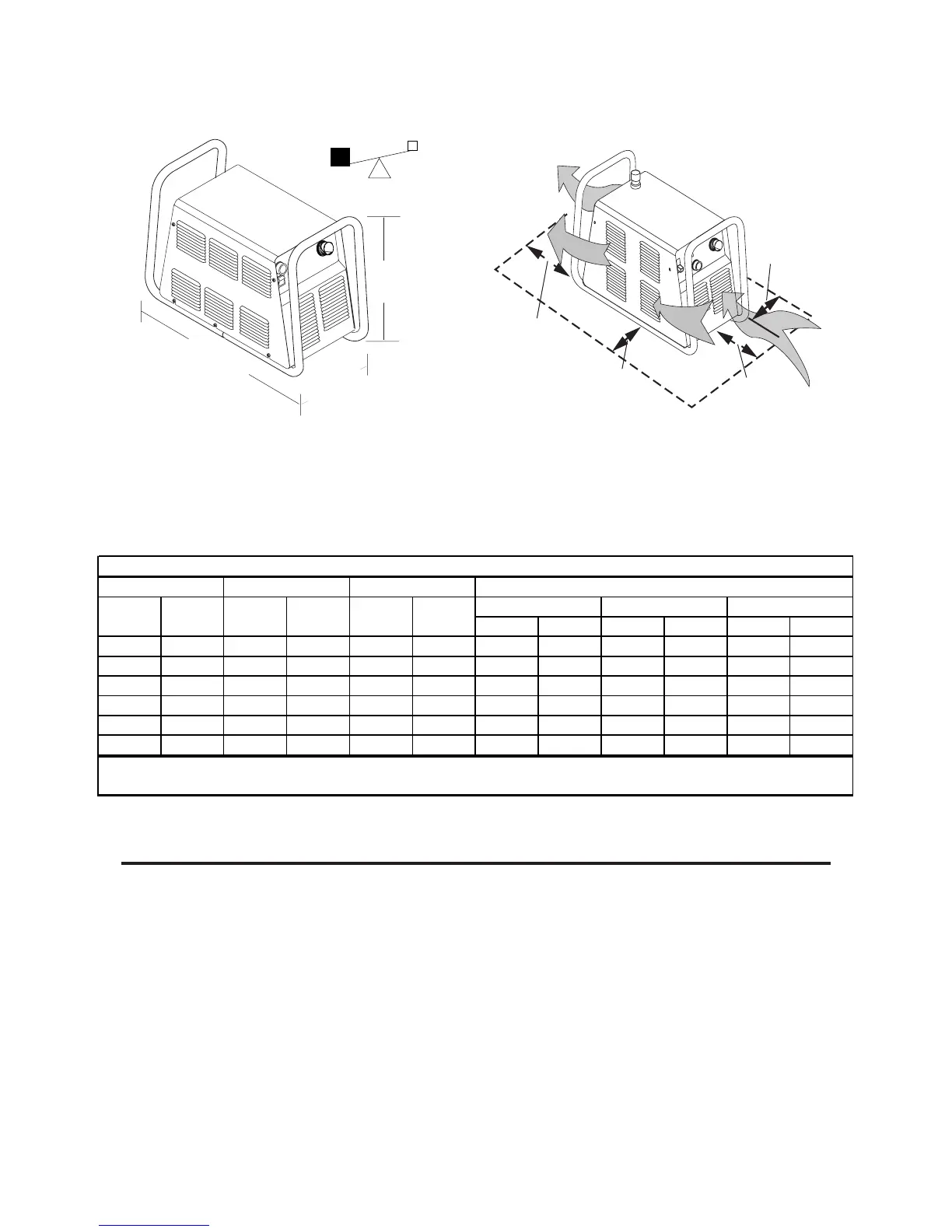

Power Supply Dimensions & Weight Ventilation Clearance Requirements
A-03572
27.5 in / 696 mm
12.4 in /
315 mm
17.3 in /
439 mm
83 lb / 37.6 kg
Art # A-03379
6"
150 mm
24"
0.6 m
6"
150 mm
6"
150 mm
2.03 Input Wiring Specifications
Input Power Input Current Input Suggested Sizes (See Notes)
Voltage Freq. 1-Ph 3-Ph 1-Ph 3-Ph Fuse (Amps) Wire (AWG) Wire (Canada)
(Volts) (Hz) (kVA) (kVA) (Amps) (Amps) 1-Ph 3-Ph 1-Ph 3-Ph 1-Ph 3-Ph
208 50/60 11.8 57 60 6 6
230 50/60 11.8 52 60 6 6
400 50/60 11.1 16 20 10 10
460 60 11.7 27 30 10 10
460 60 10.8 16 20 12 12
600 60 10.5 10 15 12 12
Line Voltages with Suggested Circuit Protection and Wire Sizes
Based on National Electric Code and Canadian Electrical Code
CutMaster 81 Input Wiring Requirements
NOTES
Refer to Local and National Codes or local authority having jurisdiction for proper wiring requirements.
Cable size is de-rated based on the Duty Cycle of the equipment.
The suggested sizes are based on flexible power cable with power plug installations. For hard-wired installations
refer to local or national codes.
Cable conductor temperature used is 167° F (75° C).
An energy limiting fuse UL Class RK-1 (examples: BUSS LPS / LPN-RK or Gould-Shawmut AZK-A6K) should be
used to minimize damage to Plasma Cutting, Welding or power distribution equipment.
NEVER use replaceable element fuses like UL Class H, or "one-time" fuses like UL Class K5.
