In-Range Temperature Differential Setting
The In-Range Temperature Differential Setting is
set with Screen 5. This setting determines the
range used in monitering in-range and out of
range conditions.
The following settings are available for
Fahrenheit or Celcius readouts:
• Fahrenheit: 0.0 F (OFF), 6, 10, 14, and 18
degrees
• Celsius: 0.0 F (OFF), 3, 6, and 10 degrees

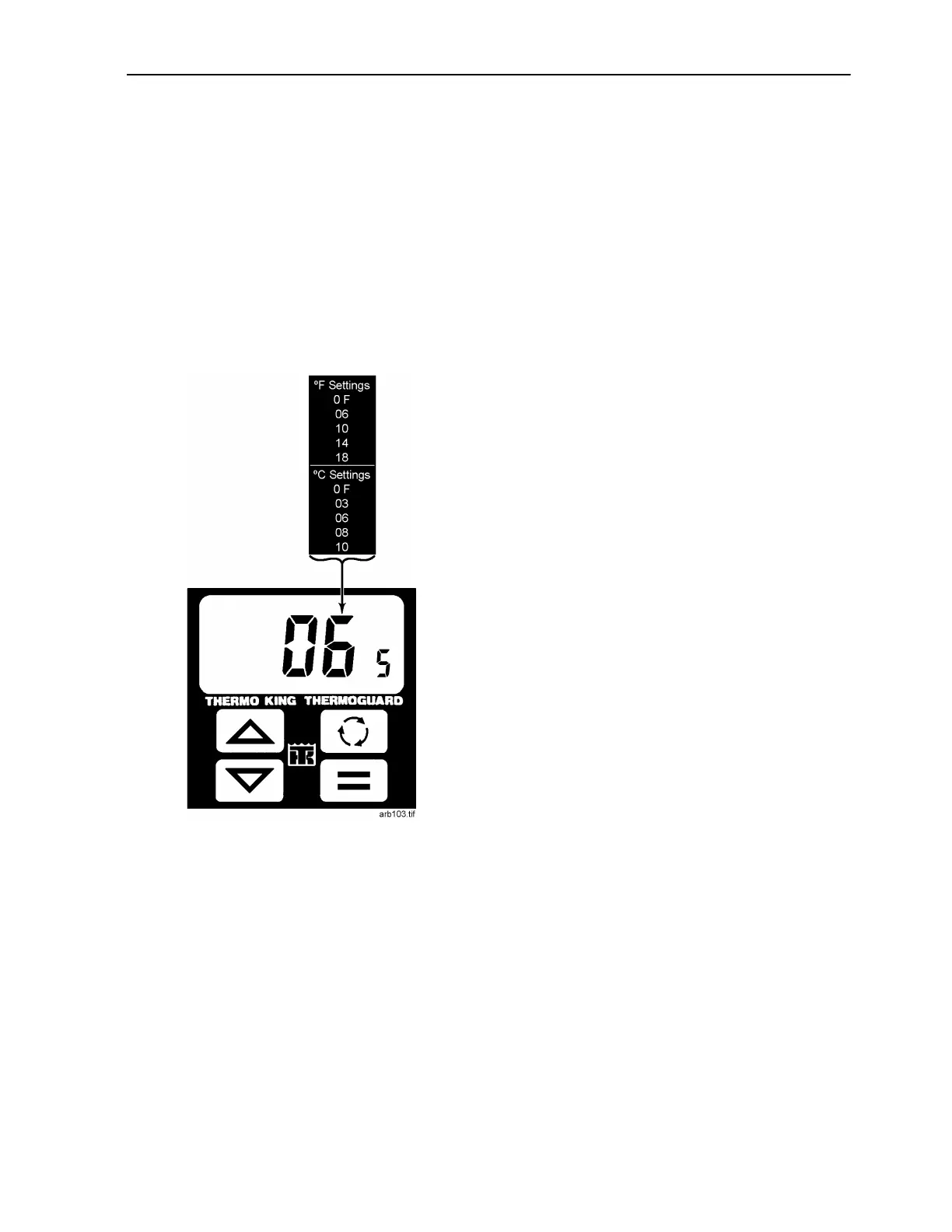

Figure 8: In-Range Temperature Differential Setting
Directions:
To determine the setting for Screen 5, choose the
temperature differential desired for the in-range
temperature interval.
Example:
To set an in-range temperature differential of 6
degrees above and below the setpoint, select the
number 6.
NOTE: The settings available automatically
correspond to the scale (F or C) chosen in
Display 1.
To Next Page
