Heracell 150i/240i 50115191_C_01-2018 157 Thermo Scientific
Chapter 10 Maintenance

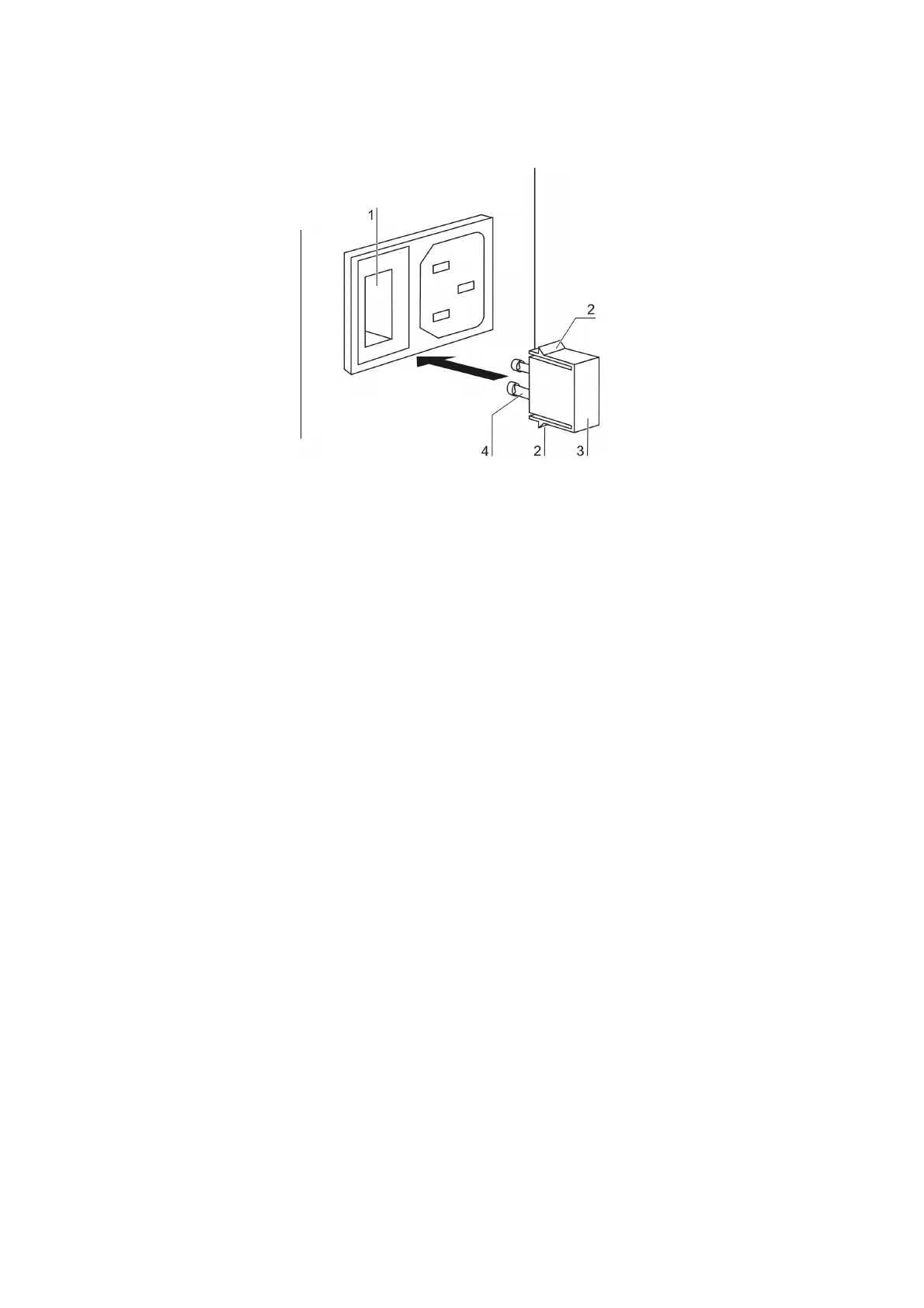

Figure. 76. Device fuse replacement
• Time delay fuses, 6.3 A (5x20 mm)
1. The fuse holder is secured to the fuse compartment [1] using two locking tabs [2].
2. To remove the fuse holder, squeeze the two locking tabs and pull the holder [3] out of the fuse
compartment.
3. Remove the faulty fuse from the fuse holder and install the new fuse.
4. Slide the fuse holder into the fuse compartment and press the holder on until the locking tabs
are fully engaged.
10.11. Replacing the door seal
The door seal (magnetic seal) [3] of the outer door is located in the retaining slot. No tools are
required to replace the seal.
