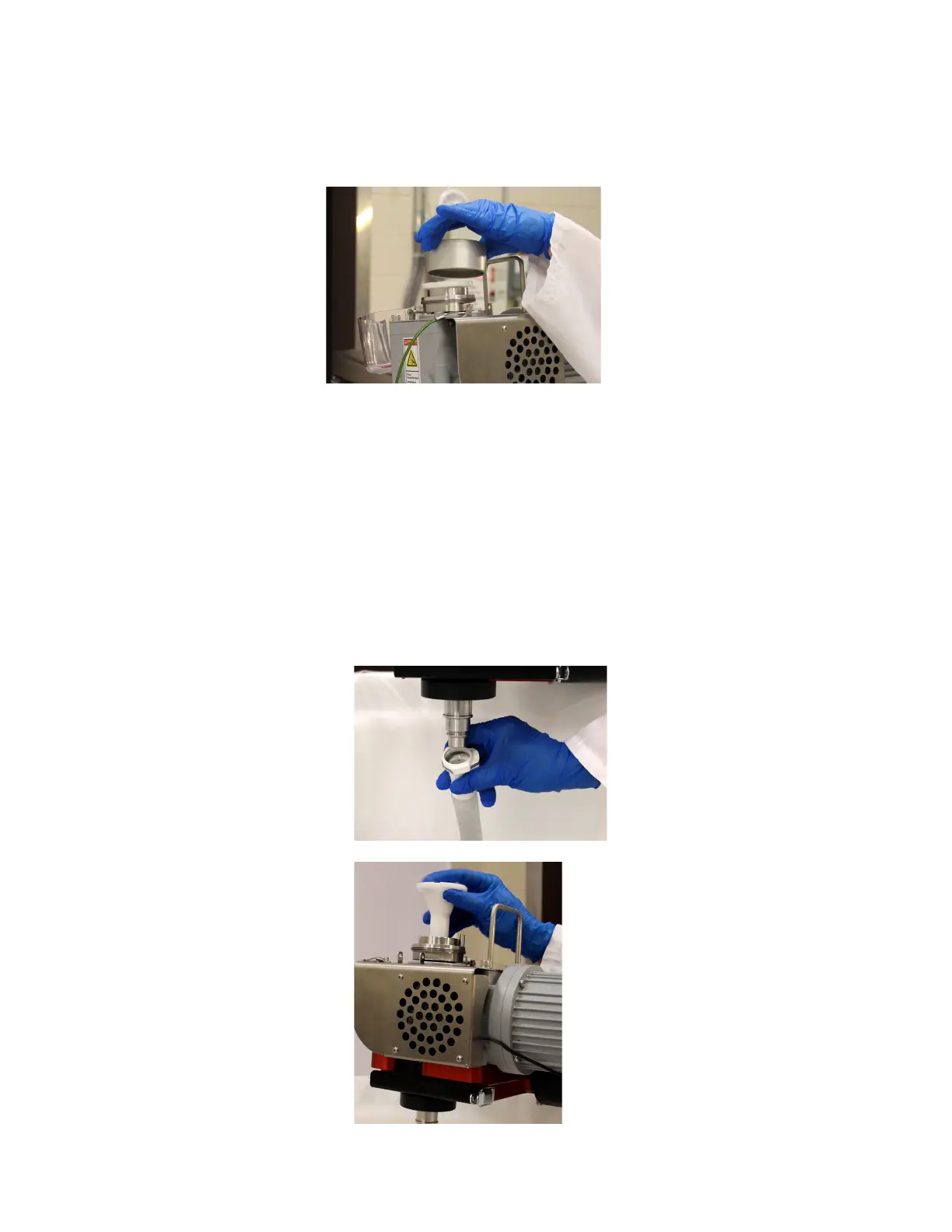

2. Unscrew the threaded cap covering the hollow pass-through of
the motor (Figure 2.29).
Figure 2.29. Removing the
cap
3. Use the following steps to insert the drive shaft through the hollow
pass-through of the mixing assembly:
• Attach the drive shaft and impeller sleeve to the bottom of the
bearing hub, using the quick connect fitting (Figure 2.30).
• Use two hands to load the drive shaft through the top of the
motor assembly. A slight back-and-forth twisting motion will
aid in insertion.
• When approximately 5.1 cm (2 in.) of shaft remains, twist
slightly to engage the impeller (Figure 2.31).
Figure 2.30. Drive shaft
sleeve installation
Figure 2.31. Inserting the
drive shaft
Thermo Scientific
Chapter 2 | Setup and operating information
HyPerforma DS 300 Single‑Use Mixer User's Guide | 33
