4.2.1 Closed-top BPC for 50 L, 100 L, and 200 L
drums
Drain line
Addition line 1
Addition line 2
Sleeve and
impeller
Recirculating/sample
line
Vent filter
Description Tubing set (ID x OD x L) End treatment
Bottom drain line
12.7 mm (1/2 in.) x 19.1 mm (3/4 in.) x 3.41 m (11.17 ft.)
Polycarbonate quick connect 12.7 mm
(1/2 in.) insert (MPX) and cap
Addition line 1
9.5 mm (3/8 in.) x 15.9 mm (5/8 in.) x 0.61 m (2 ft.)
Polycarbonate quick connect 9.5 mm
(3/8 in.) body (MPC) and plug
Addition line 2
19.1 mm (3/4 in.) x 25.4 mm (1 in.) x 1.22 m (4 ft.)
38.1 mm (1.5 in.) Tri-clamp with 19.1
mm (3/4 in.) hose barb, with gasket
Steril-Enz
™
IIH
Vent filter
6.4 mm (1/4 in.) x 12.7 mm (1/2 in.) x 10.1 cm (3.98 in.)
Hydrophobic vent with Emflon
™
II, HB
Recirculation/sample
line
12.7 mm (1/2 in.) x 19.1 mm (3/4 in.) x 0.91 m (2.99 ft.) splits to
12.7 mm (1/2 in.) x 19.1 mm (3/4 in.) x 30.5 cm (12.01 in.) and
12.7 mm (1/2 in.) x 19.1 mm (3/4 in.) x 0.61 m (2 ft.)
Polycarbonate quick connect 12.7
mm (1/2 in.) body (MPX) and plug
polycarbonate quick connect 12.7 mm
(1/2 in.) insert (MPX) and cap

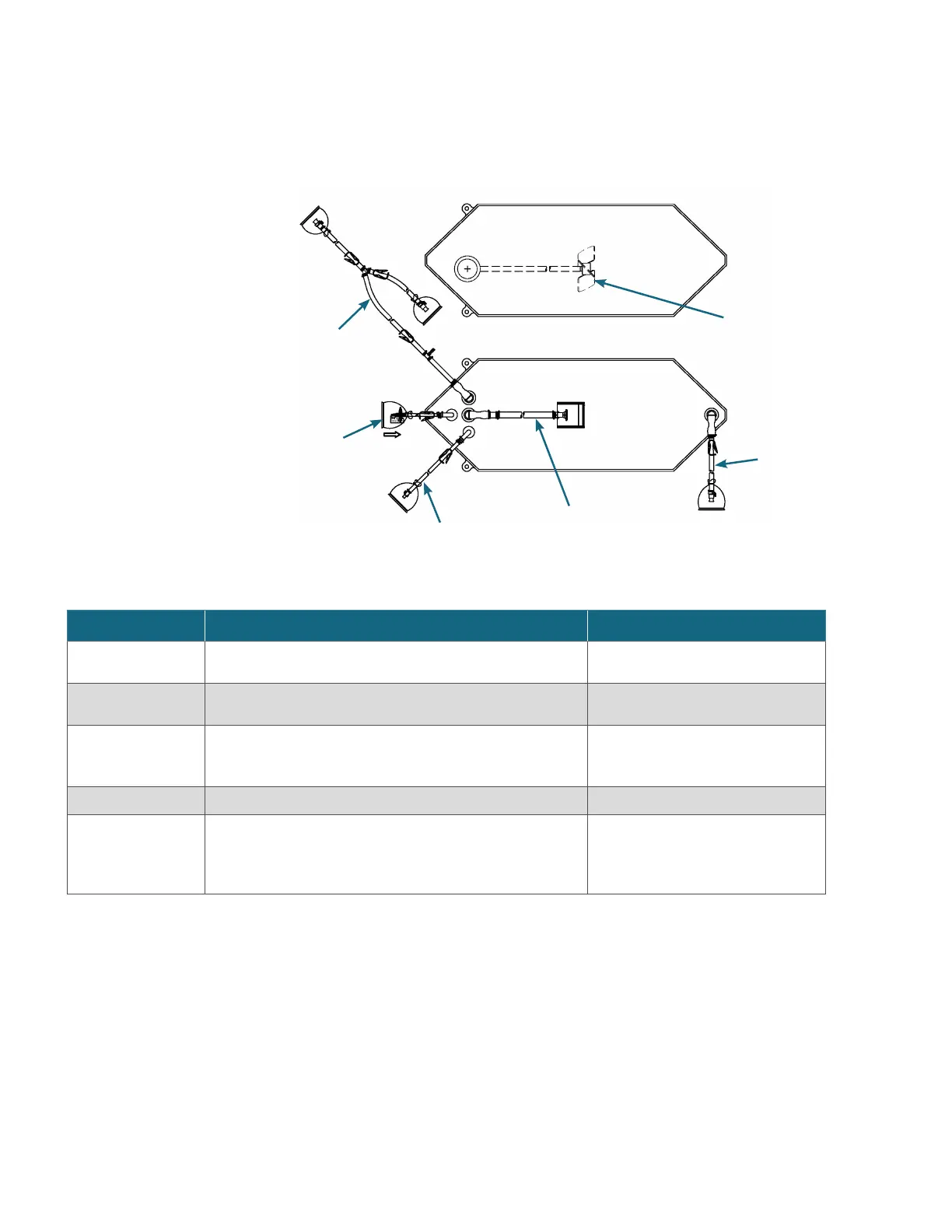

Figure 4.2. Closed‑top BPC
