4.1 Hardware features and specifications
4.1.1 Har d wa re f eatur e s
See Figure 4.1 below for design features of the DS 300 hardware.

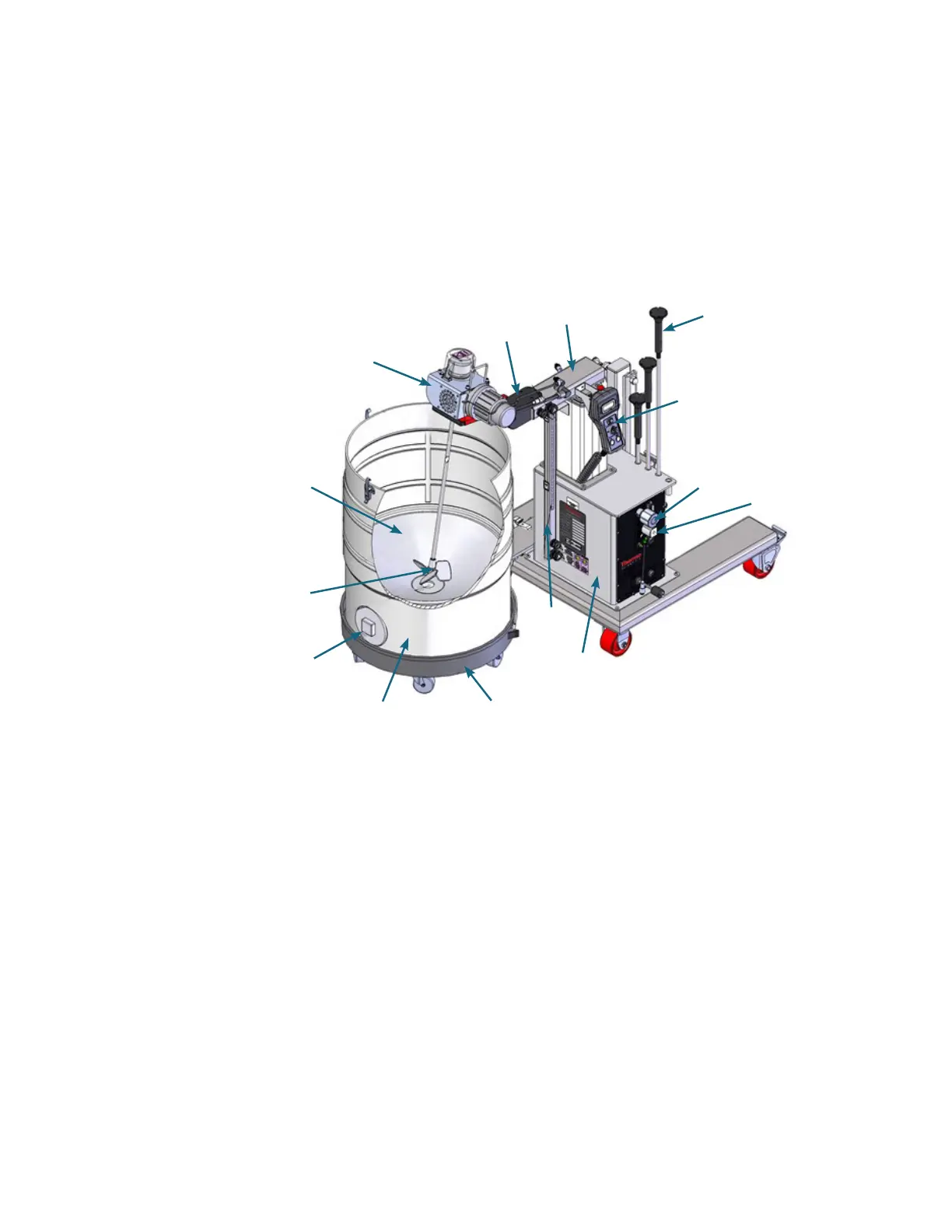

Figure 4.1. HyPerforma S.U.M.
model DS 300 docking station
and drum (front view)
1
2
3
4
5
6
7
8
9
10
11
12
14
13
1. Motor assembly
2. Vertical lift
3. Horizontal support arm
4. Drive shaft (stored)
5. Handheld control device
6. E-Stop reset button
7. Main disconnect switch
8. E-Box
9. Height indicator and cable
management housing
10. Dolly
11. Plastic drum
12. Liquid drain port
13. Mounted drive shaft, sleeve,
and impeller
14. Conical insert
