Thermo Scientific Micro-Tech 9201 - Four Wire Load-Cell, With Sense Leads; Six-Wire Load-Cell With Sense Leads

Maintenance and Troubleshooting
Load-Cell Problems
4-6 Micro-Tech 9101/9201 Reference Manual, Rev J Thermo Fisher Scientific
Please refer to the figure below for more information about four-wire
load cells with field sense leads. Model 9101 Sense Jumpers shown
below. See “Appendix A – Premium A/D Jumper Locations” for Model
9201 jumper locations.

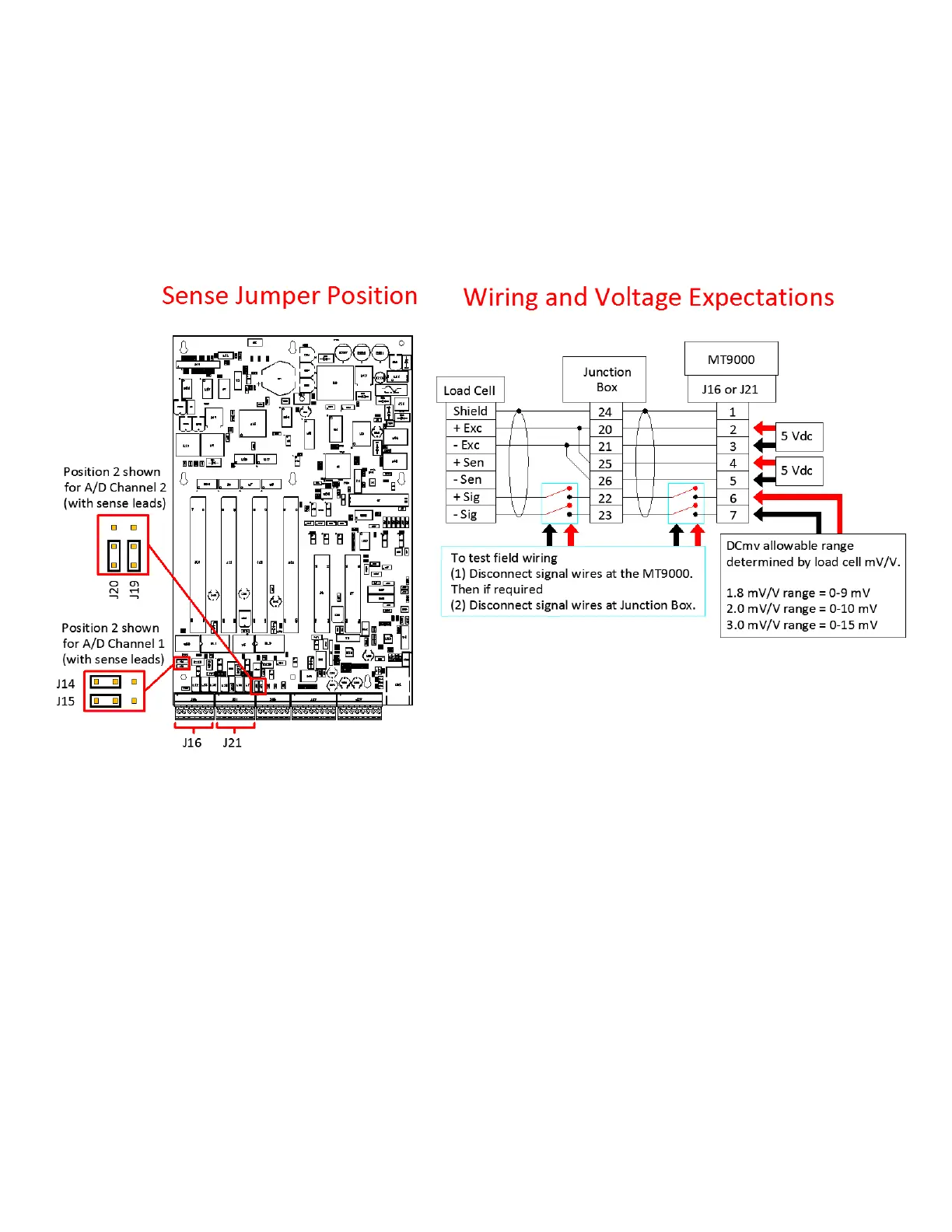

Figure 4–2. Four-Wire Load-Cell, with Sense Leads
Please refer to the instructions and figure below, when troubleshooting
six-wire load cells with field sense leads. Model 9101 Sense Jumpers
shown below. See “Appendix A – Premium A/D Jumper Locations” for
Model 9201 jumper locations.
Four Wire Load-
Cell
, With Sense
Leads
Six-Wire Load-
Cell W
ith Sense
Leads
