Overview of the Micro-Tech
1-2 Micro-Tech 9101/9201 Reference Manual, Rev J Thermo Fisher Scientific
The Micro-Tech has provisions for four outputs on the digital output
board, plus one DC output from the mother board—making a total of
five, one of which can be defined as a Fault output. In addition, many
automatic and check functions are available to monitor its calibration
functions and maintenance schedule.
There are two models of Micro-Tech: the field-mounted version
(Figure 1–1) and the panel-mounted version (Figure 1–2). For the
panel-mounted version, provide a cut-out (see Figure 1–2 for
dimensions) in the panel and, after removing the holding brackets and
installing the gasket, insert the Micro-Tech.

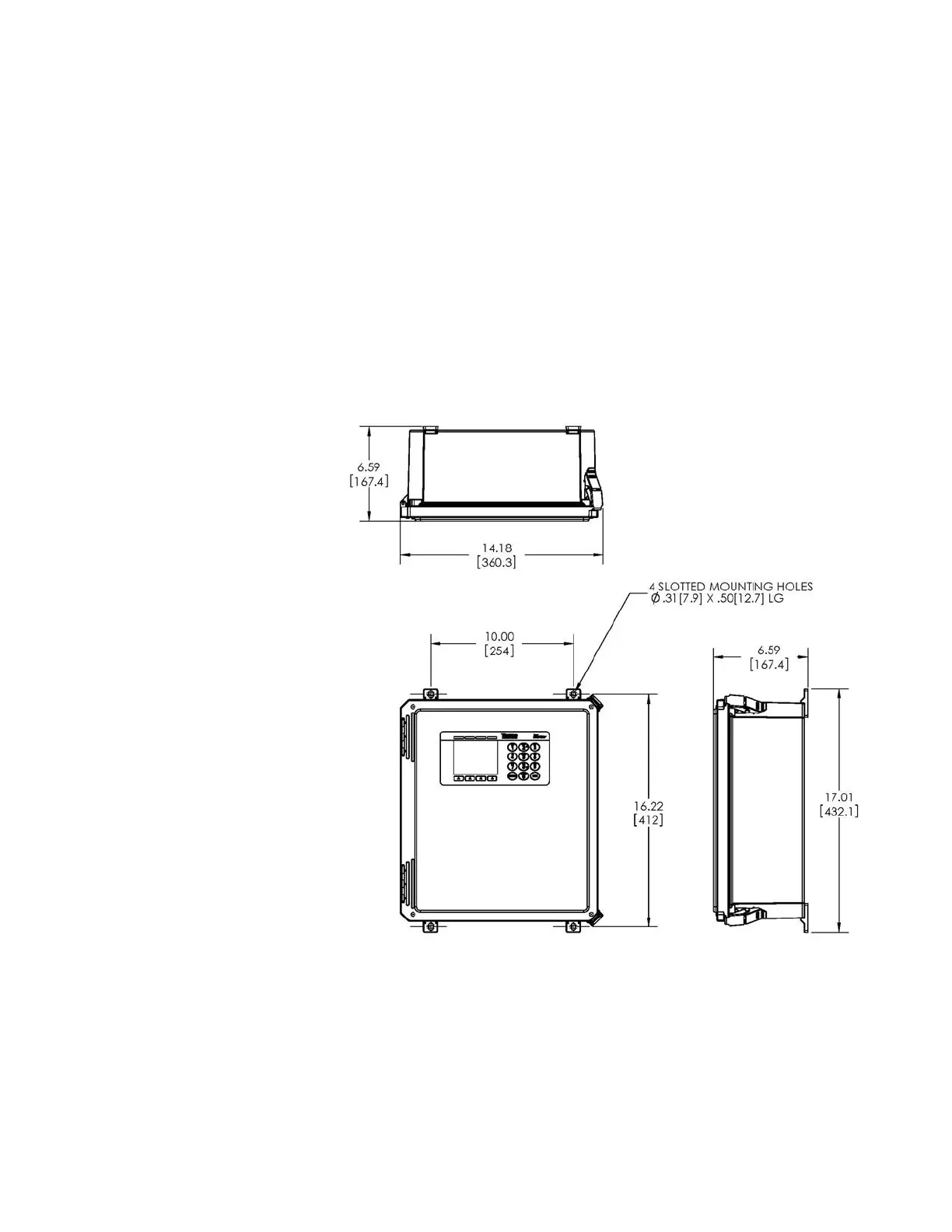

Figure 1–1. Field-Mounted Version of the Micro-Tech
