ThinkPad Edge E440 - 2030 LCD Cables and LCD-Control-Card Cable

•“1080Wireless-WANcardorM.2solid-statedrive”onpage71
•“1090Wireless-LAN/Bluetoothcard”onpage73
•“1100Coin-cellbattery”onpage74
•“1120Keyboard”onpage77
•“1130Keyboardbezelassembly”onpage83
•“1150Systemboard”onpage87
•“1170dc-in/Ethenetcardbracketanddc-in/Ethenetcard”onpage91
•“1200LCDunit”onpage96
•“2010LCDhingecapandLCDpanel/screenassembly”onpage112

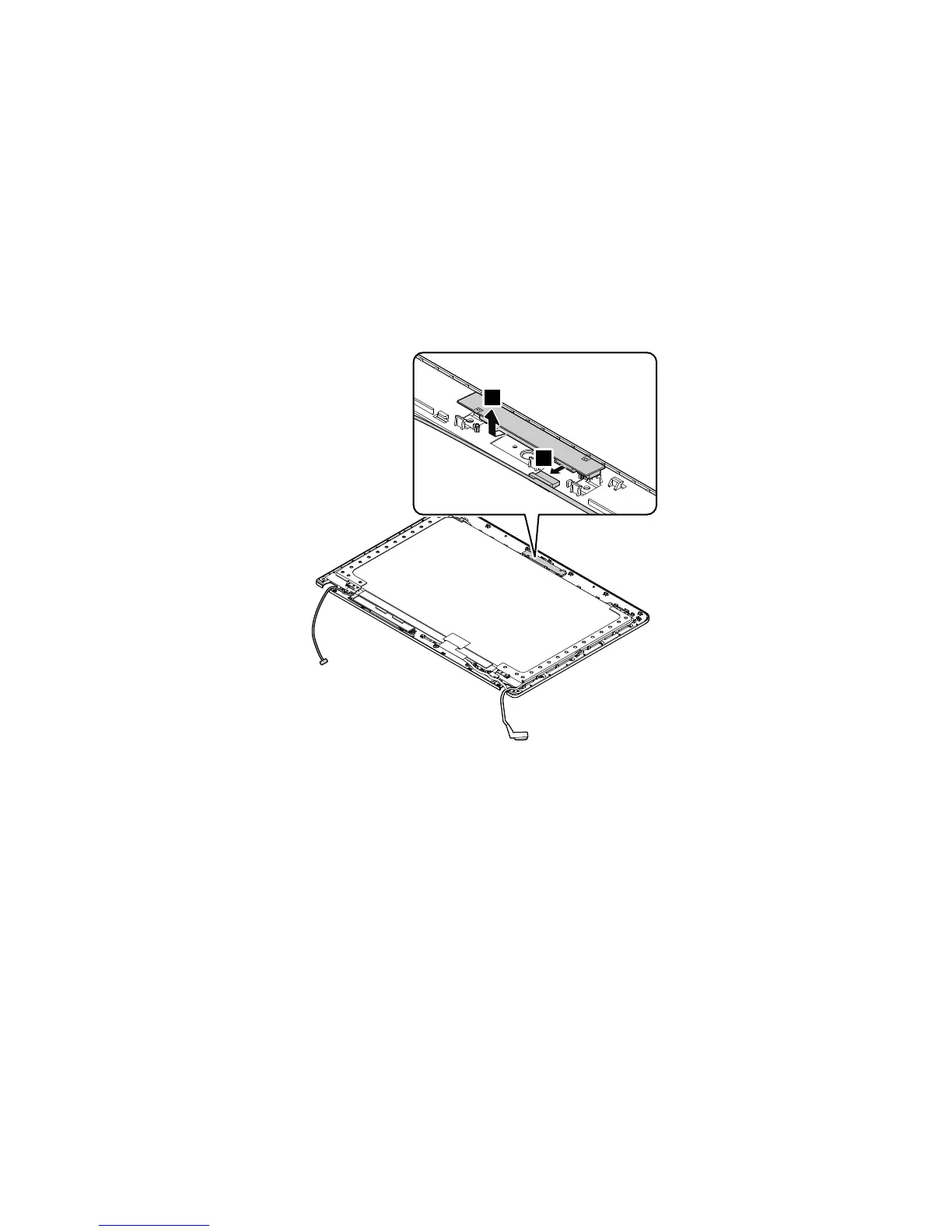

Removalstepsofthecamera/microphonemodule
Note:Thecameraisonlyavailableonsomemodels.
2
1
Wheninstalling:Ensurethatthecamera/microphonemoduleisattachedrmly.
2030LCDcablesandLCD-control-cardcable
Foraccess,removetheseFRUsinorder:
•“1010Lenovo-OneLink-connectorcover”onpage65
•“1020Batterypack”onpage65
•“1030Largebottomcover”onpage66
•“1040Smallbottomcover”onpage67
•“1050Opticaldriveoroptical-drivebaybezel”onpage68
•“1070Harddiskdrivewithbracketorsolid-statedrivewithbracket”onpage69
•“1080Wireless-WANcardorM.2solid-statedrive”onpage71
•“1090Wireless-LAN/Bluetoothcard”onpage73
•“1100Coin-cellbattery”onpage74
•“1120Keyboard”onpage77
•“1130Keyboardbezelassembly”onpage83
•“1150Systemboard”onpage87
•“1170dc-in/Ethenetcardbracketanddc-in/Ethenetcard”onpage91
•“1200LCDunit”onpage96
•“2010LCDhingecapandLCDpanel/screenassembly”onpage112
Chapter9.RemovingorreplacingaFRU115
