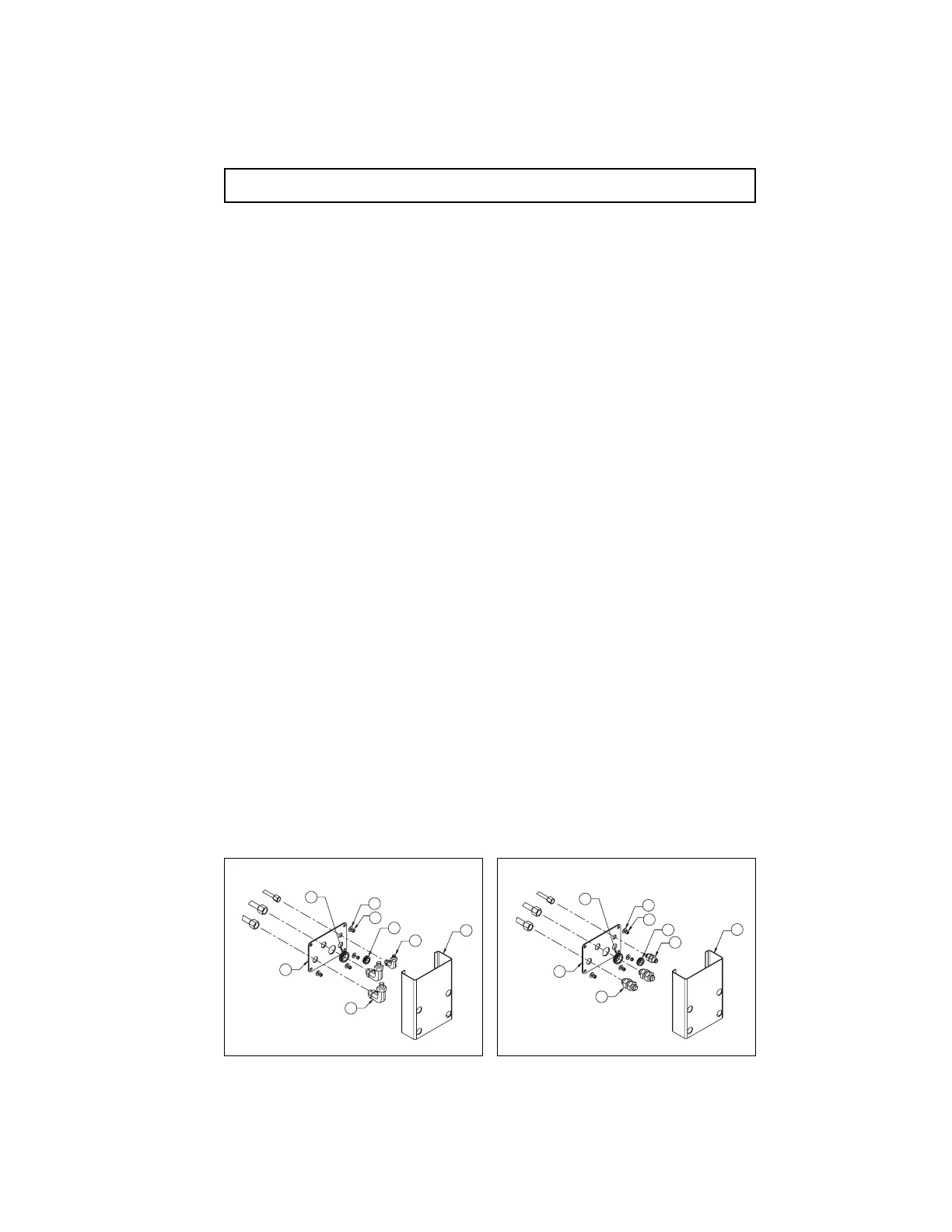

Item Part No. Qty. Description
1. 964930 1 Hose, Hydraulic 3/8 x 106”
(Shakerhead motor case drain to rear bulkhead)
2. 37017 1 Elbow, 90º
3. 50248 1 Pump, Gear Hydraulic Assy
4. 33882 1 Connector
* 1193 2 Bolt, Hex 3/8” x 1” (secure pump to housing)
* 50273 2 Washer, Hardened Flat 3/8” (secure pump to housing)
5. 26834 1 Elbow, 90º
6. 50252 1 Hydraulic Control Valve w/Handles
* 44171 3 Bolt, Hex 1/4” x 2 3/4” (secure valve)
* 1650 3 Washer, Flat, 1/4” (secure valve)
* 6645 3 Nut, Nylok 1/4” (secure valve)
7. 19238 2 Connector
8. 19233 1 Connector
9. 26834 1 Elbow, 90º
10. 24478 2 Connector
11. 14866 1 Elbow, 90º
12. 45956 1 Cooler, Oil Assy
* 1643 4 Washer, Flat 3/8” (secure oil cooler)
* 50175 4 Nut, Flexlock 3/8” (secure oil cooler)
13. 14866 1 Elbow, 90º
14. 40564 1 Filter, Hydraulic Line, Spin-on
* 5170 2 Bolt, Hex 1/4” x 2” (secure filter)
* 1650 2 Washer, Flat 1/4” (secure filter)
* 2279 2 Washer, Lock 1/4” (secure filter)
15. 14866 2 Elbow, 90º
16. 21121 1 Connector
17. 50247 1 Motor, Hydraulic Assy
* 1240 2 Bolt, Hex 1/2” x 2” (secure shakerhead motor)
* 30485 2 Washer, Flat 1/2” (secure shakerhead motor)
* 50097 2 Nut, Flexlock 1/2” (secure shakerhead motor)
18. 38386 2 Elbow, 90º
19. 33153 1 Cylinder
20. 19235 1 Elbow, 90º
(Continued on the next page)
* Items not shown in diagram
HYDRAULIC CIRCUIT 7.3.1
103
