3. OPERATION
3.4 SET-UP
Follow the pre-starting inspection and
start-up instruction previous to this section.
The machine must be operated on a level
surface. If necessary, grade an area to
accommodate.
Make sure you leave adequate room for
maneuvering equipment around the
machine to remove tailings.
For efficient cycle times, keep the stock
piles as close as possible to prevent exces-
sive travel times.
1. Remove axle stop control pin and repo-
sition lever to operating position, rein-
stall safety pin (T90057 & T90011).
2. Start the engine and operate at the idle
position (T90075).
3. Disconnect both gladhand connections
and unplug the electrical harness from
the unit before moving the tow vehicle
(T90074 & T90009).
18

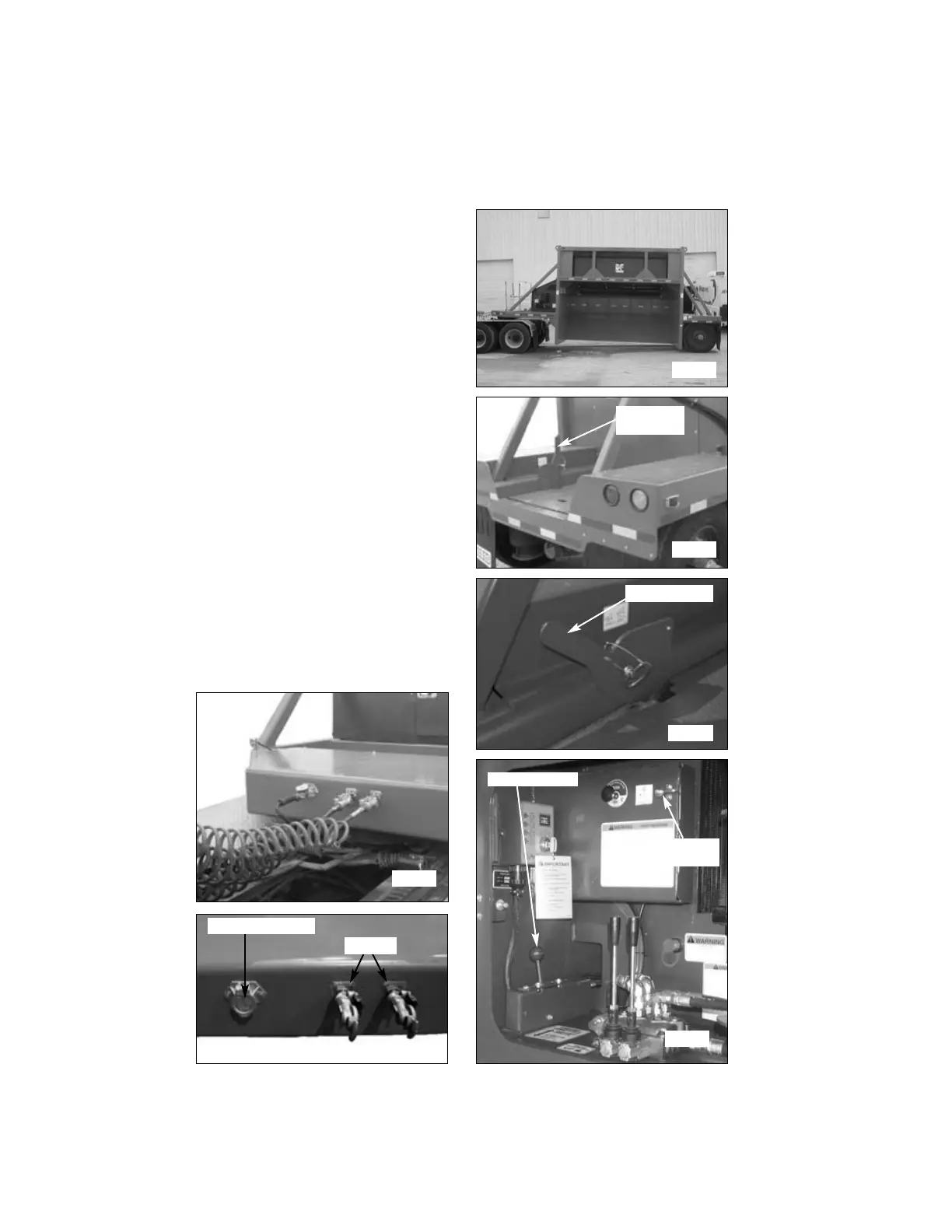

Set up at idle speed
T90075
T90009
T90011
Operating position
Gladhands
Disconnect electrical
T90072
T90057
T90074
Dump valve in
‘lower’ position
Non-operating
position
