FRONT
BULKHEAD
REAR
BULKHEAD
OIL
TANK
GEAR
PUMP
OIL
COOLER
SHAKER
MOTOR
CONTROL
VALVE
LIFT
CYLINDER
58
4. MAINTENANCE

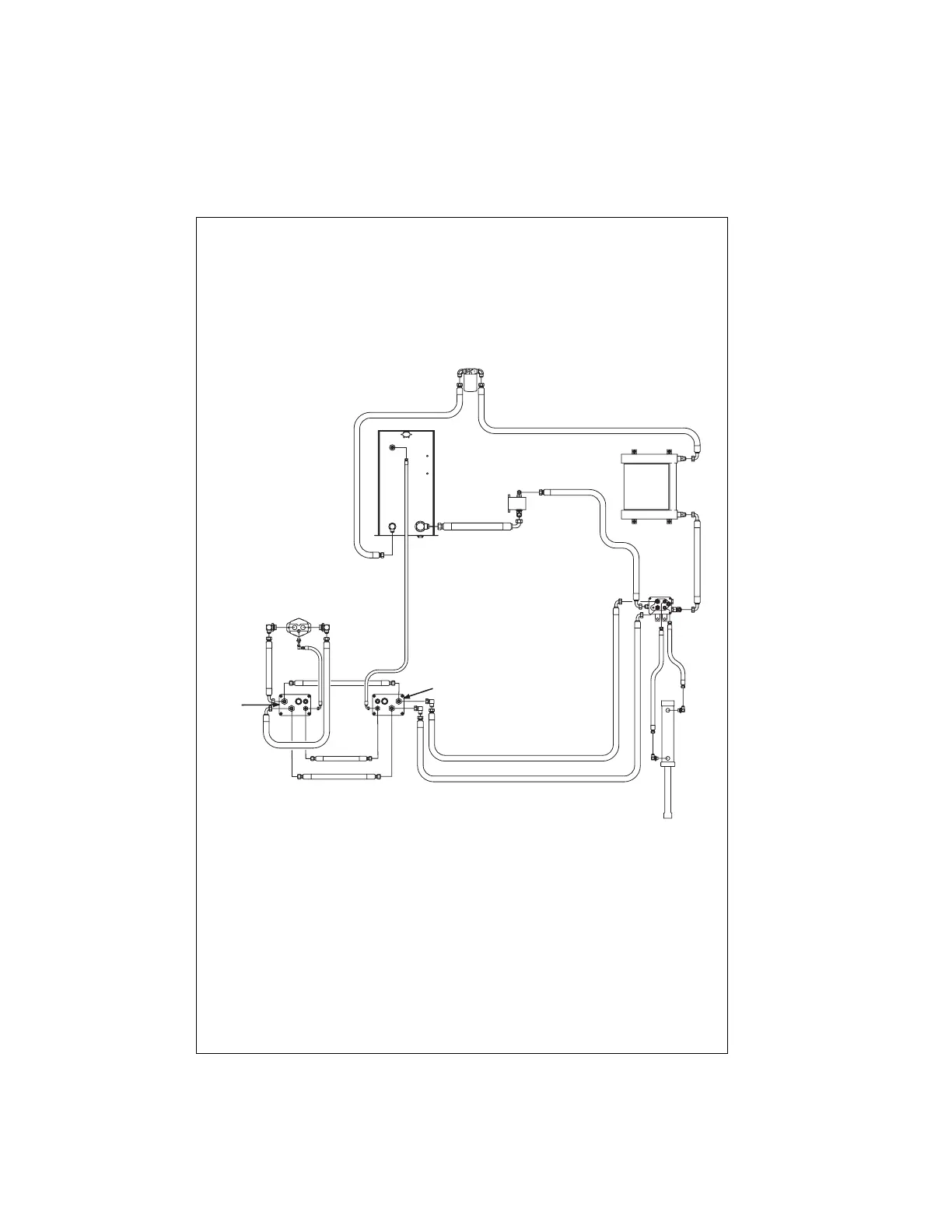

4.11 HYDRAULIC SCHEMATIC
S0261
