10" R.
19" R.
54
4.7 AS REQUIRED SERVICE
4.7G Brake Chambers
This machine is equipped with air/spring
brake chambers on the axles and tailgate
latch mechanism. Prior to removal make
sure air pressure is released and spring is
caged. (Refer to chamber manufacturer ser-
vice manual for proper caging and removal
instructions.)

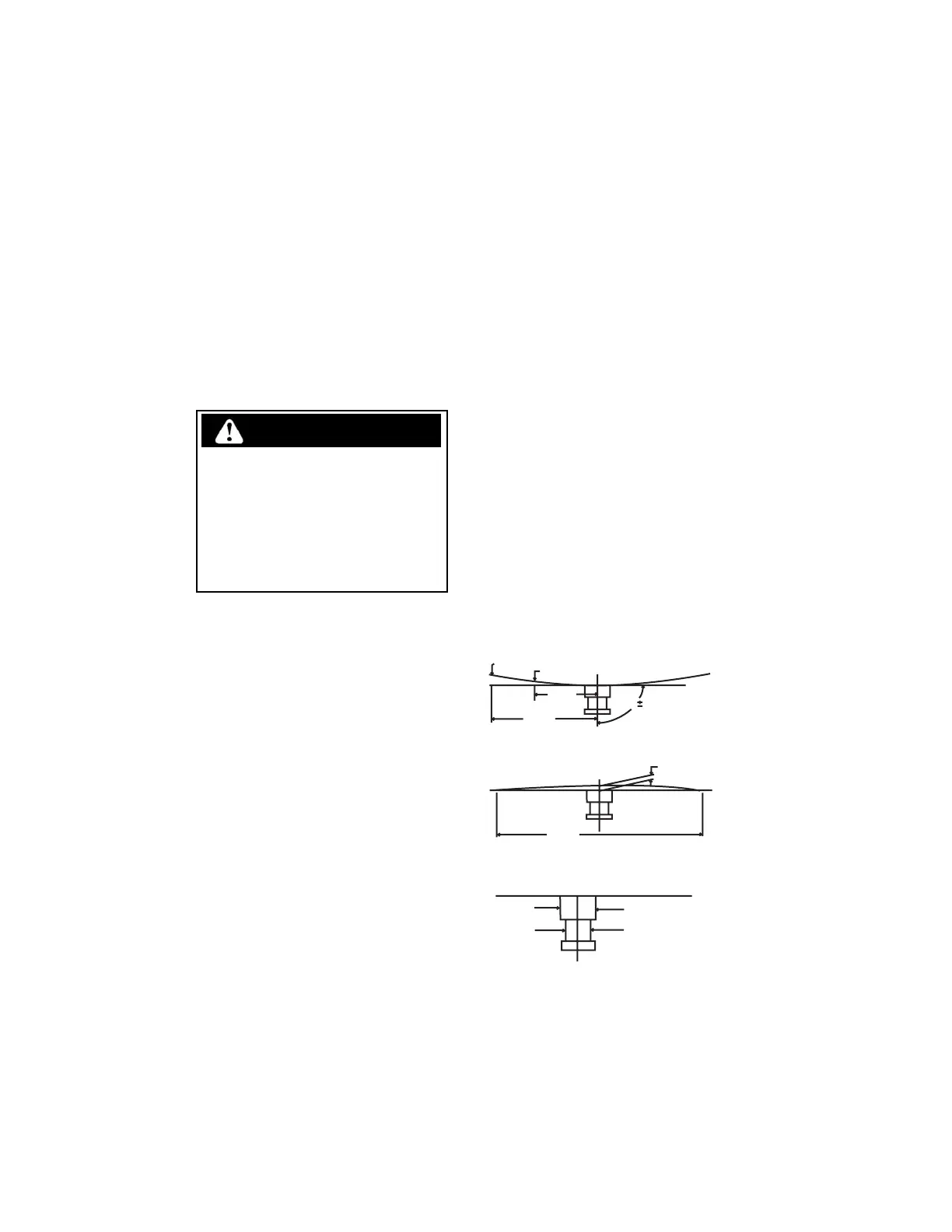

4.7H Kingpin Maintenance
Kingpins should be inspected semi-annual-
ly. To inspect the flatness of the bolster
plate use a 48" straight edge. The bolster
plate should be replaced if it is deformed
more than is shown below.
Inspect the diameter of the kingpin.
Replace the kingpin if it is worn 1/8" or
more, on either the 2" or 2-7/8" diameter
(in either direction).
Do not attempt to remove or service
the spring chamber clamp ring on any
spring brake actuator. A large spring
in the spring chamber having extreme
force could cause serious bodily injury
if it were suddenly released due to
inadvertent removal of this clamp.
CAUTION
.08" MAX.
2.88" DIA.
2.00" DIA.
