Item Part No. Qty. Description
21. 48736 1 Connector, Bulkhead
* 37849 40 Tie, Cable 14 1/2” x 5/16” (secure hoses)
22. 41620 1 Connector
23. 50417 2 Connector, Bulkhead
24. 39041 1 Connector, Bulkhead
25. 39042 1 Connector, Bulkhead, 90º
26. 29438 2 Connector
27. 50264 2 Grommet, 1 1/4” x 1/4” x 1 7/8” x 9/16”
28. 50263 2 Grommet, 3/4” x 3/16” x 1 3/8” x 1/2”
29. 16771 8 Nut, Nylok, Hex 5/16”
30. 1651 8 Washer, Flat 5/16”
31. 50289P 2 Bulkhead
32. 50054P 2 Cover, Hydraulic
33. 964937 1 Hose, Hydraulic 1 x 13 1/2”
(Oil tank to gear pump inlet)
34. 964934 1 Hose, Hydraulic 3/4 x 81”
(Gear pump outlet to hydraulic valve)
35. 964929 1 Hose, Hydraulic 3/4 x 31 5/16” (Filter outlet to tank)
36. 964936 1 Hose, Hydraulic 3/4 x 97 7/8” (Cooler outlet to filter inlet)
37. 964931 1 Hose, Hydraulic 3/4 X 27 15/16”
(Hydraulic valve to cooler)
38. 964933 1 Hose, Hydraulic 3/8 x 66 11/16” (Front bulkhead to oil tank)
39. 964927 1 Hose, Hydraulic 1/2 x 50 11/16” (Hydraulic valve to cylinder)
40. 964928 1 Hose, Hydraulic 1/2 x 65 11/16”
(Hydraulic valve to cylinder)
41. 964935 2 Hose, Hydraulic 3/4 x 123” (Hydraulic valve to front bulkhead)
42. 964932 2 Hose, Hydraulic 3/4 x 107” (Shakerhead to rear bulkhead,
Conveyor motor union to rear bulkhead)
43. 966030 1 Hose, Hydraulic 3/8 x 106” (Front bulkhead to rear bulkhead)
44. 966029 2 Hose, Hydraulic 3/4 x 151 1/4” (Front bulkhead to rear bulkhead)
45. 966034 1 Hose, Hydraulic 3/8 x 168 1/2”
(Shakerhead motor to conveyor motor)
46. 966033 2 Hose, Hydraulic 3/4 x 162 3/8” (Conveyor motor to union)
47. 31671 1 Union
48. 19233 2 Connector
49. 50293 1 Motor, Gear 5 HP 2000 PSI
50. 49241 1 Tee, Branch
51. 19238 1 Connector
52. 44731 1 Adapter, Reducer
53. 50428 1 Elbow, 90º
* Items not shown in diagram

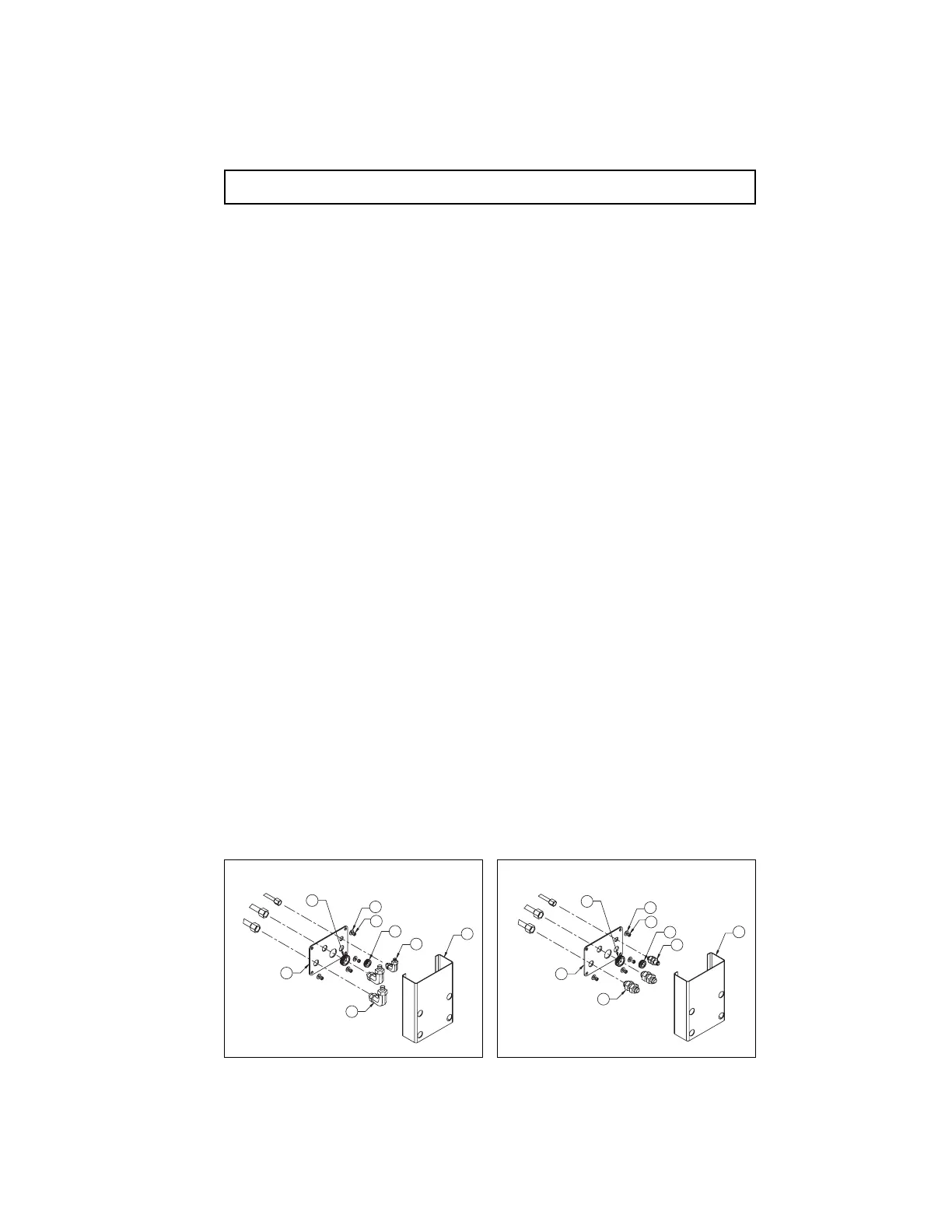

HYDRAULIC CIRCUIT W/CONVEYOR 7.7.2 (Continued)
