MEC 2 MICROPROCESSOR ENGINE/GENERATOR CONTROLLER
PM056 Rev 6 05/10/15 Thomson Technology
12
11.5 in
7.5 in
TOP
C
C
CUTOUT
9 HOLES
1/4" DIAMETER
4 STUDS #8/32
1/4"
1/4"

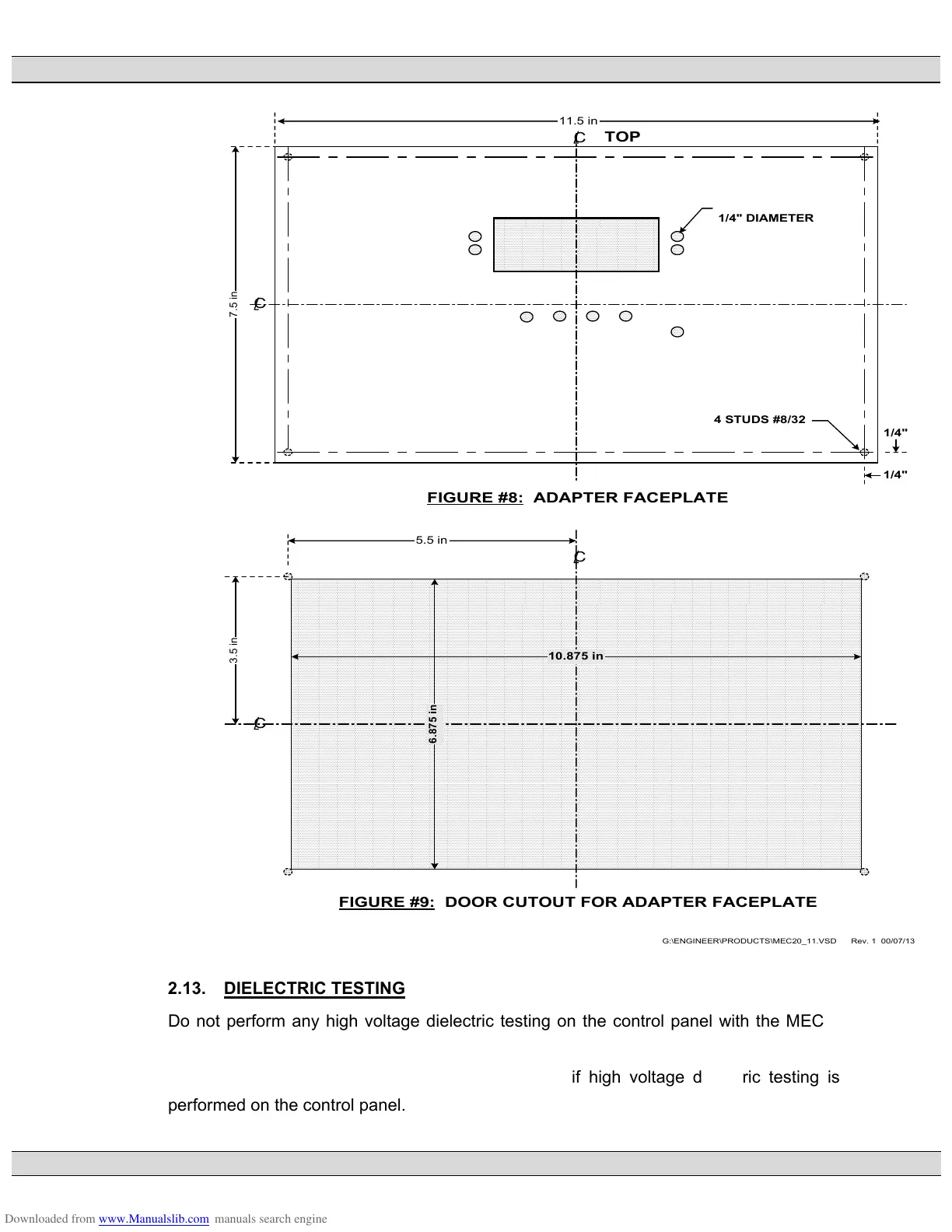

FIGURE #8: ADAPTER FACEPLATE
G:\ENGINEER\PRODUCTS\MEC20_11.VSD Rev. 1 00/07/13
5.5 in
3.5 in
C
C
FIGURE #9: DOOR CUTOUT FOR ADAPTER FACEPLATE
10.875 in
6.875 in
2.13. DIELECTRIC TESTING
Do not perform any high voltage dielectric testing on the control panel with the MEC 2
connected in the circuit as serious damage will occur to the controller. All AC control
fuses connected to the MEC 2 must be removed if high voltage dielectric testing is
performed on the control panel.
