MEC 2 MICROPROCESSOR ENGINE/GENERATOR CONTROLLER
PM056 Rev 6 05/10/15 Thomson Technology
36

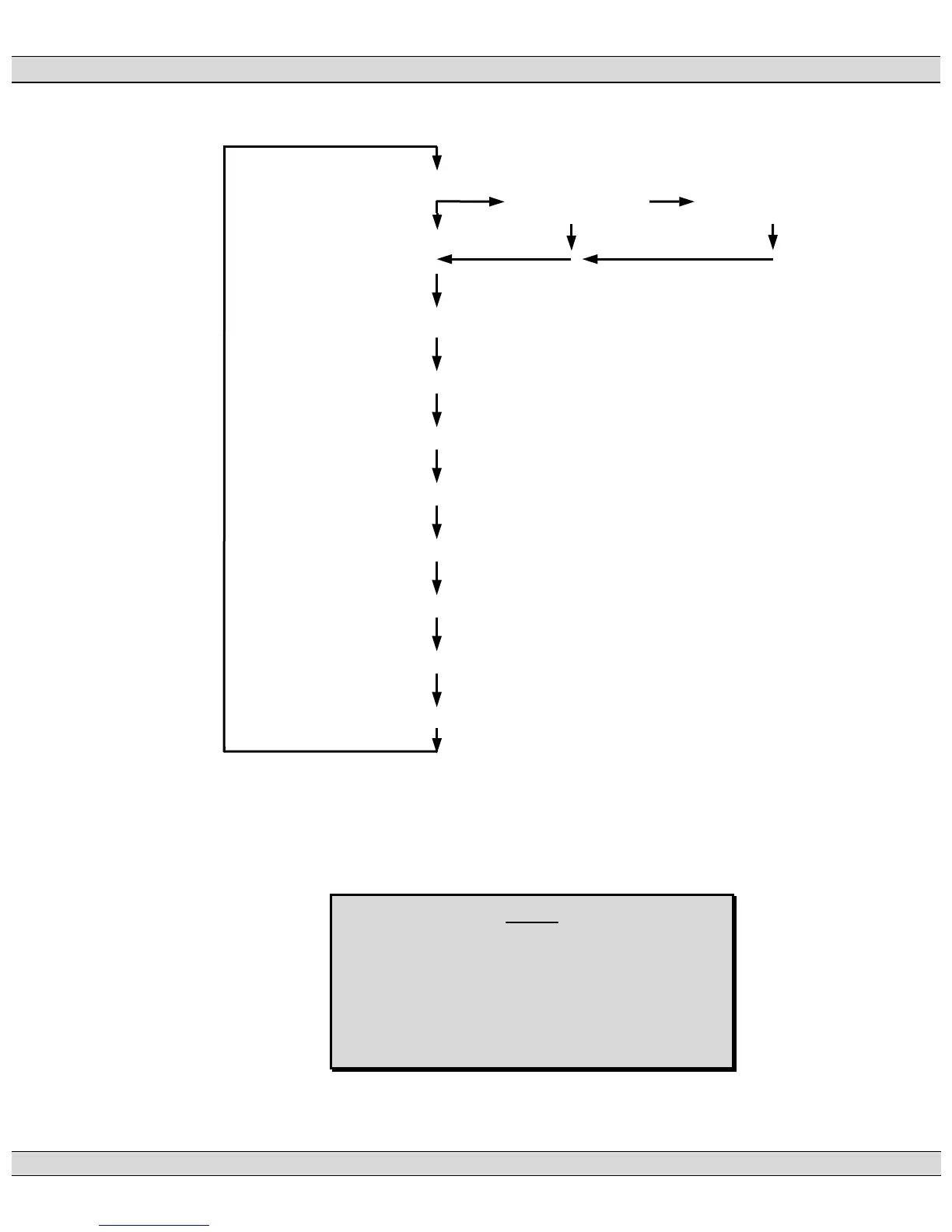

OPERATING STATUS TIMER COUNTDOWN
FAULT DISPLAY FAULT DISPLAY
(Multiple Faults)
GENERATOR METERING (Average)
GENERATOR PHASE VOLTAGES
GENERATOR LINE TO NEUTRAL VOLTAGES
GENERATOR PHASE CURRENTS
GENERATOR KVA
GENERATOR FREQUENCY/HOURMETER
BATTERY VOLTAGE/ENGINE SPEED (TACH)
ENGINE TEMPERATURE/OIL PRESSURE
PROGRAM MENU
8.2.1. OPERATING STATUS MENU
The operating status menu provides the operator with detailed information as to
the status of the engine-generator set.
NOTE:
The operating status screen may be momentarily
replaced with a time delay countdown screen when
a start or stop sequence is initiated. The display
will automatically return to the previous menu
following expiry of the timing sequence.
