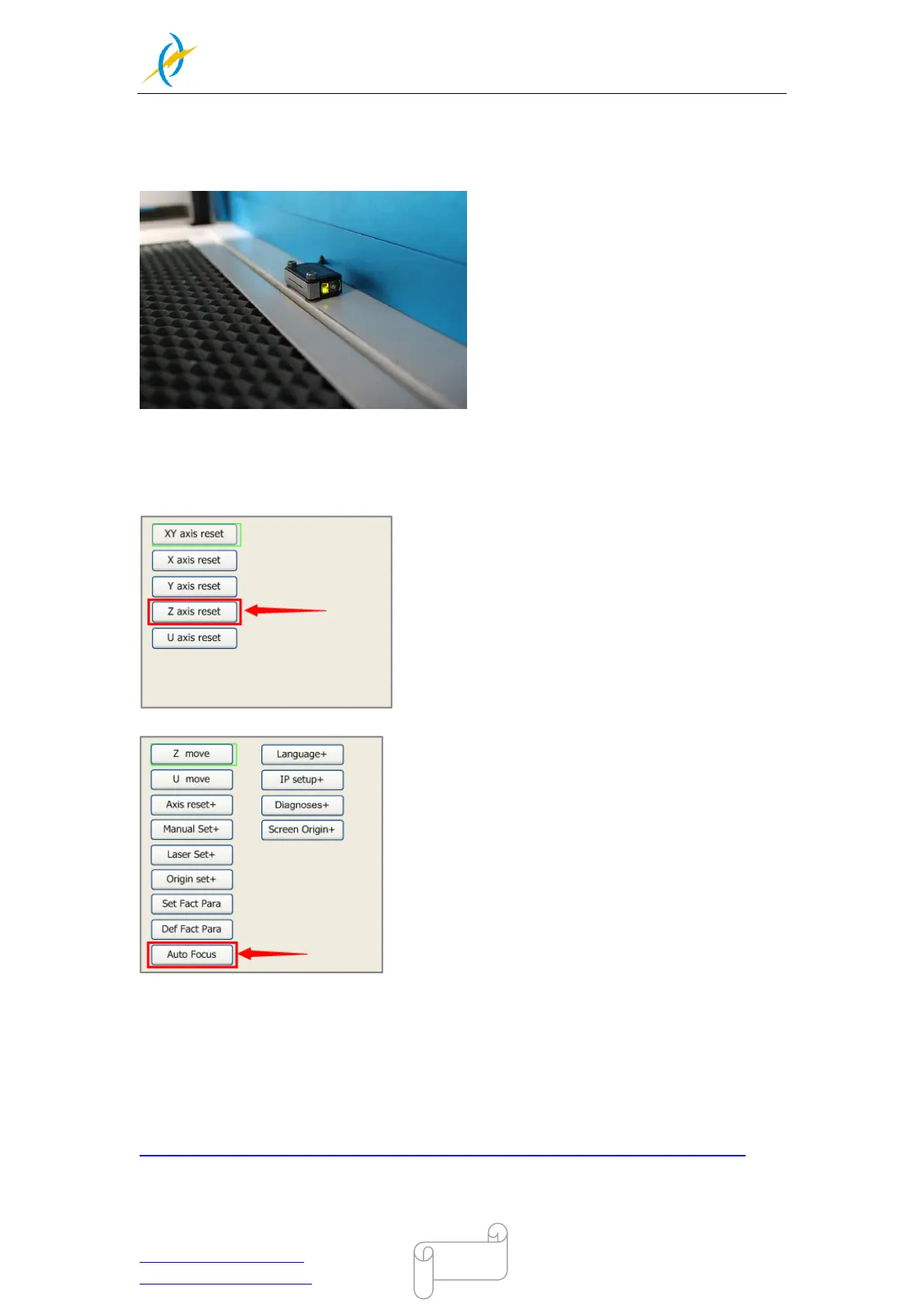

2) If there’s Auto Focus function for your machine like below, you can adjust the focus by
auto.
1. Reset Z-axis.(Z-axis will move up until touch the Auto focus switch, here the coordinate:
0,0 ) please refer to Pic 1.
2. Select “Auto focus” on display panel, then the table will auto focus directly, please refer
to pic 2.
1
2
PS: please do not use “auto focus” function while laser head
is HR laser head or 4’’ laser head.
Also you can refer to the video of how to use auto focus in our website：
http://www.thunderlaser.com/how-to-use-your-laser-machine/how-to-use-auto-focus.html
