15

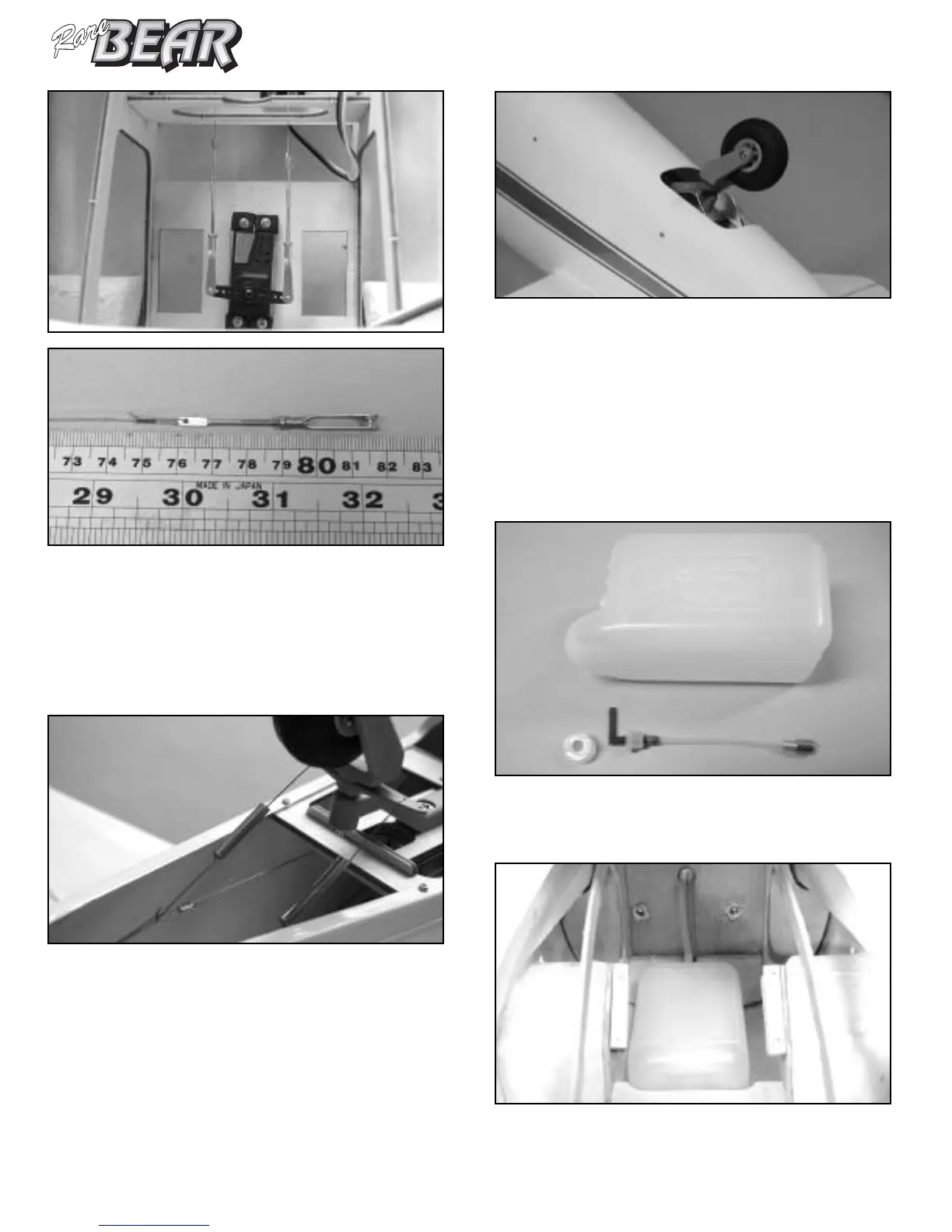

47. Remove the masking tape and install the rudder servo. Do
the same procedure to install the links on both two cables.
The only thing you have to notice is trying to adjust the
wire so that the clevis will reach the servo horn outmost
hole just right.The length of Pull-Pull Wire (pin to pin of
the clevises) is around 32 1/8”(81.5cm) in length.
48. Install the tail gear spring, link one end to the threaded
rod and link the other end to the steering arm of the tail
gear. You may adjust the two-spring tension by threading
the threaded rod or clevis and making sure the tail gear is
in line with Rudder. Adjust the threaded end at the servo
end to make sure both rudder and tail gear are straight and
get better tension of the wires.
FUEL TANK
49.Locate the bottom tail cover,position it in place then drill
six 1/16"(1.5mm) holes. Remove the cover, get six small
plywood doublers and glue them inside the fuselage at the
holes area. It might need to sand the doubler to adapt to
the curve surface.Drill the holes on doublers then secure
the bottom tail cover with 2x8mm washer wood screws.
Fuel Tank
50.Locate the fuel tank and its accessories. Assemble the tank
as shown.
51. Install the fuel tank in place, connect the fuel lines and
exit from the firewall for enough length to carb and
muffler.
