THUNDER TIGER TTR4571 User Manual

6
PARTS CHECK LIST
Anti Vibration Engine Mount
Mounting Beam(2)
T Washer(8)
Rubber(8)
Blind Nut(4)
5 x 40mm Socket Screw(4)
Hex Wrench(1)
Eng Mounting Screw 6/32 x 20mm(4)
4x20mm(4)
Fuel Tank
Silicone Tube(1)
Straight Nipple(1)
90-degree Nipple(1)
Crank Weight(1)
Fuel Stopper(1)
Fuel Cap(1)
Tank(1)
Fuel Line
Retract Servo Link
Retract Servo Link(2)
Pushrods(2)
E Clip(2)
M2 Nut(2)
Control Horn
Control Horn(2)
Backplate(2)
M2 Nut(4)
2 x22mm Screw(4)
Retract Decoration
Retract Door(L/1,R/1)
Wheel Well(L/1, R/1)
Collar(2)
M2 Nut(2)
Lower Door Retainer(2)
Pushrod Coupler(2)
Clevis(2)
3x3mm Set Screw(8)
Upper Door Retainer A(2)
Upper Door Retainer B(2)
Wheel Axel(2)
Pushrod(2)
2x5mm Wood Screw(6)
Wheel
Wheel(2)

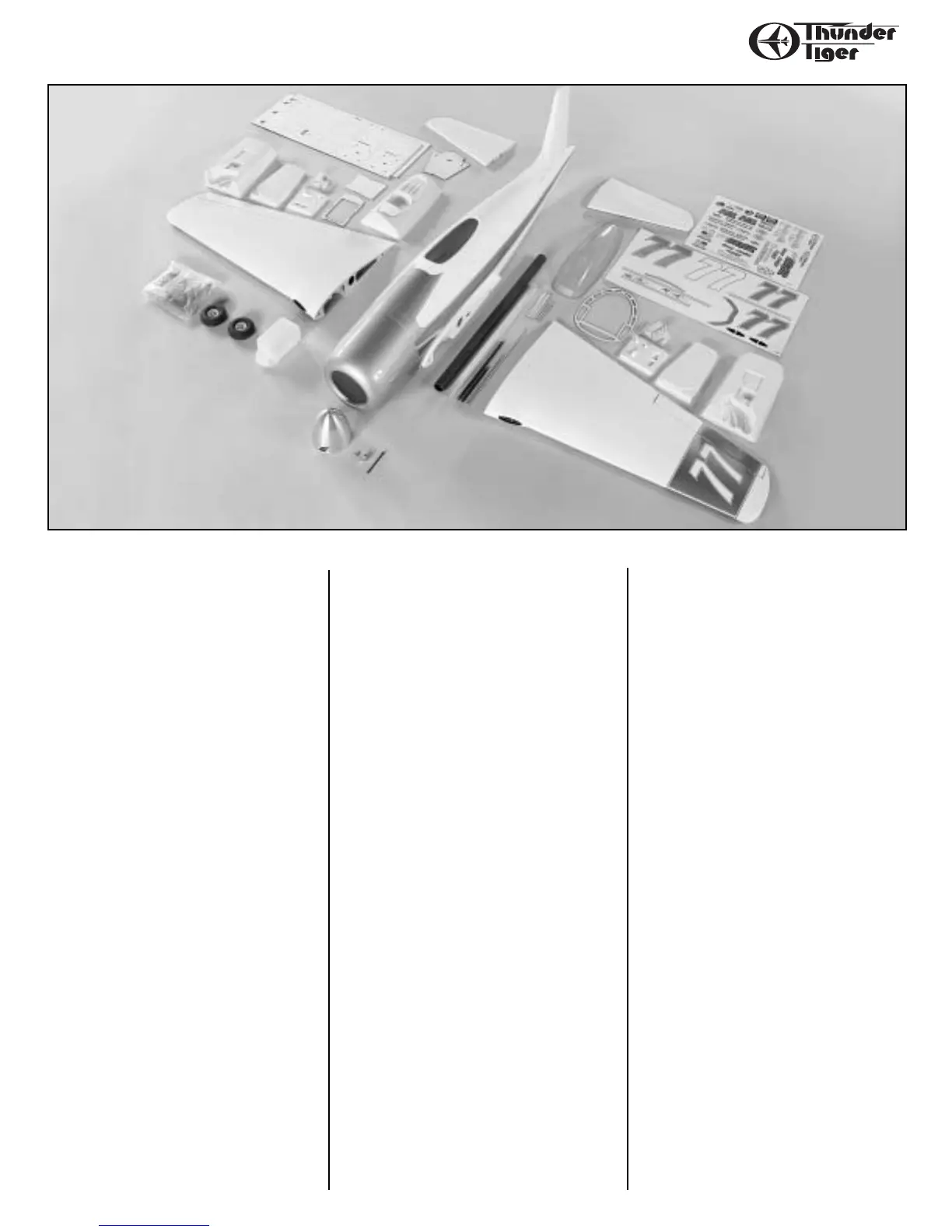

Kit Contents:
FRP Fuselage
FRP Fuselage(1)
Rudder(1)
FRP Opening Cover(1)
FRP Tail Cover(1)
Doubler(24)
CA Hinge(2)
2x8mm Washer Wood Screw(22)
2.3x12mm Washer Wood Screw(6)
Rubber Band(1)
Plywood
Plywood Parts(A)
Plywood Parts(B)
Plywood Parts(C)
Canopy & Cockpit
Canopy(1)
Cockpit(1)
2x5mm Wood Screw(4)
Cowling
Cowling(1)
2x8mm Washer Wood Screw(6)
Main Wing
Left Wing(1)
Right Wing(1)
FRP Wing Joiner Tube(1)
Air Cooling Inlet(2)
CA Hinge(6)
Dowel(4)
Aileron Servo Case(L/1,R/1)
2.3x12mm Washer Wood Screw(8)
3x15mm Wood Screw(2)
3x8mm Flat Head Wood Screw(8)
Horizontal Tail
Right H.T.(1)
Left H.T.(1)
FRP Tube(1, S)
FRP Tube(1,L)
CA Hinge(4)
Aluminum Spinner (3-blade)
Al.Spinner(3-blade,1)
Backplate(1)
Bushing(1)
Adaptor(1)
Spinner Bolt(1)
Scale Tail Gear
Blind Nut(2)
Tail Gear(1)
4x20mm Flat Head Screw (2)
Spring (2)
E Clip(1)
Steering Shaft(1)
Steering Fork(1)
2.6mm x 26mm Flat Head Screw(1)
Tail Wheel(1)
Tire(1)
Plastic Washer(2)
Wheel Spacer(1)
Pushrod Set
Throttle Pushrod(1)
Z-Bend Aileron Pushrod(2)
Clevis(2)
M2 Nuts(2)
Elevator Linkage Set
Elevator Torque Rod(L/1, R/1)
Elevator Wood Pushrod(1)
Pushrod End Retainer(1)
Torque Rod Link(2)
Clevis(3)
M2 Nut(3)
Threaded Pushrod(3)
Rudder Linkage Set
Brass Tube(4)
Clevis(4)
Threaded End(4)
M2 Nut(4)
Tail Gear Collar(1)
Hinge(2)
Wire(1)
Steering Horn(1)
Rudder Torque Rod(1)
3x3mm Set Screw(1)
Decals
Decal(A)
Decal(B)
EZ Connector
EZ Connector(1)
M2 Nut(1)
3x3mm Set Screw(1)
M2 Wahser(1)
