WING ASSEMBLY
Wing Assembly

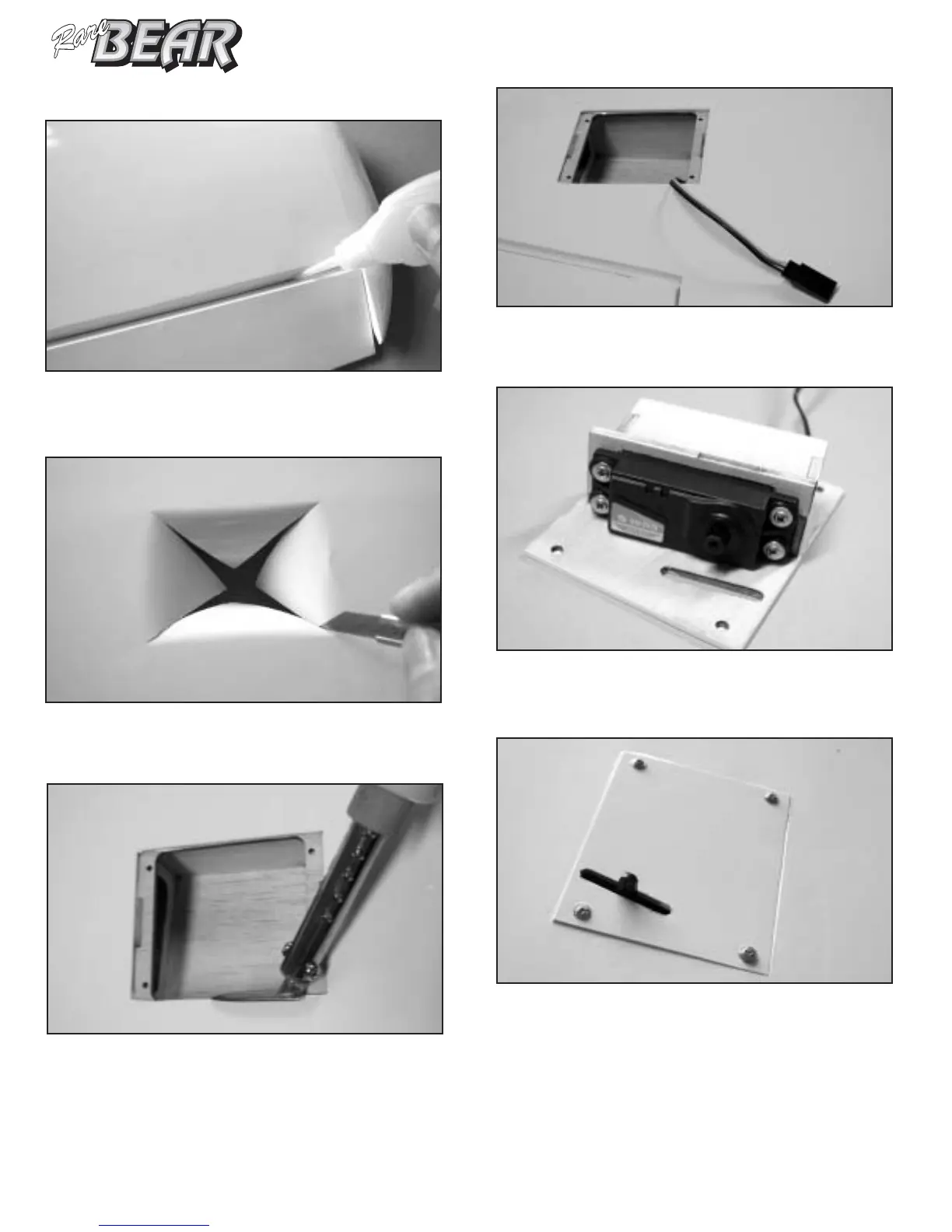

1. CA the aileron in place,make sure the hinges are centered
then apply CA at both sides. Make sure aileron is firmly
glued.
2. Locate the aileron servo well then use a hobby knife to cut
an “X”.
3. Use a sealing iron to tack down the covering inside the
servo well.Trim the excess covering away.
4. Thread the servo extension wire through the wing panel.It
requires 24" long extension wire.
5. Locate the servo case / hatch cover; secure the aileron
servo as shown.
6. Install the straight servo horn,next plug the servo wire to
CH1, turn on the transmitter and receiver. Activate the
Flapron function, set your servo arm in the center neutral
position and make sure the direction is correct.
Secure the servo case in place with four 2.3x12mm Washer
Wood Screws at four corners where already has holes.Make
sure servo case is secured firmly and servo arm exit slot is
perpendicular to the trailing edge.
